8-2178711-4

Description
14P,FOB,SMD,P&P, MICRO-MATCH VALUE LINE
CategoryThe connector    The connector
File Size2MB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

8-2178711-4 Online Shopping

Suppliers Part Number Price MOQ In stock
8-2178711-4 - - View Buy Now

8-2178711-4 Overview

14P,FOB,SMD,P&P, MICRO-MATCH VALUE LINE

8-2178711-4 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Samacsys Description14P,FOB,SMD,P&P, MICRO-MATCH VALUE LINE
Other featuresWITH VACCUME TAPE
body width0.205 inch
subject depth0.209 inch
body length0.78 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact styleBELLOWED TYPE
Dielectric withstand voltage500VAC V
Durability8 Cycles
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYAMIDE
Manufacturer's serial number2178711
Plug contact pitch0.05 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
PCB contact patternSTAGGERED
PCB contact row spacing4.4958 mm
polarization keyPOLARIZED HOUSING
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts14
4

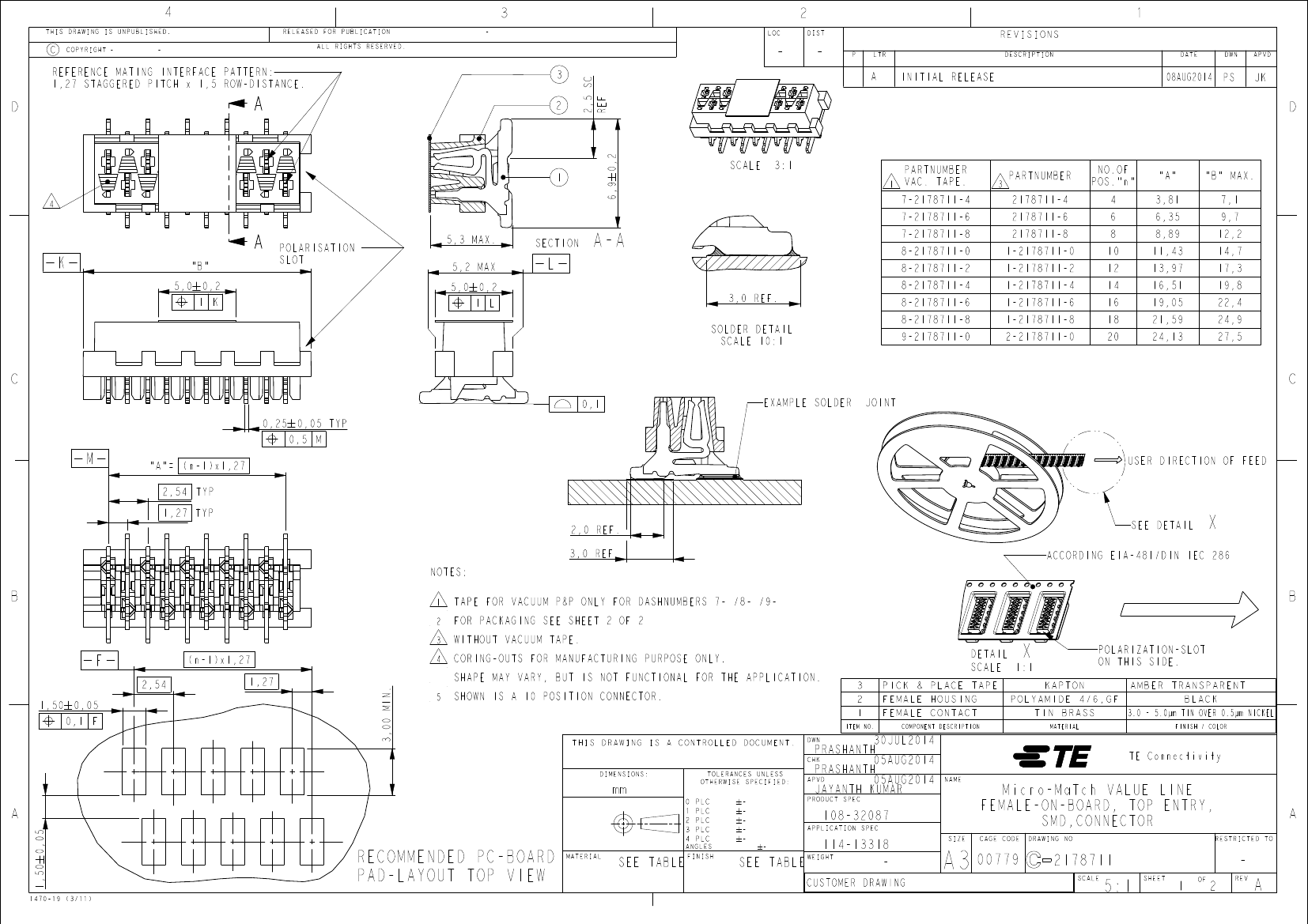

THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
-
3
LOC
2
DIST
1
C
COPYRIGHT -
-
D
2,5 SC
REF
REFERENCE MATING INTERFACE PATTERN:
1,27 STAGGERED PITCH x 1,5 ROW-DISTANCE.
3
2
-
-
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
A
INITIAL RELEASE
08AUG2014
PS
JK
D
6,9 # 0,2
1
4
SCALE
3:1
1
PARTNUMBER
VAC. TAPE.
7-2178711-4
7-2178711-6
7-2178711-8
8-2178711-0
8-2178711-2
8-2178711-4
8-2178711-6
8-2178711-8
9-2178711-0
3
PARTNUMBER
2178711-4
2178711-6
1-2178711-0
1-2178711-2
1-2178711-4
1-2178711-6
1-2178711-8
2-2178711-0
2178711-8
NO.OF
POS."n"
4
6
10
12
14
16
18
20
8
"A"
3,81
6,35
11,43
13,97
16,51
19,05
21,59
24,13
8,89
"B" MAX.
7,1
12,2
14,7
17,3
19,8
22,4
24,9
27,5
9,7
K
"B"
5,0 0,2
1 K
POLARISATION
SLOT
5,3 MAX.
5,2 MAX
5,0 0,2
1 L
SECTION
L
A-A
3,0 REF.
SOLDER DETAIL
SCALE 10:1
C
0,1
0,25 0,05 TYP
0,5 M
EXAMPLE SOLDER
JOINT
C
M
"A"= (n-1)x1,27
2,54 TYP
1,27 TYP
2,0 REF.
3,0 REF
NOTES:
USER DIRECTION OF FEED
SEE DETAIL
X
ACCORDING EIA-481/DIN IEC 286
B
1
2
3
TAPE FOR VACUUM P &P ONLY FOR DASHNUMBERS 7- /8- /9-

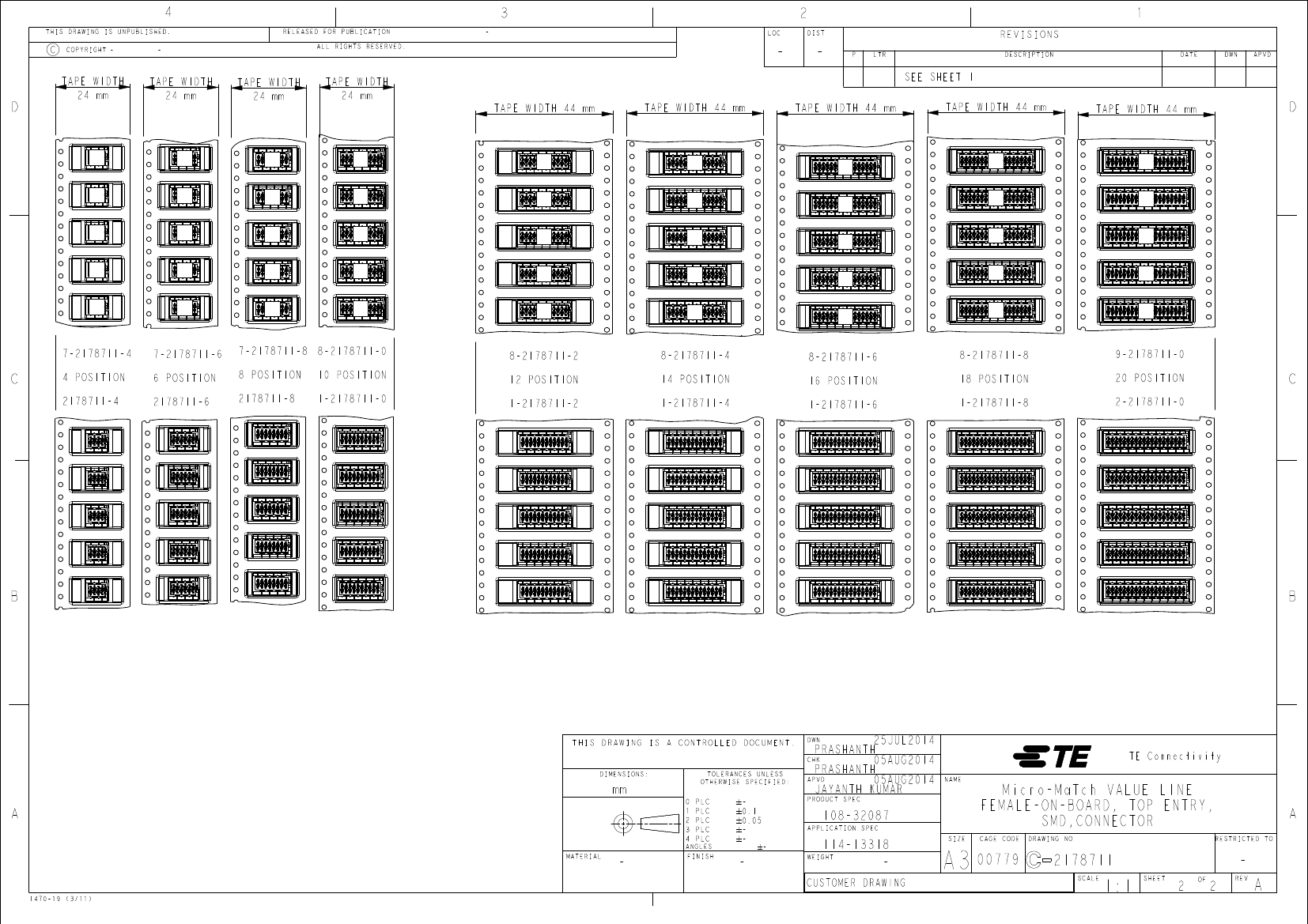

FOR PACKAGING SEE SHEET 2 OF 2
WITHOUT VACUUM TAPE.
CORING-OUTS FOR MANUFACTURING PURPOSE ONLY.
SHAPE MAY VARY, BUT IS NOT FUNCTIONAL FOR THE APPLICATION.
SHOWN IS A 10 POSITION CONNECTOR.
2
1
ITEM NO.
B
F
2,54
1,50 0,05
0,1 F
(n-1)x1,27
3,00 MIN.
1,27
4
DETAIL
SCALE 1:1
3
FEMALE HOUSING
FEMALE CONTACT
COMPONENT DESCRIPTION
X
POLARIZATION-SLOT
ON THIS SIDE.
KAPTON
AMBER TRANSPARENT
3.0 - 5.0µm TIN OVER 0.5µm NICKEL
FINISH / COLOR
5
PICK & PLACE TAPE
POLYAMIDE 4/6,GF
TIN BRASS
MATERIAL
BLACK
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
1,50 0,05
RECOMMENDED PC-BOARD
PAD-LAYOUT TOP VIEW
0
1
2
3
4
MATERIAL
ANGLES
PLC
PLC
PLC
PLC
PLC
SEE TABLE
FINISH
114-13318
WEIGHT
-
SEE TABLE
-
-
-
-
-
-
30JUL2014
PRASHANTH
CHK
05AUG2014
PRASHANTH
APVD
05AUG2014
JAYANTH KUMAR
DWN
PRODUCT SPEC
APPLICATION SPEC
TE Connectivity
NAME
108-32087
SIZE
CUSTOMER DRAWING
A3
00779
CAGE CODE
Micro-MaTch VALUE LINE
FEMALE-ON-BOARD, TOP ENTRY,
SMD,CONNECTOR
DRAWING NO
A
RESTRICTED TO
2178711
SCALE
1470-19 (3/11)
5:1
SHEET
1
OF
2
REV
-
A
