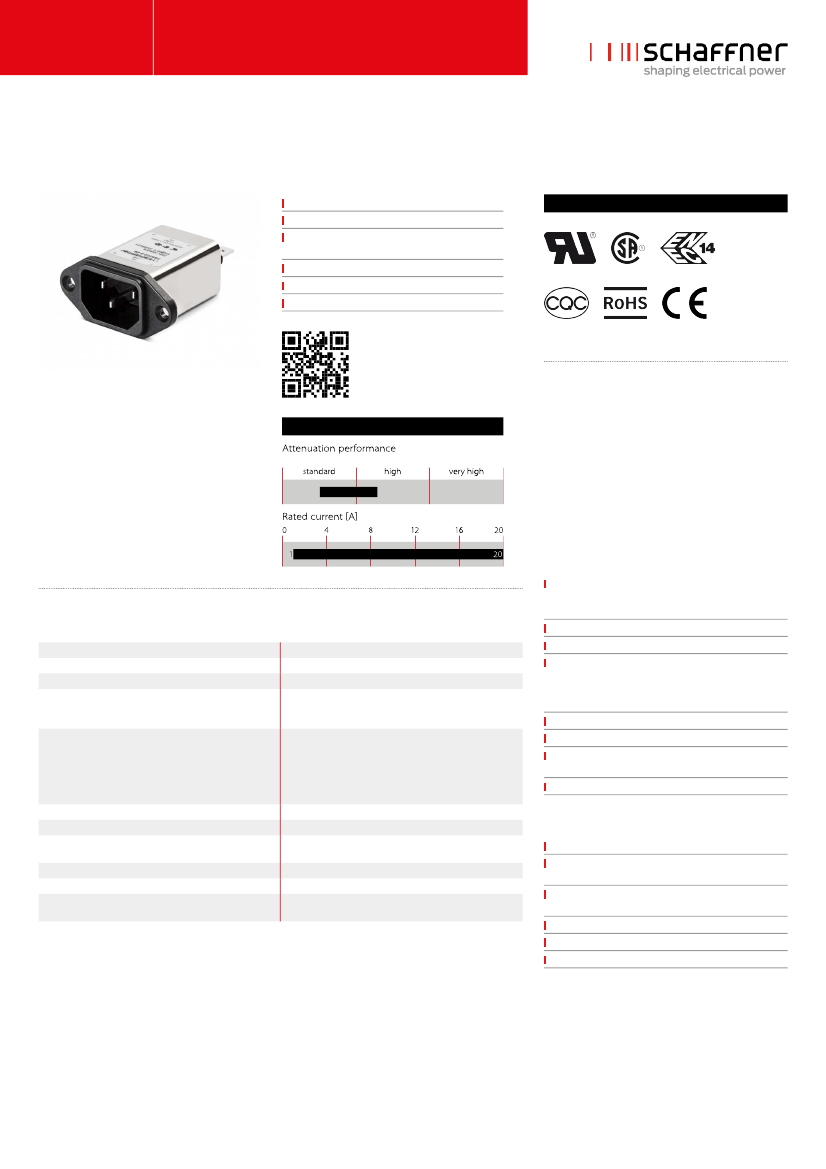

DATASHEET
IEC Inlet Filters FN 9222
General Performance IEC Inlet Filter
Rated currents up to 20 A
Excellent performance/size ratio
Optional medical versions (B type) according to
IEC/EN 60601-1
Snap-in versions (S and S1 type)
Hot inlet versions (HI type)
Optional overvoltage protection (Z type)
Approvals
(CQC except HI-types)
Performance indicators
The FN 9222 IEC inlet filter combines an IEC inlet and
mains filter with excellent filter attenuation in a small
form factor. Choosing the FN 9222 product line
brings you the rapid availability of a standard filter
associated with the necessary safety acceptances.
Standard IEC connector filters are a practical solution
helping you to pass EMI system approval in a short
time. A wide selection on amperage ratings, output
connections, mounting possibilities and filters for
medical applications are designed to offer you the
desired solution.
Features and benefits
Exceptional conducted attenuation performance,
based on chokes with high saturation resistance
and excellent thermal behavior

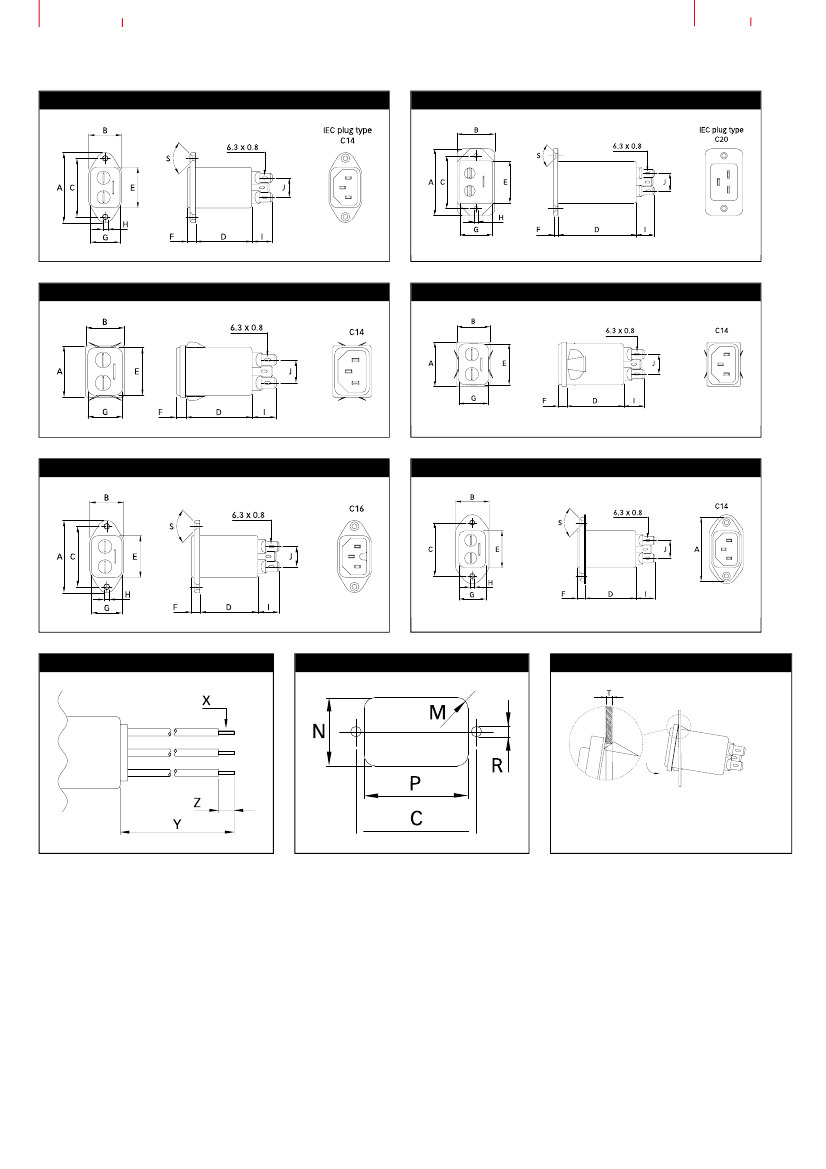

Rear/front or snap-in mounting
250 VAC, 50/60 Hz
dc to 400 Hz
1 to 20 A @ 50°C
1 to 10 A (ENEC, CQC)
16 A (ENEC, CQC) for 16 and 20 A types
1 to 20 A (UL, CSA)
P –> PE 2000 VAC for 2 sec (standard types)
P –> N 250 VAC for 2 sec (all Z types)
P –> N 1000 VAC for 2 sec (1 to 10 A types, not Z types)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 1100 VDC for 2 sec (16 and 20 A types, not Z
types)
IP 40 according to IEC 60529
-25°C to +85°C (25/85/21)
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (X to XX A,
not Z types)
UL 94 V-2 or better
2 kV, IEC 61000-4-5
≤15 A: 3,040,000 hours
≥16 A: 2,256,000 hours

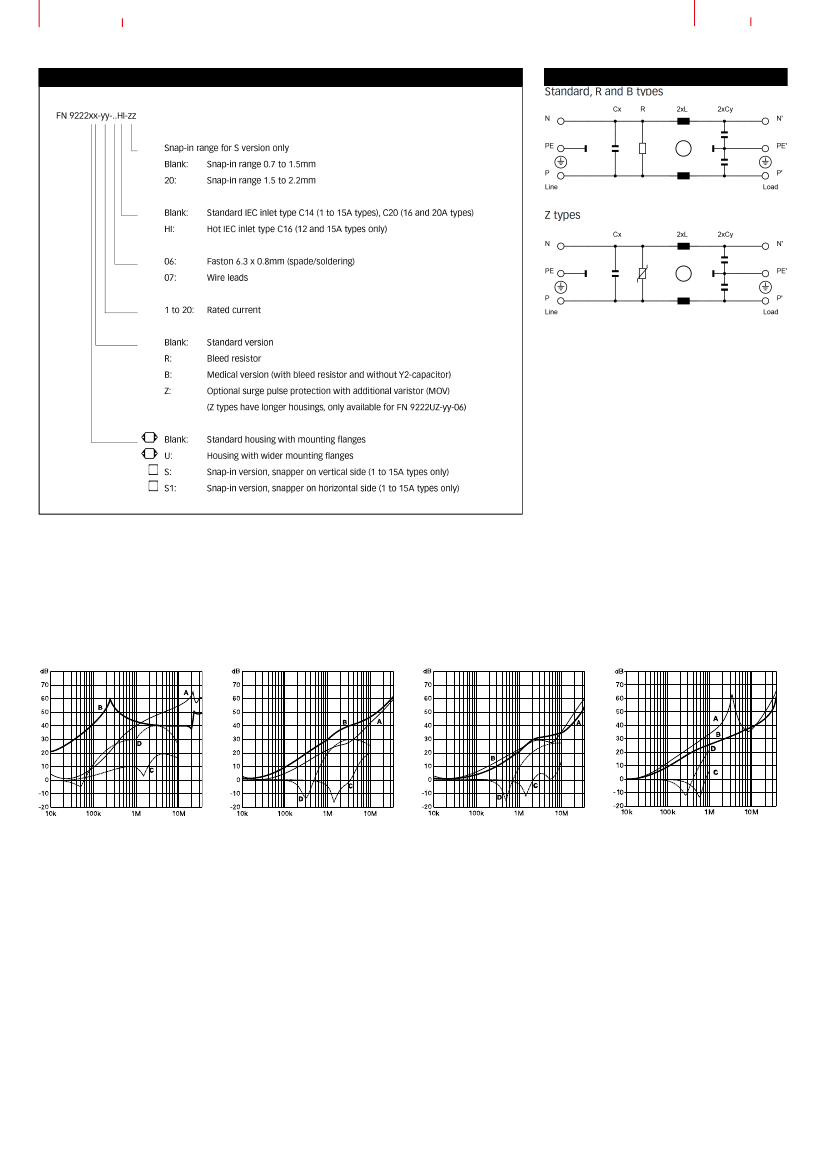

Technical specifications
Maximum continuous operating voltage
Operating frequency
Rated currents
Approvals by rated current
Wide mounting flanges available
Optional medical versions (B type) comply with the
requirements of IEC/EN 60601-1 for creepage and
clearance, leakage current and high potential
testing
12 and 15 A types with hot inlet available
Optional surge pulse protection
Different output connections offering maximum
flexibility for assembly
Custom-specific versions are available on request
High potential test voltage
Protection category
Temperature range (operation and storage)
Design corresponding to
Flammability corresponding to
Surge pulse protection (optional)
MTBF @ 40°C/230 V (Mil-HB-217F)
Typical applications
Portable electrical and electronic equipment
Small to medium-sized machines and household
equipment
Single-phase power supplies, switch-mode power
supplies
Test and measurement equipment
Medical equipment
Rack mounting equipment
