384299 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 384299

Preview

384299: CategoryThe connector The connector; File Size174KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

384299 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384299	-	-	View	Buy Now

384299 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Samacsys Description	DIN41612 male 2.54mm type E160 160way ERNI 160 Way 2.54mm Pitch, Type E160 Class C1, C2, 5 Row a/b/c/d/e, Right Angle DIN 41612 Connector, Plug, Solder
body width	0.638 inch
subject depth	0.976 inch
body length	3.701 inch
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C,D,E
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	160
Base Number Matches	1

Preview

Download Datasheet

View All

2,5

-0,2

1

-0,1

e32

85,2

+0,2

e1

Stecklänge / mating length

max. 16,2

+0,2

4 x 2,54 =10,16

13,8

ESL

a32

2,54

31x2,54=78,74

max. 94

6

±0,1

3,95

0,6

3

-0,4

a1

E =

early mate, late break

/ voreilend

S = standard

4 x 2,54 (=10,16)

L = late mate, early break / nacheilend

12,7

10,2

-0,2

max. 14,6

2,54

XXXXXXX

Datum

ERNI

Anforderungsstufe

RC 2

6,4

-0,1

2,5

+0,1

date

87,5

88,9

class

Stecklänge

mating length

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S

e

d

c

b

a

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

3

+0,1

a b c d e

Anforderungsstufe 2 = 400 Steckzyklen / performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

4 x 2,54 (=10,16)

+0,1

1

±0,1

0,05

alle Löcher/

all holes

e

d

c

b

a

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

5,3

±0,1

2,54

31 x 2,54 (=78,74)

88,9

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

a

Index

18.10.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

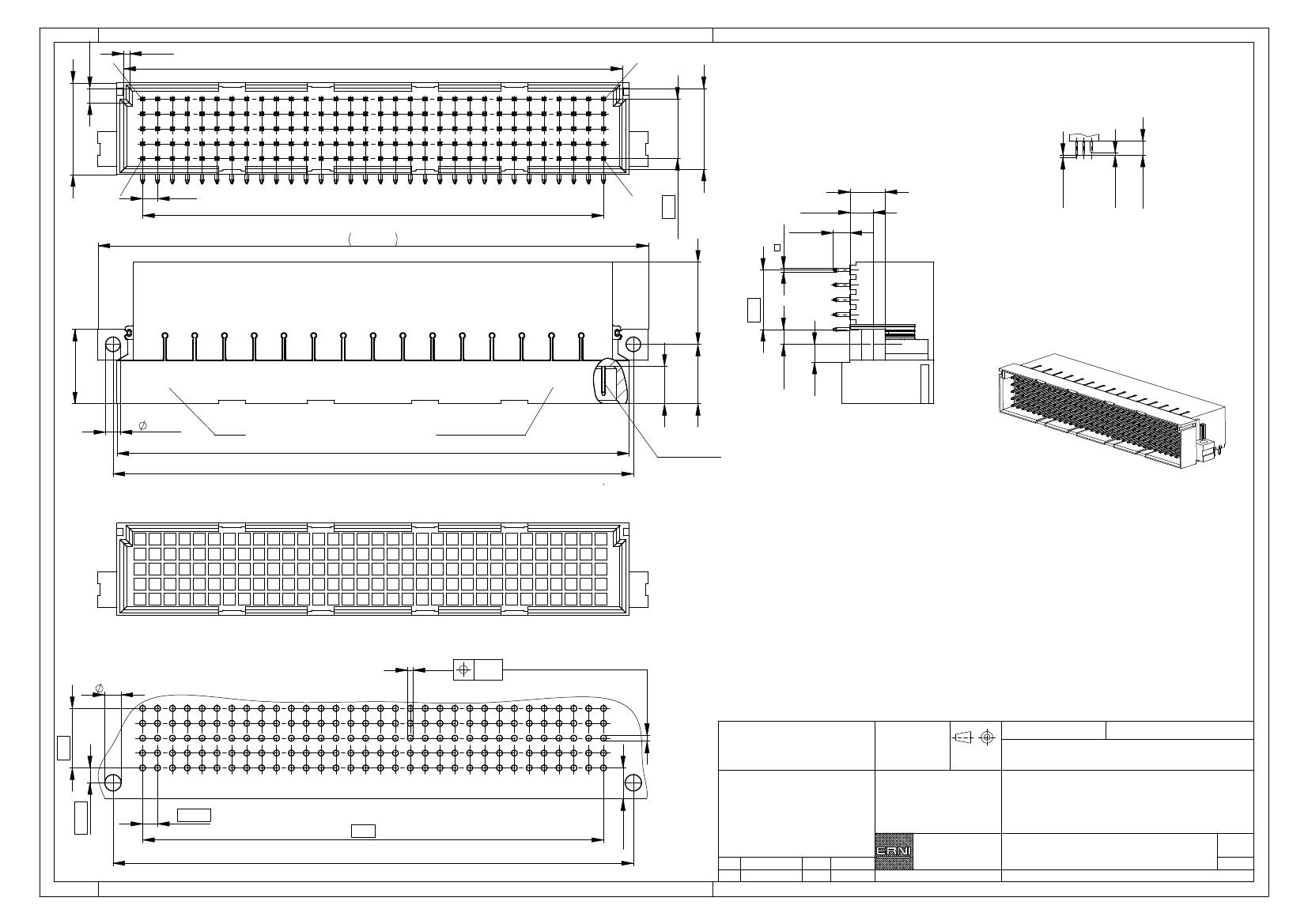

Messerleiste E160 Löt

Male Conn. E160 solder

www.ERNI.com

Class

384299

STVE

4,8

±0,2

0,8

±0,1

0,8

±0,1

I

A3
