THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

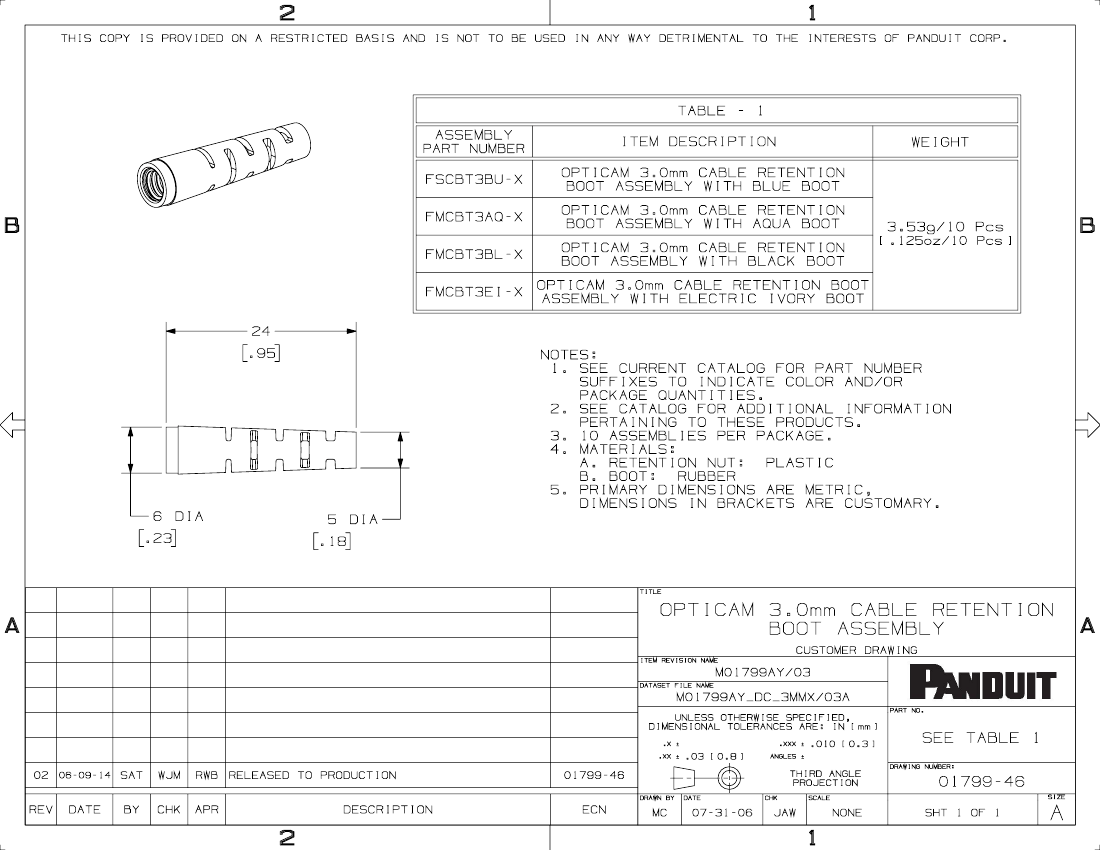

TABLE - 1
ASSEMBLY
PART NUMBER
ITEM DESCRIPTION
OPTICAM 3.0mm CABLE RETENTION
BOOT ASSEMBLY WITH BLUE BOOT
OPTICAM 3.0mm CABLE RETENTION
BOOT ASSEMBLY WITH AQUA BOOT
OPTICAM 3.0mm CABLE RETENTION
BOOT ASSEMBLY WITH BLACK BOOT
OPTICAM 3.0mm CABLE RETENTION BOOT
ASSEMBLY WITH ELECTRIC IVORY BOOT
WEIGHT
FSCBT3BU-X
B
FMCBT3AQ-X
FMCBT3BL-X
FMCBT3EI-X
24
.95
3.53g/10 Pcs
[.125oz/10 Pcs]
B
NOTES:
1. SEE CURRENT CATALOG FOR PART NUMBER
SUFFIXES TO INDICATE COLOR AND/OR
PACKAGE QUANTITIES.
2. SEE CATALOG FOR ADDITIONAL INFORMATION
PERTAINING TO THESE PRODUCTS.
3. 10 ASSEMBLIES PER PACKAGE.
4. MATERIALS:
A. RETENTION NUT: PLASTIC
B. BOOT: RUBBER
5. PRIMARY DIMENSIONS ARE METRIC,
DIMENSIONS IN BRACKETS ARE CUSTOMARY.
5 DIA
.18
6 DIA
.23
TITLE
A
OPTICAM 3.0mm CABLE RETENTION
BOOT ASSEMBLY
CUSTOMER DRAWING
ITEM REVISION NAME
A
M01799AY/03
DATASET FILE NAME
M01799AY_DC_3MMX/03A
PART NO.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.XXX
.010 [0.3]
SEE TABLE 1
DRAWING NUMBER:
.03 [0.8]
ANGLES
02
06-09-14
SAT
WJM
RWB
RELEASED TO PRODUCTION
01799-46
DRAWN BY
DATE
CHK
THIRD ANGLE
PROJECTION
SCALE
01799-46
SIZE
REV
DATE
BY
CHK
APR
DESCRIPTION
ECN
MC
07-31-06
JAW
NONE
SHT 1 OF 1
A
2
1
