390DS006M2016M3 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 390DS006M2016M3

390DS006M2016M3: DescriptionCircular MIL Spec Backshells SUB CBL SEAL RLF DC LOW STRAIGHT MED DTY; CategoryThe connector Connector bracket; File Size227KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

390DS006M2016M3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	390DS006M2016M3	-	-	View	Buy Now

390DS006M2016M3 Overview

Circular MIL Spec Backshells SUB CBL SEAL RLF DC LOW STRAIGHT MED DTY

390DS006M2016M3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

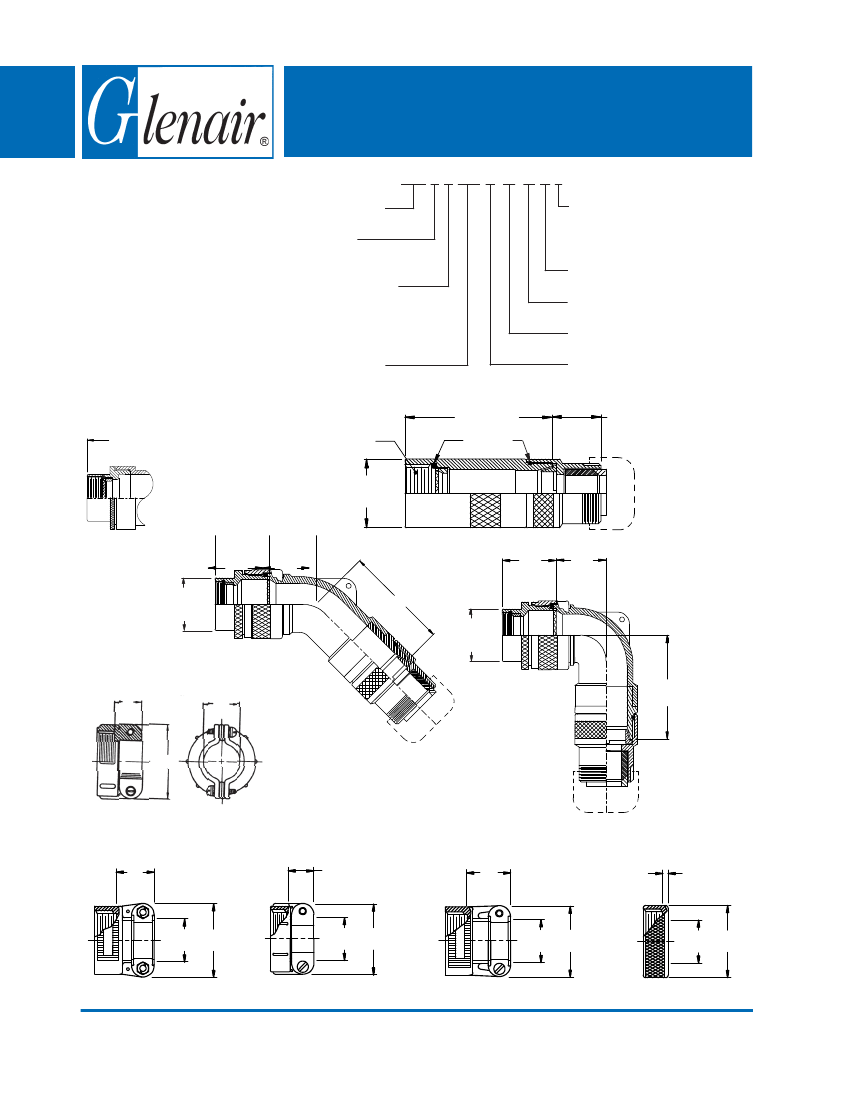

390-006

Submersible EMI/RFI Cable Sealing Backshell

with Strain Relief

Type B - Direct Coupling - Low Profile

390 F S 006 M 16 10 A 6

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (H, A, M, D, AR)

Cable Entry (Tables X, XI)

Shell Size (Table I)

Finish (Table II)

Length *

O-Rings

1.188 (30.2)

Approx.

* Length

± .060 (1.52)

Min. Order

Length 1.5 Inch

(See Note 4)

(Table III) (Table IV)

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 5

CONNECTOR

DESIGNATORS

DIRECT COUPLING

TYPE B INDIVIDUAL

AND/OR OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 4)

STYLE 2

(STRAIGHT

See Note 1)

A Thread

(Table I)

(Table III) (Table IV)

(Table I)

STYLE AR

Medium Duty

(Table XI)

F (Table IV)

(Table I)

H (Table IV)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Entry

Cable

Range

Cable

Range

Cable

Range

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 39 - Page 28
