HD34-24-23SE-059 datasheet, PDF

Datasheet> All Categories > The connector> The connector> HD34-24-23SE-059

HD34-24-23SE-059: DescriptionCircular Connector; CategoryThe connector The connector; File Size234KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

HD34-24-23SE-059 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HD34-24-23SE-059	-	-	View	Buy Now

HD34-24-23SE-059 Overview

Circular Connector

HD34-24-23SE-059 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7258591083
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	REC, 23P, AL, E, CBL CLMP BT, DRAIN,16,S
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 06:33:07
Back shell type	SOLID
body width	2 inch
subject depth	1.875 inch
body length	3.318 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	13A
Mixed contacts	NO
Installation option 2	W/STRAIN RELIEF
Installation type	PANEL
Number of connectors	ONE
Number of ports	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
polarization key	POLARIZED
Rated current (signal)	13 A
Rated voltage	250 V
Shell material	ALUMINUM ALLOY
Total number of contacts	23

Preview

Download Datasheet

View All

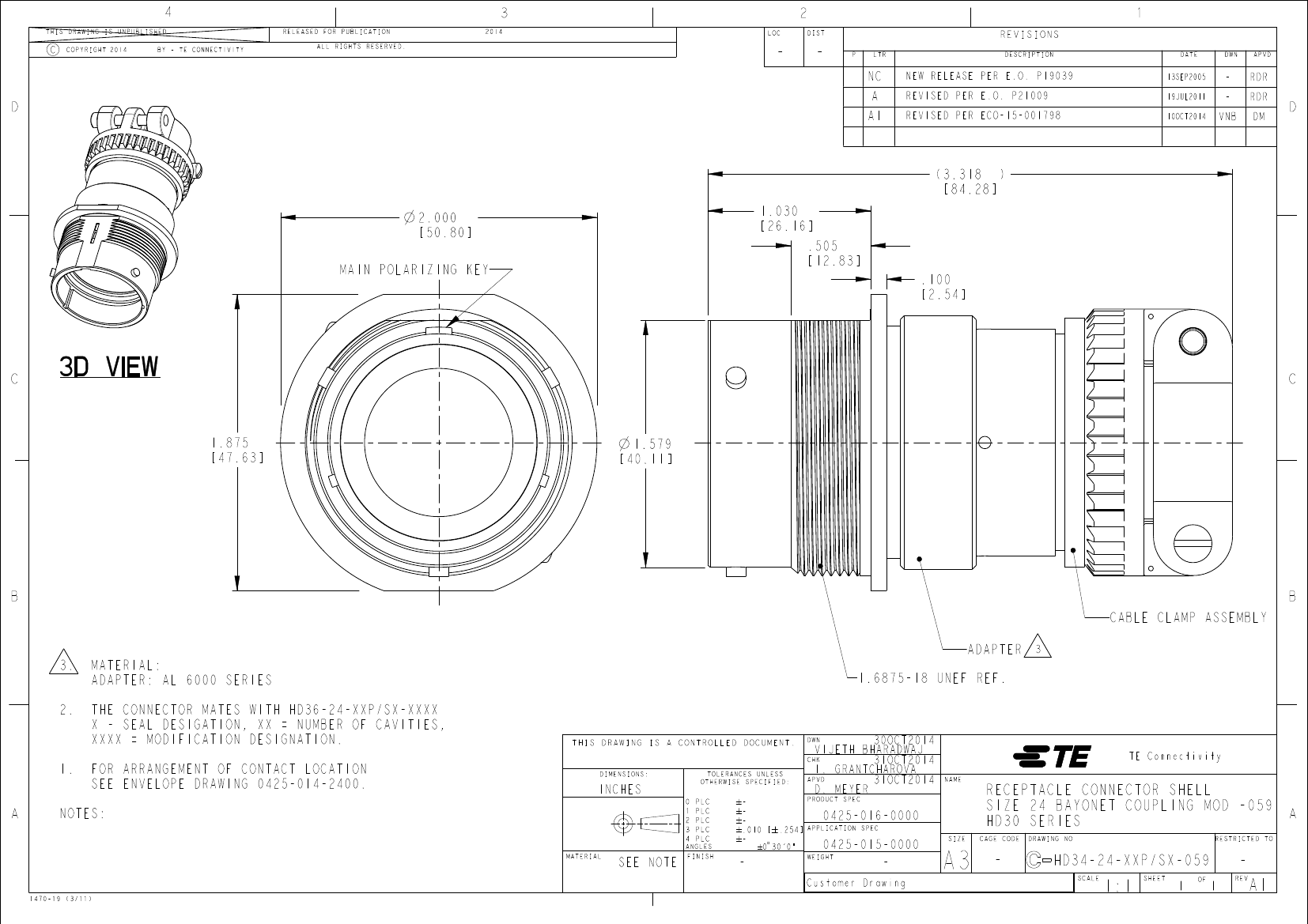

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2014

LOC

DIST

BY - TE CONNECTIVITY

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

NEW RELEASE PER E.O. P19039

REVISED PER E.O. P21009

REVISED PER ECO-15-001798

13SEP2005

19JUL2011

10OCT2014

VNB

RDR

(3.318 )

[84.28 ]

2.000

[50.80 ]

MAIN POLARIZING KEY

1.030

[26.16 ]

.505

[12.83 ]

.100

[2.54 ]

3D VIEW

1.875

[47.63 ]

1.579

[40.11]

ADAPTER

1.6875-18 UNEF REF.

CABLE CLAMP ASSEMBLY

MATERIAL:

ADAPTER: AL 6000 SERIES

THE CONNECTOR MATES WITH HD36-24-XXP/SX-XXXX

X - SEAL DESIGATION, XX = NUMBER OF CAVITIES,

XXXX = MODIFICATION DESIGNATION.

FOR ARRANGEMENT OF CONTACT LOCATION

SEE ENVELOPE DRAWING 0425-014-2400.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

INCHES

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

NOTES:

MATERIAL

ANGLES

PLC

SEE NOTE

FINISH

PRODUCT SPEC

0425-016-0000

APPLICATION SPEC

.010 [ # .254]

0425-015-0000

0 $ 30'0"

WEIGHT

30OCT2014

VIJETH BHARADWAJ

CHK

31OCT2014

I. GRANTCHAROVA

APVD

31OCT2014

D. MEYER

DWN

TE Connectivity

NAME

Customer Drawing

1470-19 (3/11)

SIZE

CAGE CODE

RECEPTACLE CONNECTOR SHELL

SIZE 24 BAYONET COUPLING MOD -059

HD30 SERIES

DRAWING NO

RESTRICTED TO

HD34-24-XXP/SX-059

SCALE

1:1

SHEET

REV
