Connector set - HC-KIT-B06-R02 - 1409684
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

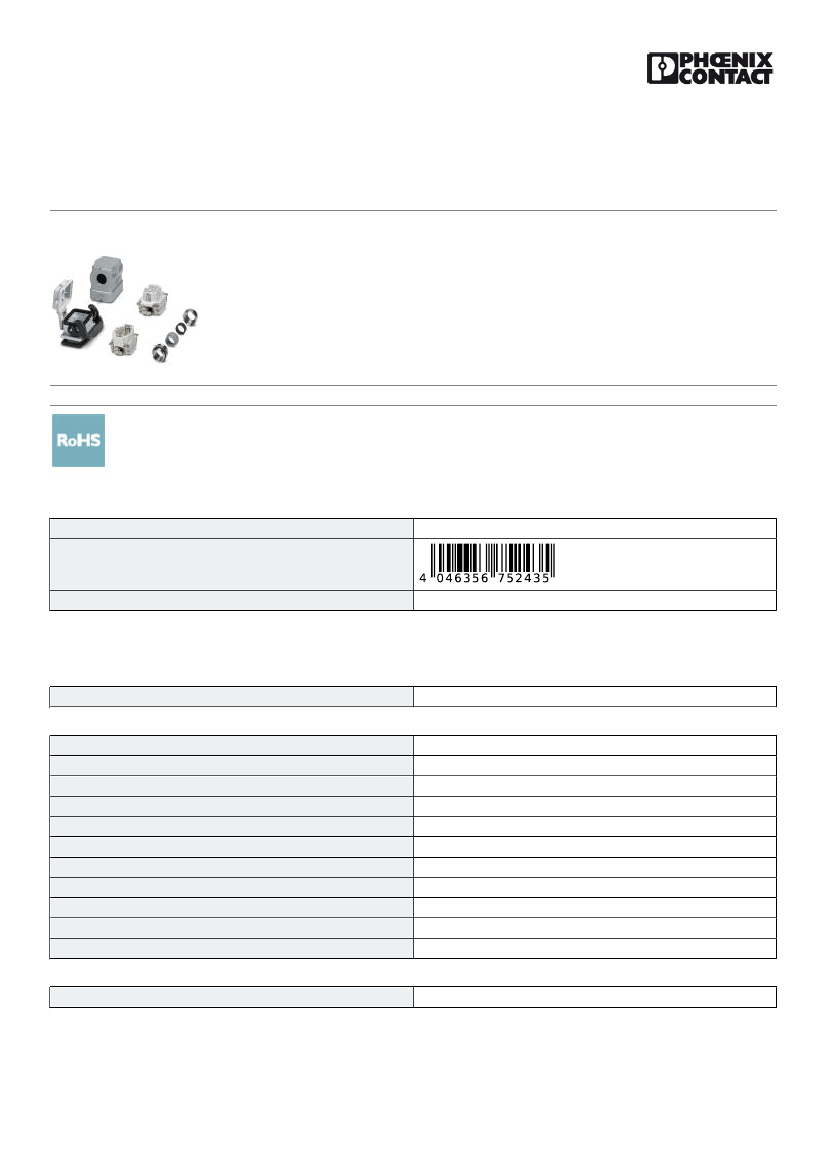

Connector set, consisting of: B6 sleeve housing and panel mounting base, 6-pos. plug and socket insert, M20
cable gland
Key Commercial Data
Packing unit
GTIN
GTIN
4046356752435
1 pc
Technical data
Dimensions
Cable diameter
9 mm ... 13 mm
General
Number of positions
Type
Rated voltage
Rated current
Connection method
Cable outlet
Degree of protection for housing
Connection method
Rated voltage (III/3)
Rated surge voltage
Rated current
6+PE
B6
500 V
16 A
Screw connection
lateral
IP65
Screw connection
500 V
6 kV
24 A
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
10/30/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1409684
Connector set - HC-KIT-B06-R02 - 1409684
Technical data
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

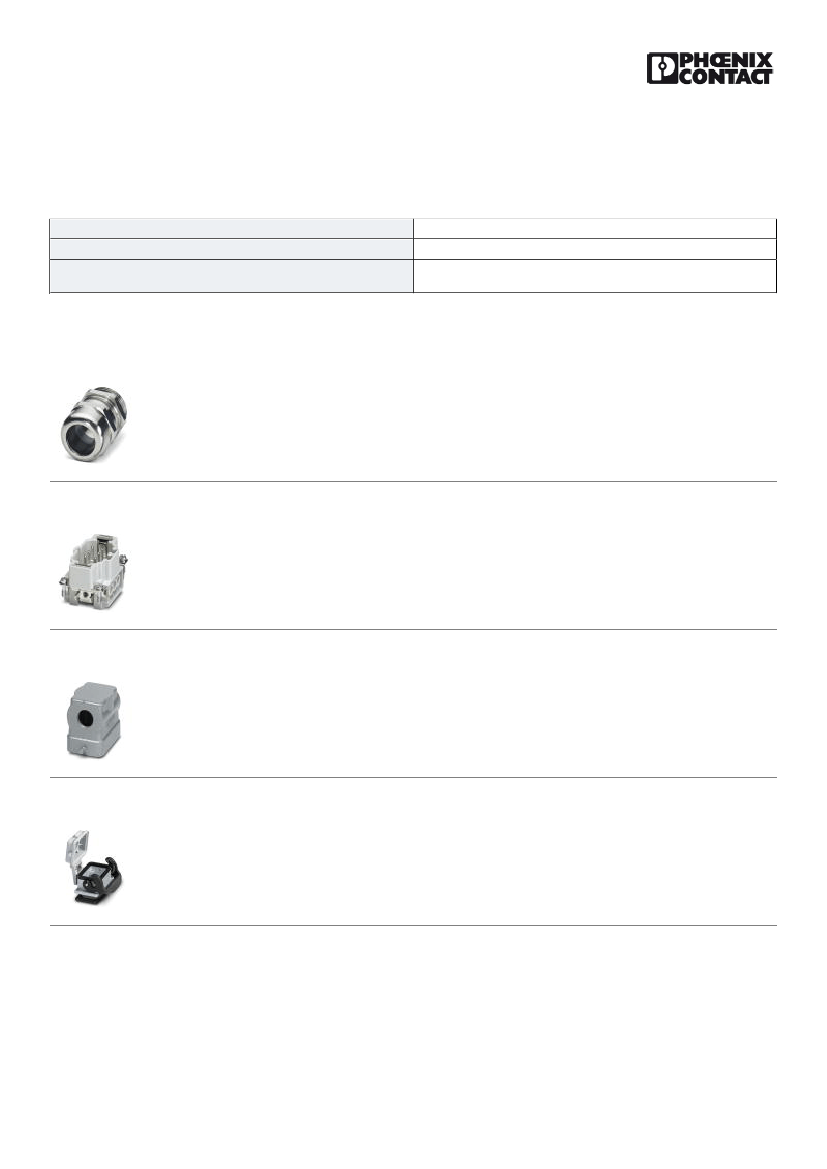

Articles in set
Cable gland - G-INS-M20-S68N-NNES-S - 1411163
Cable gland, cable gland material: Nickel-plated brass, external cable diameter 6 mm ... 12 mm, shielding: no,
connecting thread: M20 x 1.5, color: silver, with O-ring
Contact insert - HC-B 6-I-UT-M - 1648115
Contact insert, number of positions: 6+PE, size: B6, number of connections per position: 1, Pin, Screw connection,
500 V, 24 A, 0.5 mm² ... 2.5 mm², application: Power
Housing - HC-B 6-TFL-N-O1STM20S - 1460346
HEAVYCON B6 sleeve housing, for single locking latch, height: 56 mm, with 1 x M20 thread, lateral cable outlet
Housing - HC-B 6-AMLD - 1771147
HEAVYCON B6 panel mounting base, with single locking latch, height: 29 mm, with plastic cover, with flat gasket
10/30/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1409684
Connector set - HC-KIT-B06-R02 - 1409684
Articles in set
Contact insert - HC-B 6-I-UT-F - 1648128
Contact insert, number of positions: 6+PE, size: B6, number of connections per position: 1, Socket, Screw
connection, 500 V, 24 A, 0.5 mm² ... 2.5 mm², application: Power
Approvals
Approvals
Approvals
EAC / EAC
Ex Approvals
Approval details
EAC
RU C-
DE.AI30.B.01102
EAC
EAC-Zulassung
