D-Sub connectors - Stamped and Formed Contacts
STRAIGHT PCB TERMINATION
ONE METAL SHELL CONNECTORS
CHARACTERISTICS
DESCRIPTION
APPLICATIONS
Unmate (min)
0.36 (0.79)
0.46 (1.01)
0.81 (1.8)
1.1 (2.47)

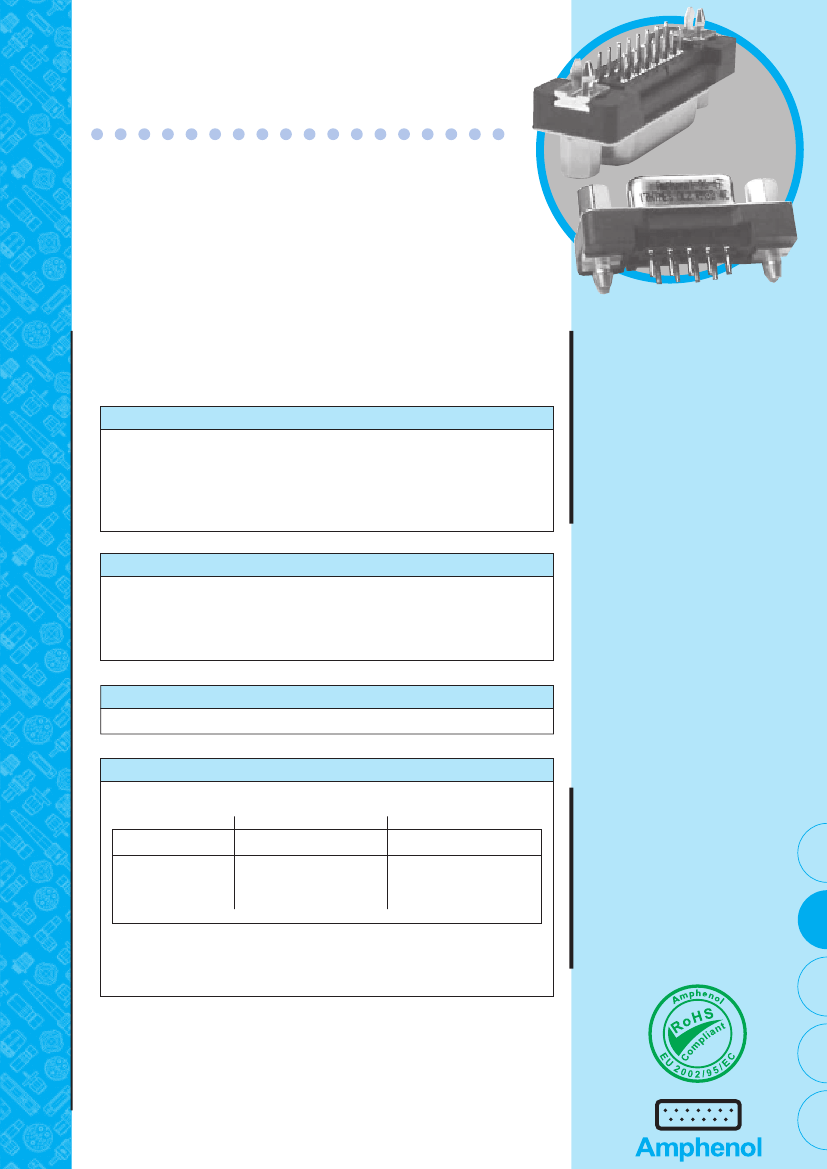

Specifications
• Connectors according to MIL C24308
The one shell D-sub Amphenol series
features, stamped and formed contacts.
This series gives you Amphenol’s high
standards of quality and reliability
to meet all of your commercial
requirements
Materials and Platings
Shells
Insulator
Contacts
Boardlock
Screwlock
Steel with nickel plating
Glass-filled thermoplastic, UL 94V-0
Copper alloy, selective gold plating
Brass with nickel plating
Brass with nickel plating
Electrical Data
Current rating
Voltage rating
Withstanding voltage
Insulation resistance
Contact resistance
5A
600V AC/rms 50Hz
1000V AC/rms 50Hz for one minute
5000MΩ
10mΩ max
Climatic Data
Operating temperature
-55°C to +125°C
Economical
straight PCB,
one shell
connectors
• Industrial
• Telecom
• Any industry standard
I / O connections
Mechanical Data
Mating and unmating force
Unit: kg ( lb)
No. of Cts
9
15
25
37
Mate (max)
3.05 (6.74)
5.09 (11.24)
8.44 (18.66)
12.51 (27.65)
• gold flash
• 0.4µm (15µ") gold
• 0.76 µm (30µ") gold
Standard plating thicknesses
TS / E10

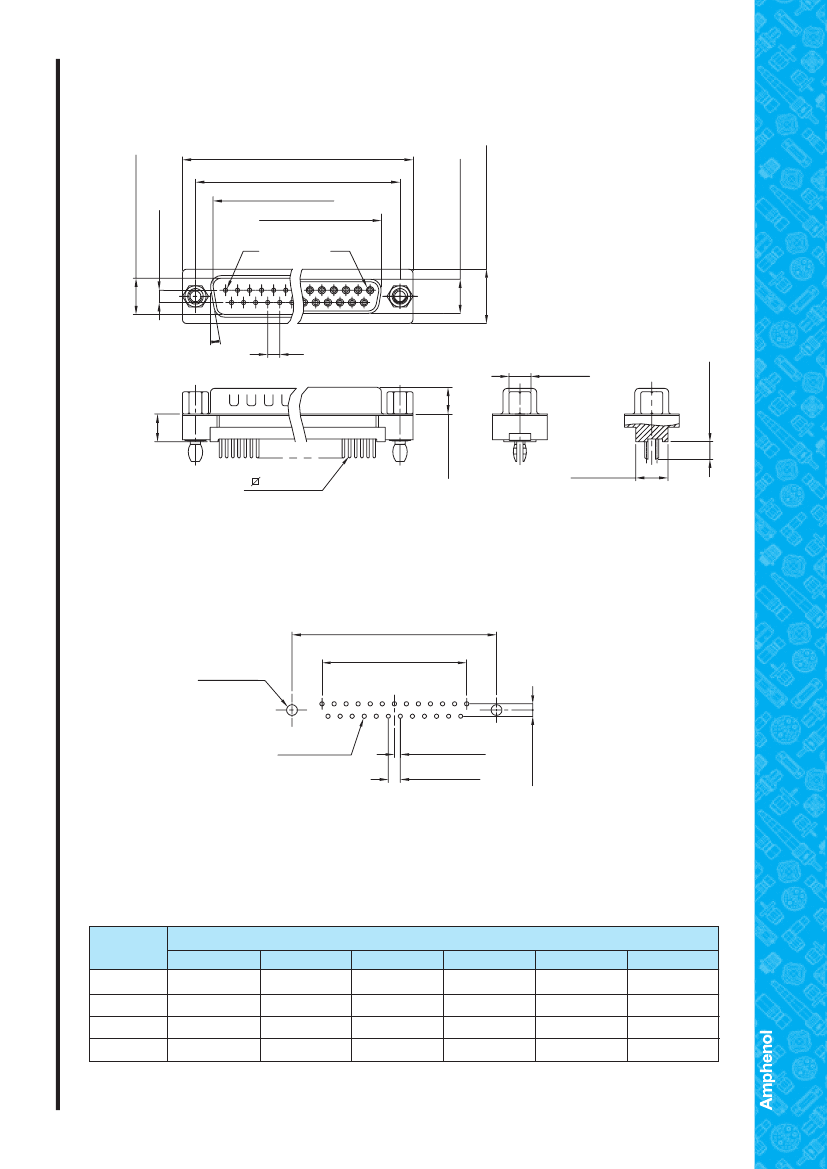

OVERALL DIMENSIONS
Shell Size Dimensions
8.38±0.13 (.33±.005)
B±0.13 (.005)
C±0.13 (.005)
D±0.13 (.005)
2.84 (.112)
POSITION #1
10°
X
3.18 (.125)
4.8 (.189)
L*
6.1 (.240)
PLUG
SOCKET
12.55±0.38 (.494±.015)
A±0.38 (.015)
7.9±0.13 (.311±.005)
0.8 (.031)
*see chart "how to order"
7.7 (.303)
RECOMMENDED P.C.B. LAYOUT
B
E
ø3.2 (.126)
C L
1.42 (.560)
ø1.0 (.039)
1.385 (.055)
X
Nb OF
CONTACTS
9
15
25
37
DIMENSIONS mm (inch)
A
30.84 (1.21)
39.24 (1.54)
53.04 (2.09)
69.34 (2.73)
B
24.99 (.984)
33.32 (1.31)
47.04 (1.85)
63.50 (2.50)
C
16.92 (.666)
25.25 (.994)
38.96 (1.53)
55.42 (2.18)
D
16.26 (.640)
24.56 (.967)
38.30 (1.51)
54.76 (2.16)
E
11.08 (.436)
19.39 (.763)
33.24 (1.31)
49.86 (1.96)
X
2.74
2.74
2.77
2.77
#4-40 or M3
#4-40 or M3
ø3.25 (.128)
Boardlock with Threaded Insert
RM5
ø3.25 (.128)
Boardlock with Front Screwlock
RM8
ø3.05 (120”)
Clear Hole
Rear Insert Threaded

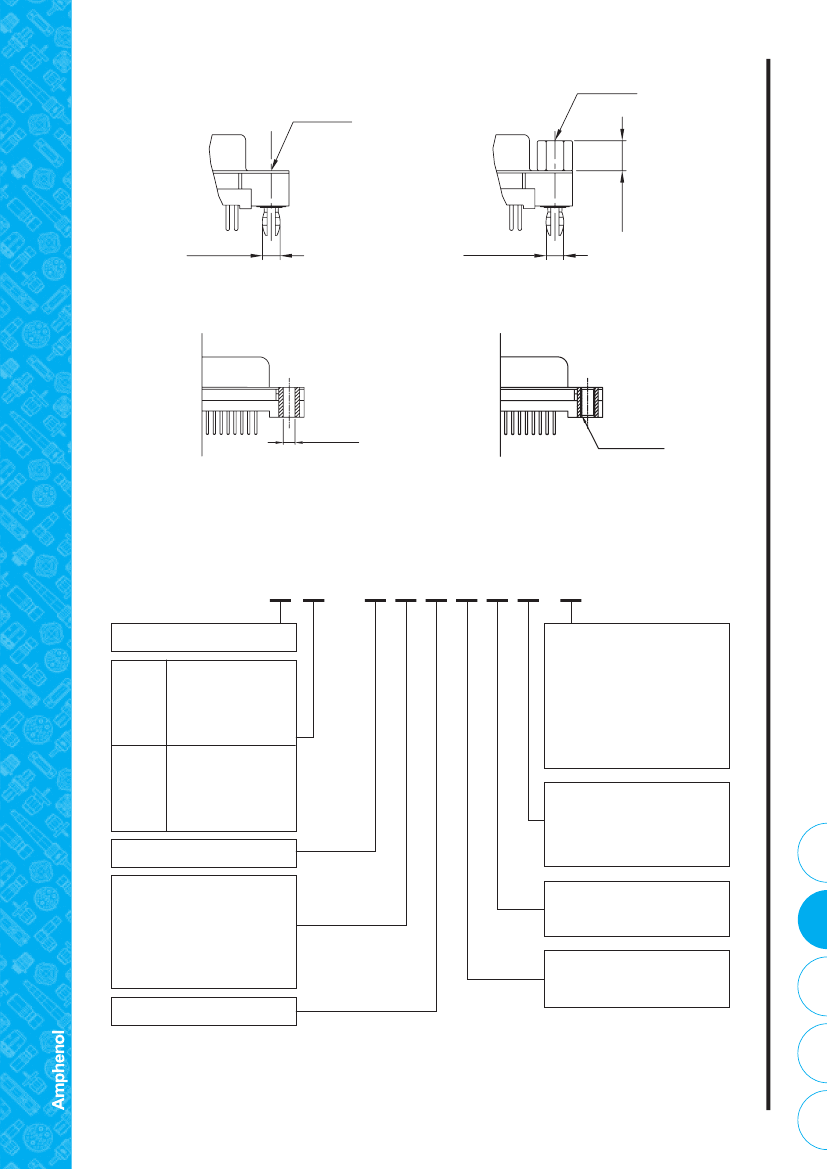

How to order
L ... TS ... ... ... ... ... ... C309
RoHS Compliant
77: tinned shell
for receptable
717: tinned shell
+ dimples
for plug
177: tinned shell
for receptable
777: tinned shell
+ dimples
for plug
plating option:
valid only for
0.76µm (30µ")
part numbers to be written
as follow:
77...................C309
or
717.................C309
board mounting options:
Blank
= Clear Hole
RM5
= retention clip
RM8
= retention clip
+front screwlock
termination:
OL2 :
L = 6.02mm (.237”)
OL2C :
L = 11.48mm (.452”)
contact type:
P
= pin
S
= socket
gold
flash
0.4µm
(15µ")
shell size: E, A, B, C
mounting options:
Blank
= Clear Hole
G
= M3
H
= 4.40
H,G
must also be used to specify
the threading of RM5 or RM8
grounding tabs
configuration: 09, 15, 25, 37
6.0 (.236)
Rear Insert
M3 or #4-40
For special request, please consult factory
TS / E10
HOW TO ORDER
