GT04-111-126-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> GT04-111-126-A

GT04-111-126-A: DescriptionMOSFET; CategoryPower/power management; File Size178KB，2 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/

Download Datasheet Parametric Compare View All

GT04-111-126-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GT04-111-126-A	-	-	View	Buy Now

GT04-111-126-A Overview

MOSFET

GT04-111-126-A Parametric

Parameter Name	Attribute value
Product Category	Pulse Transformers
Manufacturer	ICE Components
RoHS	Details
Inductance	0.99 mH
Length	20.57 mm
Width	12.19 mm
Height	19.05 mm
Isolation Voltage	4.5 kV
Operating Temperature Range	- 40 C to + 130 C
Packaging	Tray
Product	Gate Drive Transformers
Factory Pack Quantity	120
Termination Style	Through Hole

Preview

Download Datasheet

View All

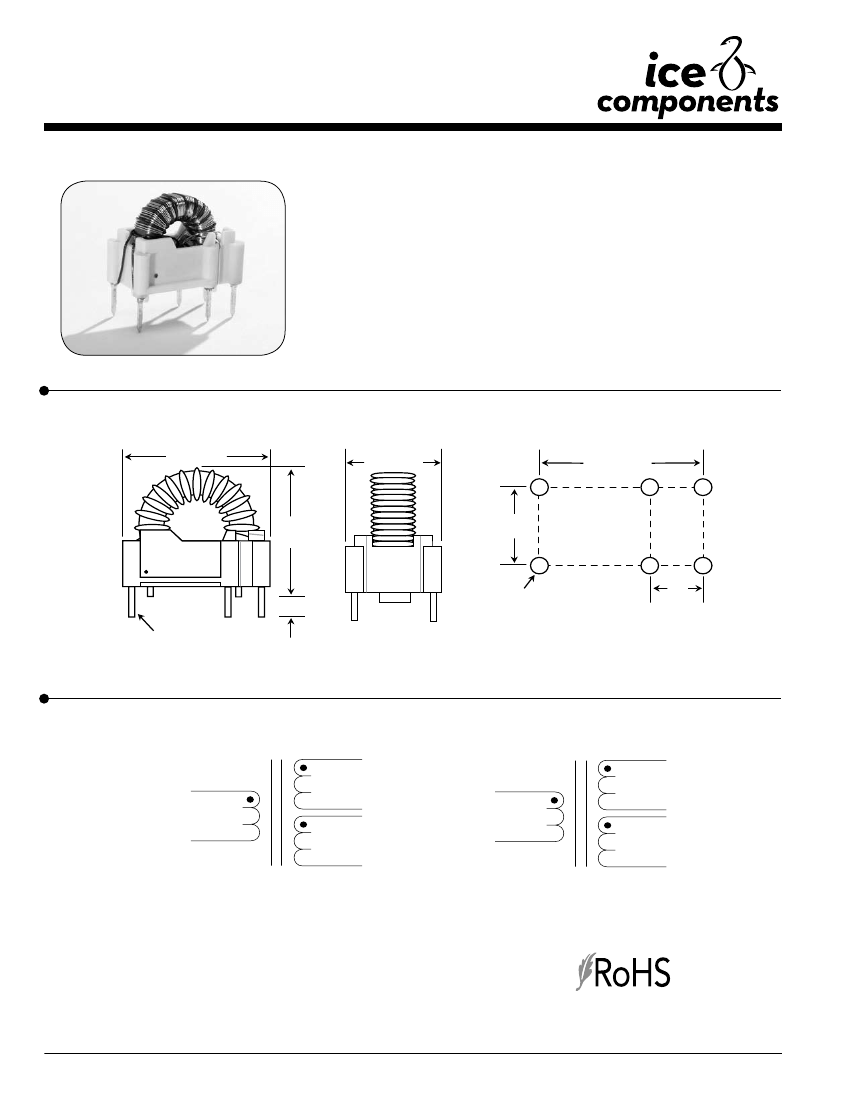

GT04 Series

Gate Drive Transformer

Features

• Meets medical safety isolation

requirements

• Designed for frequencies from

20 kHz to 300 kHz

• Available in UL Class F (155˚C) or

Economical Class B (130˚C) Versions

Applications

• Gate Drive Transformer

• Signal Transformer Across

Isolation Barriers

• Off-Line AC/DC Converters

• High-Powered DC/DC Converters

Packaging

Tray=45 pieces, Box=12 trays, Box=540 pieces

Mechanical

20.57 max

12.19 max

19.05

max

8.9 ref

5.0

Recommended PCb Layout

17.8 ref

GT04-XXX-XXX-X

ICA YYWW-X

3.5+/-0.3

0.64 sq

1.2 dia

Unit: mm

Schematic

Drive

Gate

Drive

Gate

Specifications subject to change without notice.

800.729.2099 tel

www.icecomponents.com

(02/08) GT04-1

GT04-111-126-A Related Products

	GT04-111-126-A	GT04-111-315-A	GT04-122-252-A	GT04-111-126-B	GT04-111-378-A
Description	MOSFET	Pulse Transformers Gate Drive Transformer		Headers u0026 Wire Housings 2.54MM CGRIDIII HDR 4P V SR SHRD AU-E	Circuit Board Hardware - PCB TEST POINT WHITE
Product Category	Pulse Transformers	Pulse Transformers	Pulse Transformers	Pulse Transformers	Pulse Transformers
Manufacturer	ICE Components	ICE Components	ICE Components	ICE Components	ICE Components
RoHS	Details	Details	Details	Details	Details
Inductance	0.99 mH	6.18 mH	0.634 mH	0.99 mH	8.91 mH
Length	20.57 mm	20.57 mm	20.57 mm	20.57 mm	20.57 mm
Width	12.19 mm	12.19 mm	19.05 mm	12.19 mm	12.19 mm
Height	19.05 mm	19.05 mm	12.19 mm	19.05 mm	19.05 mm
Isolation Voltage	4.5 kV	4.5 kV	4.5 kV	4.5 kV	4.5 kV
Operating Temperature Range	- 40 C to + 130 C	- 40 C to + 130 C	- 40 C to + 130 C	- 40 C to + 130 C	- 40 C to + 130 C
Packaging	Tray	Tray	Tray	Tray	Tray
Product	Gate Drive Transformers	Gate Drive Transformers	Gate Drive Transformers	Gate Drive Transformers	Gate Drive Transformers
Factory Pack Quantity	120	120	120	120	120
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
