FP230-25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> FP230-25

FP230-25: DescriptionBarrier Terminal Blocks .375 LOW PROFILE 8P screw terminal style; CategoryPower management transformer; File Size52KB，1 Pages; ManufacturerTriad Magnetics; Websitehttps://www.triadmagnetics.com/; Environmental Compliance

Download Datasheet Parametric View All

FP230-25 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FP230-25	-	-	View	Buy Now

FP230-25 Overview

Barrier Terminal Blocks .375 LOW PROFILE 8P screw terminal style

FP230-25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PCB MOUNTABLE
application	POWER
Certification	UL
Center click function 1	NO
Center click function 2	NO
high	22.22 mm
Insulation voltage	2000 V
length	47.62 mm
Installation features	THROUGH HOLE MOUNTED
Number of primary windings	2
Number of secondary windings	2
Output current 1	0.05 A
Output current 2	0.05 A
Output voltage 1	115 V
Output voltage 2	115 V
physical size	L47.62XB39.67XH22.22 (mm)
main rating	DUAL 115/230V
surface mount	NO
Transformer type	SPLIT BOBBIN POWER TRANSFORMER
VA rating	6 VA
width	39.67 mm
Base Number Matches	1

Preview

Download Datasheet

View All

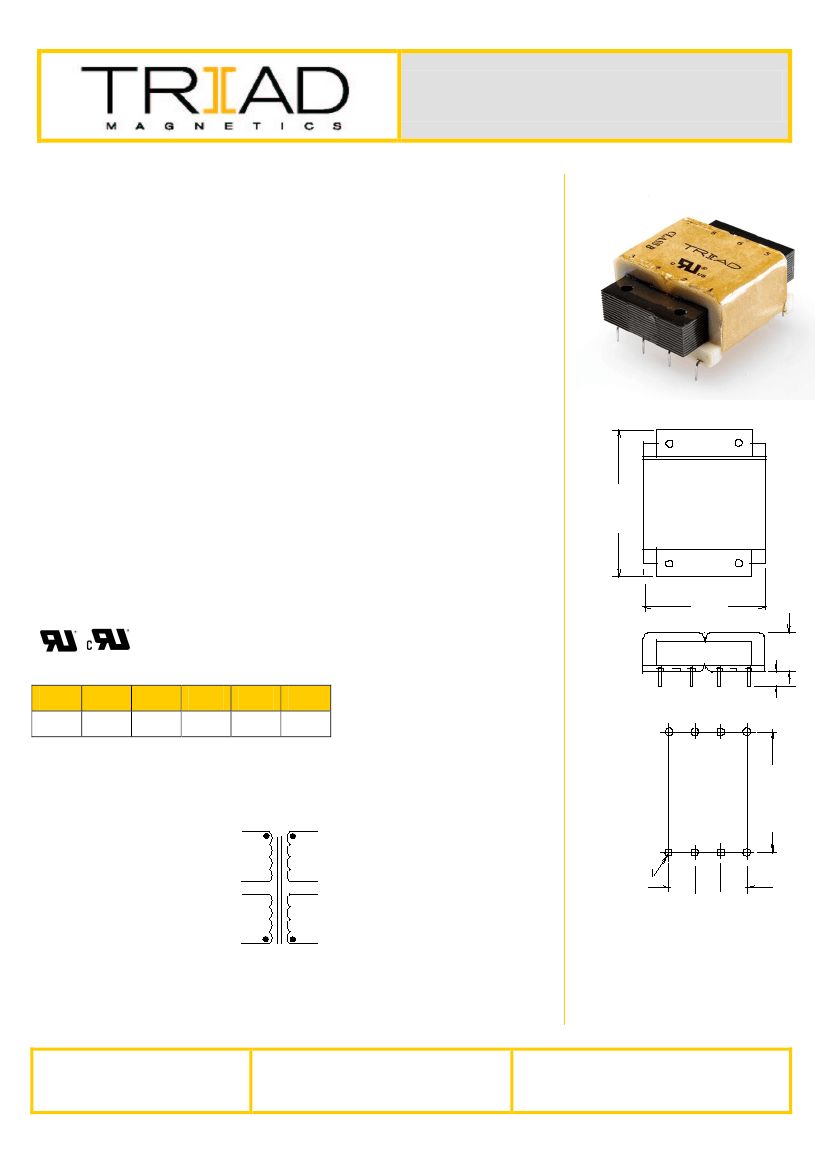

Power Transformer

PC Mount: Flat Pack

™

FP230-25

Electrical Specifications (@25C)

1. Maximum Power: 6.0 VA

2. Primary Voltage:

Series: 230V@50/60 Hz

Parallel: 115V@50/60Hz

3. Secondary:

Series:

230.0VCT @ 0.025Amps

Parallel: 120.0V @ 0.050Amps

Description:

The FP230-25 is part of a series which has a long history of reliable service in the

field, made from a proven design and constructed with UL recognized materials.

Construction:

Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B

(130º C) rated.

Safety:

These products are 100% hipot tested with an insulation of 2000V between

primary and secondary windings and 1500V between the primary / secondary

windings and the core.

Agency File:

UL: File E53148, UL 506, Class B General Purpose Transformer,

cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use

Dimensions:

1.875

1.562

0.875

0.267

0.375

1.600

Units: In inches

Weight: 7.0 oz

Pin Dimension: .020 x .041 in

Schematic:

.060 DIA HOLES

RoHS Compliance:

As of manufacturing date February 2005, all standard products meet

the requirements of 2011/65/EU, known as the RoHS initiative.

*Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics

website for the most current version.

For soldering and washing information please see

http://www.triadmagnetics.com/faq.html

Web: www.TriadMagnetics.com

Phone 951-277-0757

Fax 951-277-2757

460 Harley Knox Blvd.

Perris, California 92571

Publish Date: June 6, 2016
