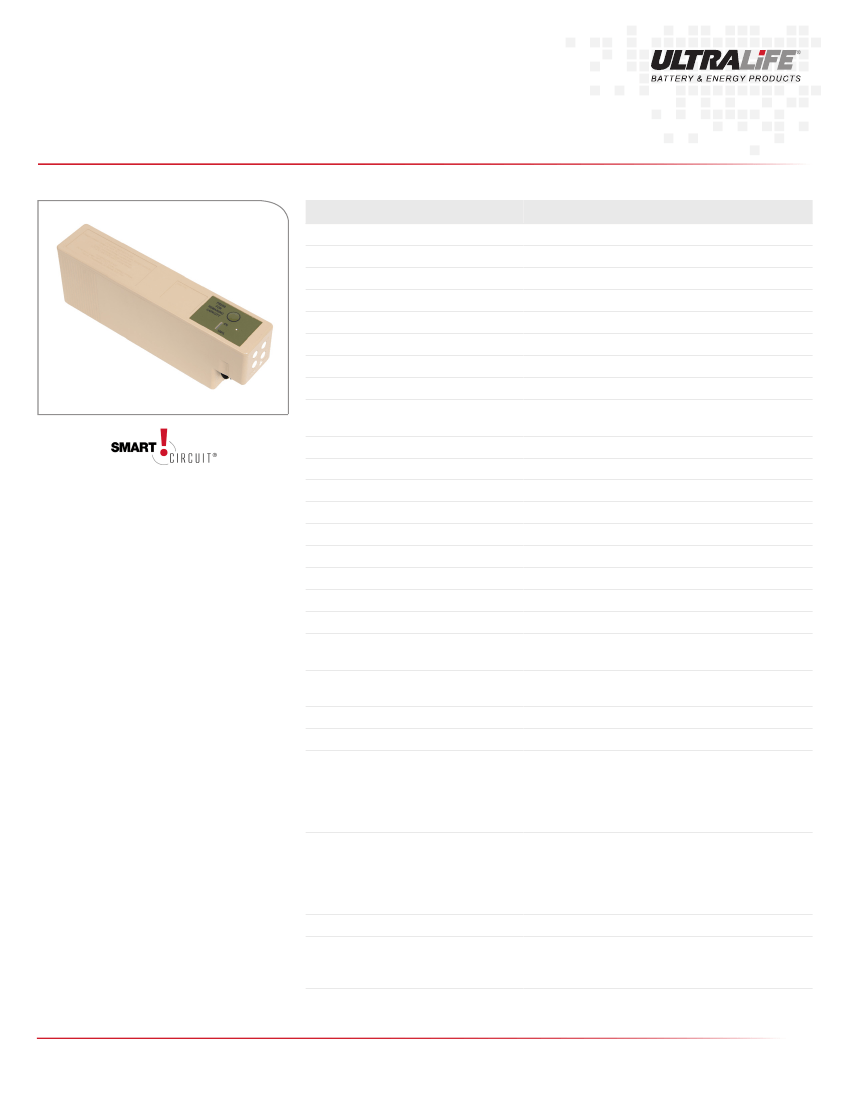

UBBL06-02 (LI-200)
Technical Datasheet
Technical Specifications
Part No.
Voltage Range
Average Voltage
Nominal Capacity
Max. Discharge
Max. Pulse Discharge
Energy
Energy Density
EMI
Weight
UBBL06-02
10.0 to 16.8V
14.4V
13.6Ah @C/5 Rate @ 23°C
5.0A continuous
15.0A for 915μs
200Wh
197Wh/kg, 482Wh/l
MIL-STD-461, CE101, CE102, CS101, CS114,
CS115, CS116, RE102, RE101, RS103
950g
> 300 cycles @ C/5 to 80% of inital capacity
No Memory Effect
-20°C to 55°C
-32°C to 60°C
< 4% per month
Tan, FED-STD-595
Glenair 807-216-07ZNU6-6DY
SMBus v1.1
Material Safety Datasheet - MSDS060
Safety Guide UBM-5112
Class 9 International and within U.S. unless
shipped by motorcar or rail within U.S. (see note)
EAR99
8507.60.0000
Over Voltage Limit: 17.4 ± 0.25V
Under Voltage Limit: 10.0 ± 0.1V
Over Current Protection: 5.0A
Re-settable Fuse: 70° ± 5°C
One-time Thermal Fuse: 91°C + 0° / -4°C
Maximum charge rate is 5.0A to maximum
voltage of 16.8V in a temperature range of 0°
to 45°C. Hold at 16.8V until current declines to
350mA. Using charge pins, the current can be
increased to 8.0A during charge.
A complete description of transportation
regulations, lithium weights and transportation
classifications is available on the Ultralife website.
Features
Cycle Life
®
• Smart Circuit Technology - Implements
SBS v1.1 smart battery technology
• Rugged case construction
• Ergonomic form factor
• High energy density
• Wide operating temperature range
• State of charge idicator: 5 segment LED,
push button activated
• Leightweight
Memory
Operating Temperature
Storage Temperature
Self-Discharge
Exterior/Housing
Terminals/Connector
Communication
Safety
Transportation
Export Classification
Harmonized Tariff Code
Protection Circuit Module and
Fuses
Applications
• Soldier-based applications
•
Rugged, portable electronic field equipment
• Adaptable to hand-held military radios and
other communications equipment
• Other military or forward-situation (e.g.
emergency response) applications
Optional Chargers
•
•
•
•
•
CH0006: 3-Unit Smart Vehicle Charger
CH0008: Soldier Charger
CH0012: 12-bay Charger
CH0015: Desktop Evaluation Charger
UCH0041: 3-unit Smart Charger Vehicle
Charging
Optional Cables
Note
• CA0009: Non-shielded Cable
• CA0022: Shielded Cable

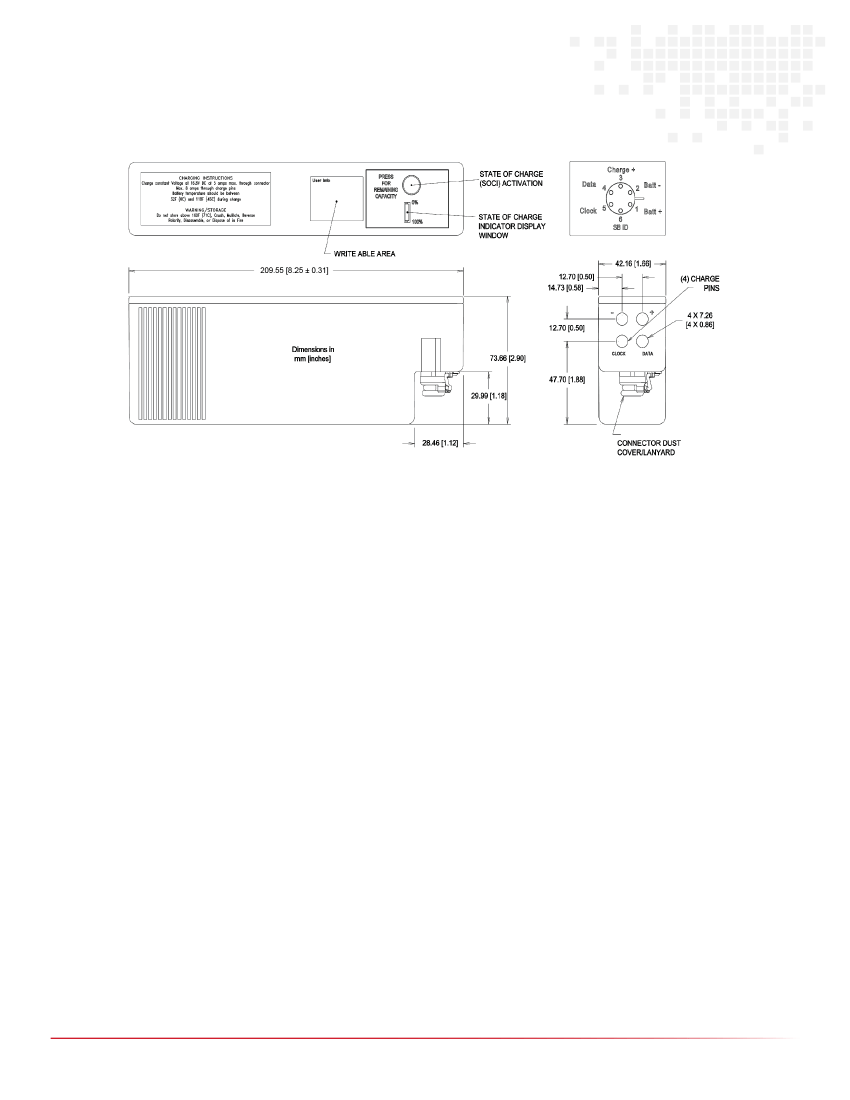

UBBL06-02
Newark, New York | +1 315-332-7100 | Fax: +1 315-331-7800
©2017 Ultralife Corporation • www.ultralifecorp.com • All information is subject to change without notice.
The information contained herein is for reference only and does not constitute a warranty of performance. •
24 OCT 17 UBI-2172-02 Rev: A
