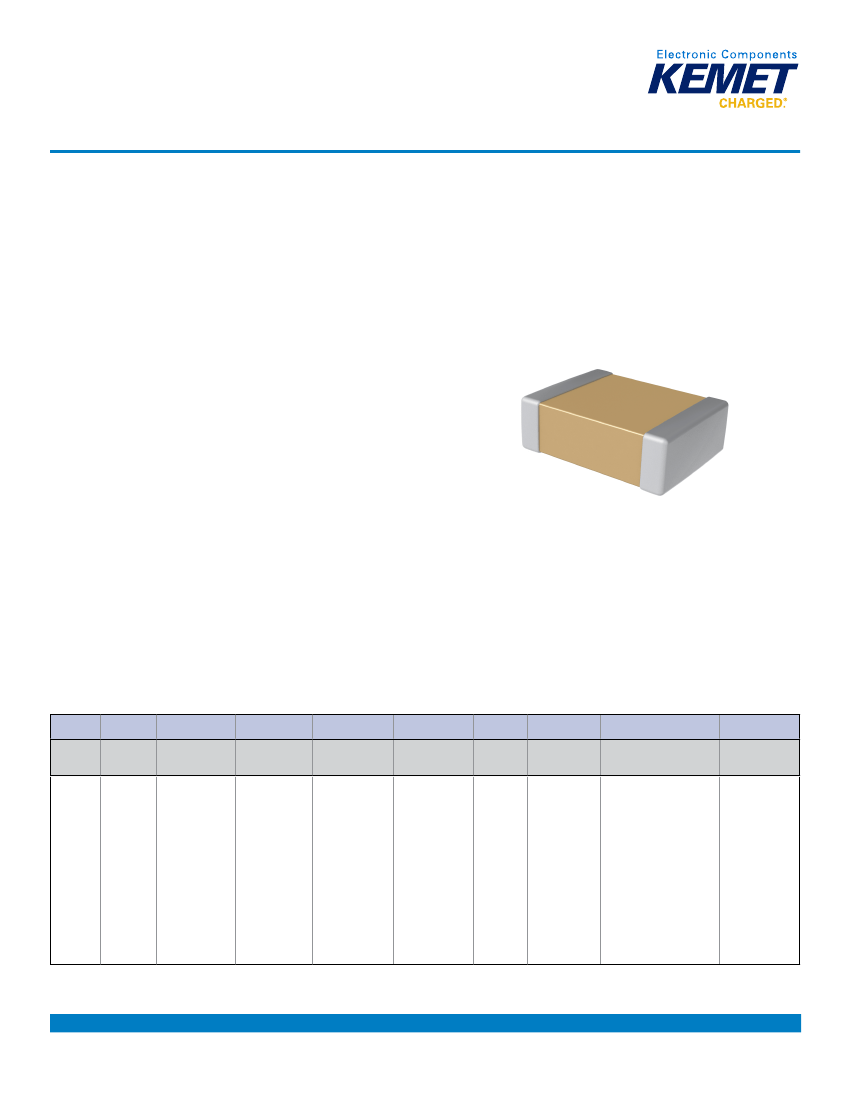

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
High Voltage C0G Dielectric, 500 – 3,000 VDC
(Commercial Grade)
Overview
KEMET’s High Voltage surface mount MLCCs in
C0G dielectric feature a 125°C maximum operating
temperature and are considered “stable.” The Electronics
Industries Alliance (EIA) characterizes C0G dielectric as
a Class I material. Components of this classification are
temperature compensating and are suited for resonant
circuit applications or those where Q and stability of
capacitance characteristics are required. C0G exhibits no
change in capacitance with respect to time and voltage
and boasts a negligible change in capacitance with
reference to ambient temperature. Capacitance change is
limited to ±30ppm/ºC from −55°C to +125°C.
These devices exhibit low ESR at high frequencies
and find conventional use as snubbers or filters in
applications such as switching power supplies and
lighting ballasts. Their exceptional performance
at high frequencies has made high voltage MLCC's
the preferred dielectric choice of design engineers
worldwide. In addition to their use in power supplies,
these capacitors are widely used in industries related
to automotive(hybrid), telecommunications, medical,
military, aerospace, semiconductors and test/diagnostic
equipment.
In addition to Commercial Grade, Automotive Grade devices
are available which meet the demanding Automotive
Electronics Council's AEC-Q200 qualification requirements.
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
C
Ceramic
1210
C
332
J
Capacitance
Tolerance
1
B = ±0.10 pF
C = ±0.25 pF
D = ±0.5 pF
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
C
G
A
C
Termination Finish
2
C = 100% Matte Sn
L = SnPb
(5% Pb minimum)
TU
Packaging/
Grade (C-Spec)
See
"Packaging
C-Spec
Ordering
Options
Table" below
Case Size
Specification/
Capacitance
(L" x W")
Series
Code (pF)
0603
0805
1206
1210
1808
1812
1825
2220
2225
2824
3040
3640
4540
C = Standard
Two
significant
digits and
number of
zeros.
Failure Rate/
Rated Voltage
Dielectric
Design
(VDC)
C = 500
B = 630
D = 1,000
F = 1,500
G = 2,000
Z = 2,500
H = 3,000
G = C0G
A = N/A
Additional capacitance tolerance offerings may be available. Contact KEMET for details.
2
Additional termination finish options may be available. Contact KEMET for details.
1
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1009_C0G_HV_SMD • 6/27/2017
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
High Voltage C0G Dielectric, 500 – 3,000 VDC (Commercial Grade)
Packaging C-Spec Ordering Options Table
Packaging Type
1
Bulk Bag/Unmarked
7" Reel/Unmarked
13" Reel/Unmarked
7" Reel/Unmarked/2 mm pitch
2
13" Reel/Unmarked/2 mm pitch
2
1
1
Packaging/Grade
Ordering Code (C-Spec)
Not required (Blank)
TU
7411 (EIA 0603 and smaller case sizes)
7210 (EIA 0805 and larger case sizes)
7081
7082
Default packaging is “Bulk Bag”. An ordering code C-Spec is not required for “Bulk Bag” packaging.
"Bulk Bag" packaging option is not available for case sizes larger than 2225 (5664 Metric).
1
The terms “Marked” and “Unmarked” pertain to laser marking option of capacitors. All packaging options labeled as “Unmarked” will contain
capacitors that have not been laser marked. The option to laser mark is not available on these devices. For more information see “Capacitor Marking”.
2
The 2 mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case
size devices. For more information regarding 2 mm pitch option see “Tape & Reel Packaging Information”.
Benefits
• Operating temperature range of −55°C to +125°C
• Lead (Pb)-Free, RoHS and REACH compliant
• EIA 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220,
2225, 2824, 3040, 3640 and 4540 case sizes
• DC voltage ratings of 500 V, 630 V, 1 KV, 1.5 KV, 2 KV,
2.5 KV and 3 KV
• Capacitance offerings ranging from 1pF to 0.150μF
• Available capacitance tolerances of ±0.10pF, ±0.25pF,
±0.5pF, ±1%, ±2%, ±5%, ±10% and ±20%
• No piezoelectric noise
• Extremely low ESR and ESL
• High thermal stability
• High ripple current capability
• Preferred capacitance solution at line frequencies
and into the MHz range
• No capacitance change with respect to applied
rated DC voltage
• Negligible capacitance change with respect to
temperature from −55°C to +125°C
• No capacitance decay with time
• Non-polar device, minimizing installation concerns
• Automotive (AEC–Q200) grade available
• 100% pure matte tin-plated termination finish allowing
for excellent solderability
• SnPb plated termination finish option available upon
request (5% Pb minimum)
Applications
Typical applications include switch mode power supplies (input filters, resonators, tank circuits, snubbed circuits, output
filters), high voltage coupling and DC blocking, lighting ballasts, voltage multiplier circuits, DC/DC converters and coupling
capacitors in Ćuk converters. Markets include power supply, LCD fluorescent backlight ballasts, HID lighting, telecom
equipment, industrial and medical equipment/control, LAN/WAN interface, analog and digital modems, and automotive.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1009_C0G_HV_SMD • 6/27/2017
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
High Voltage C0G Dielectric, 500 – 3,000 VDC (Commercial Grade)
Dimensions – Millimeters (Inches)
W
L
T
B
S
EIA Size
Code
0603
0805
1206
1210
1808
1812
1825
2220
2225
2824
3040
3640
4540
Metric Size
Code
1608
2012
3216
3225
4520
4532
4564
5650
5664
7260
7610
9210
-
L
Length
1.60 (0.063)
±0.15 (0.006)
2.00 (0.079)
±0.20 (0.008)
3.20 (0.126)
±0.20 (0.008)
3.20 (0.126)
±0.20 (0.008)
4.70 (0.185)
±0.50 (0.020)
4.50 (0.177)
±0.30 (0.012)
4.50 (0.177)
±0.30 (0.012)
5.70 (0.224)
±0.40 (0.016)
5.60 (0.220)
±0.40 (0.016)
7.10 (0.280)
±0.40 (0.016)
7.60 (0.300)
±0.40 (0.016)
9.10 (0.358)
±0.40 (0.016)
11.40 (0.449)
±0.40 (0.016)
W
Width
0.80 (0.032)
±0.15 (0.006)
1.25 (0.049)
±0.20 (0.008)
1.60 (0.063)
±0.20 (0.008)
2.50 (0.098)
±0.20 (0.008)
2.00 (0.079)
±0.20 (0.008)
3.20 (0.126)
±0.30 (0.012)
6.40 (0.252)
±0.40 (0.016)
5.00 (0.197)
±0.40 (0.016)
6.40 (0.248)
±0.40 (0.016)
6.10 (0.240)
±0.40 (0.016)
10.20 (0.402)
±0.40 (0.016)
10.20 (0.402)
±0.40 (0.016)
10.20 (0.402)
±0.40 (0.016)
T Thickness
B
Bandwidth
0.35 (0.014)
±0.15 (0.006)
0.50 (0.02)
±0.25 (0.010)
0.50 (0.02)
±0.25 (0.010)
0.50 (0.02)
±0.25 (0.010)
0.60 (0.024)
±0.35 (0.014)
0.60 (0.024)
±0.35 (0.014)
0.60 (0.024)
±0.35 (0.014)
0.60 (0.024)
±0.35 (0.014)
0.60 (0.024)
±0.35 (0.014)
1.27 (0.050)
±0.40 (0.016)
1.27 (0.050)
±0.40 (0.016)
1.27 (0.050)
±0.40 (0.016)
1.27 (0.050)
±0.40 (0.016)
S
Separation
Minimum
0.70 (0.028)
0.75 (0.030)
Mounting
Technique
Solder Wave or
Solder Reflow
See Table 2 for
Thickness
N/A
Solder Reflow
Only
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1009_C0G_HV_SMD • 6/27/2017
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
High Voltage C0G Dielectric, 500 – 3,000 VDC (Commercial Grade)
Qualification/Certification
Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are
referenced in Table 4, Performance & Reliability.
Environmental Compliance
Lead (Pb)-free, RoHS, and REACH compliant without exemptions (excluding SnPb termination finish option).
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 VDC Applied
(TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
1
Parameters/Characteristics
−55°C to +125°C
±30 ppm/ºC
0%
See Dielectric Withstanding Voltage (DWV) Table
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
0.1%
1,000 megohm microfarads or 100 GΩ
(500 VDC applied for 120 ±5 seconds at 25°C)
Dielectric Withstanding Voltage (DWV)
2
Dissipation Factor (DF) Maximum Limit at 25ºC
3
Insulation Resistance (IR) Limit at 25°C
DWV is the voltage a capacitor can withstand (survive) for a short period of time. It exceeds the nominal and continuous working voltage of the
capacitor.
2
Capacitance and dissipation factor (DF) measured under the following conditions:
1 MHz ±100 kHz and 1.0 Vrms ±0.2 V if capacitance ≤ 1,000 pF
1 kHz ±50 Hz and 1.0 Vrms ±0.2 V if capacitance > 1,000 pF
3
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known
as Automatic Level Control (ALC). The ALC feature should be switched to "ON."
1
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1009_C0G_HV_SMD • 6/27/2017
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
High Voltage C0G Dielectric, 500 – 3,000 VDC (Commercial Grade)
Dielectric Withstanding Voltage (DWV)
EIA Case Size
0603
0805
1206
1210
1808
1812
≥1825
150% of rated
voltage
500V
630V
130% of rated voltage
< 620pF 150% of rated voltage
≥ 620pF 130% of rated voltage
< 5.1nF 150% of rated voltage
≥ 5.1nF 130% of rated voltage
< 7.5nF 150% of rated voltage
≥ 7.5nF 130% of rated voltage
< 5.1nF 150% of rated voltage
≥ 5.1nF 130% of rated voltage
< 12nF 150% of rated voltage
≥ 12nF 130% of rated voltage
150% of rated voltage
≥ 1000V
120% of rated
voltage
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
C0G
Rated DC
Voltage
All
Capacitance
Value
All
Dissipation Factor
(Maximum %)
0.5
Capacitance
Shift
0.3% or ±0.25 pF
Insulation
Resistance
10% of Initial
Limit
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1009_C0G_HV_SMD • 6/27/2017
5
