SA08-12GWA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SA08-12GWA

SA08-12GWA: DescriptionLED Displays u0026 Accessories Single Green 568nm Common Anode; CategoryLED optoelectronic/LED photoelectric; File Size227KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

SA08-12GWA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SA08-12GWA	-	-	View	Buy Now

SA08-12GWA Overview

LED Displays u0026 Accessories Single Green 568nm Common Anode

SA08-12GWA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-16
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	GREEN
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	20.32 mm
Maximum forward current	0.025 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

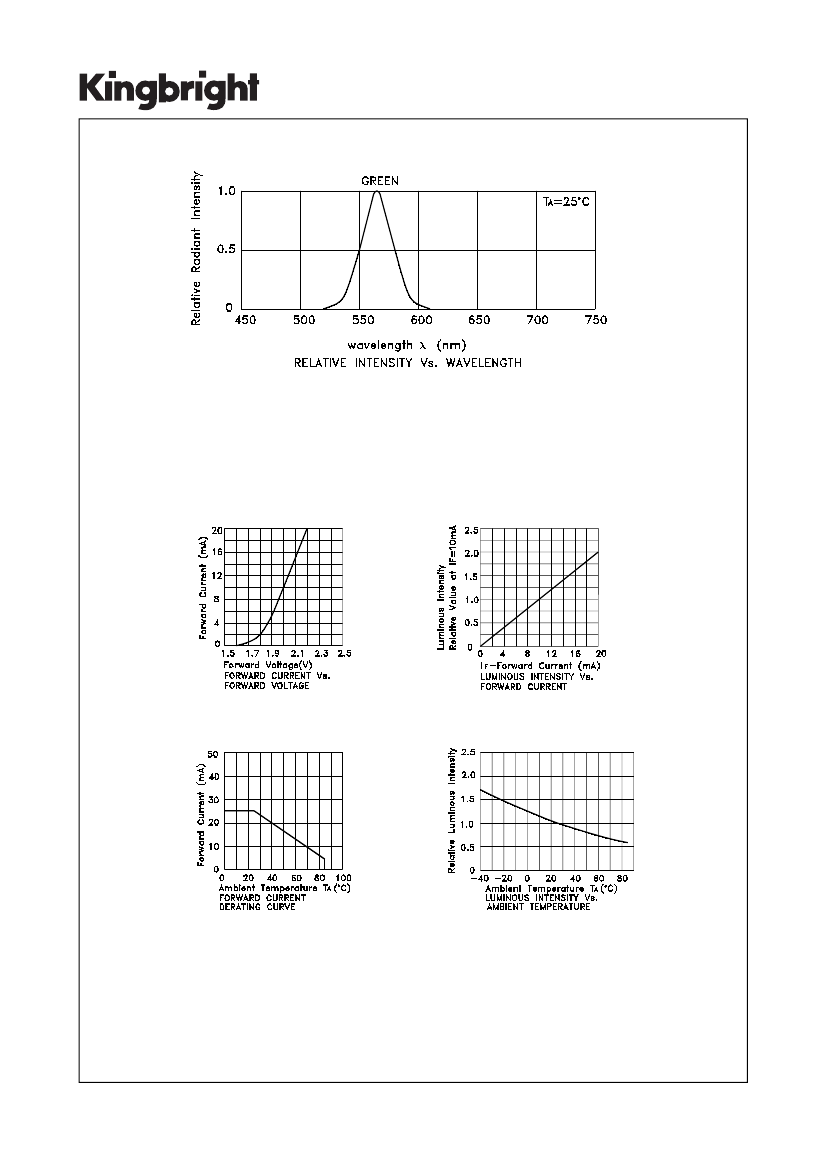

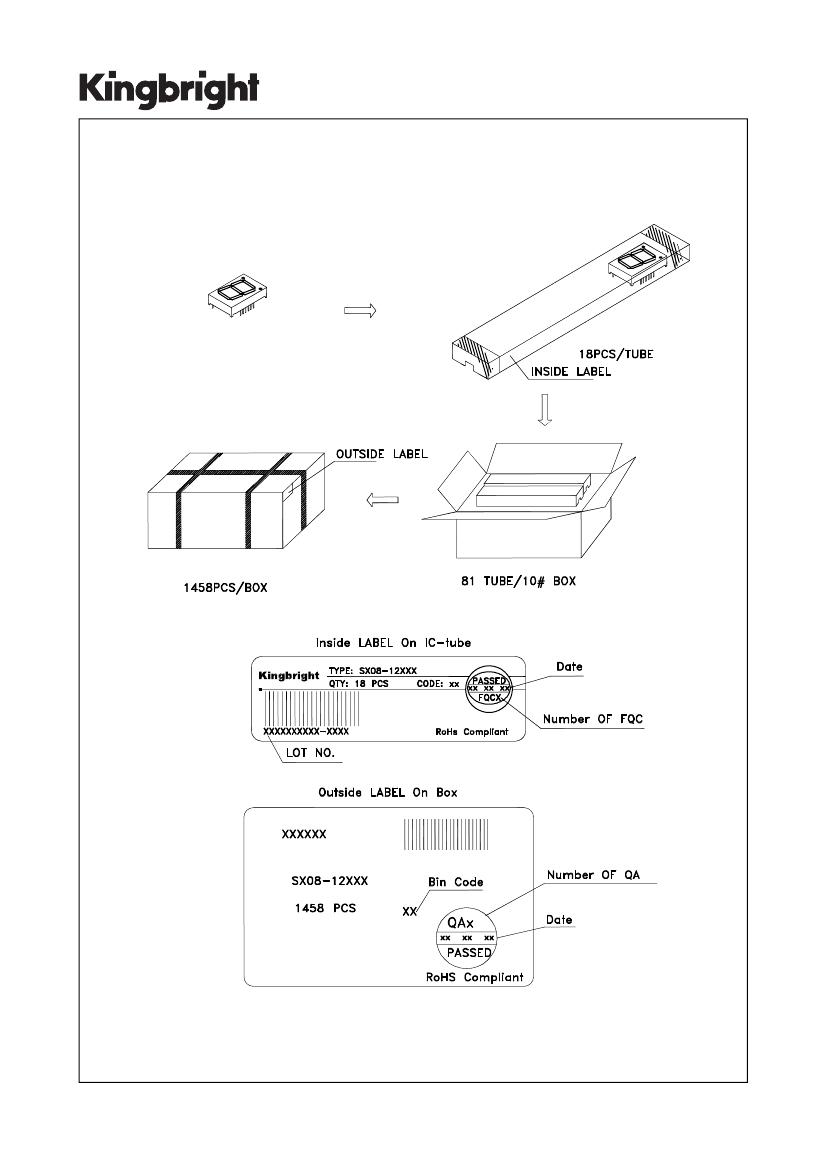

20.32mm (0.8INCH) SINGLE DIGIT

NUMERIC DISPLAY

Part Number: SA08-12GWA

Green

Features

0.8 inch digit height.

Excellent character appearance.

High light output.

Easy mounting on P.C. boards or sockets.

Mechanically rugged.

Standard : gray face, white segment.

RoHS compliant.

Description

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

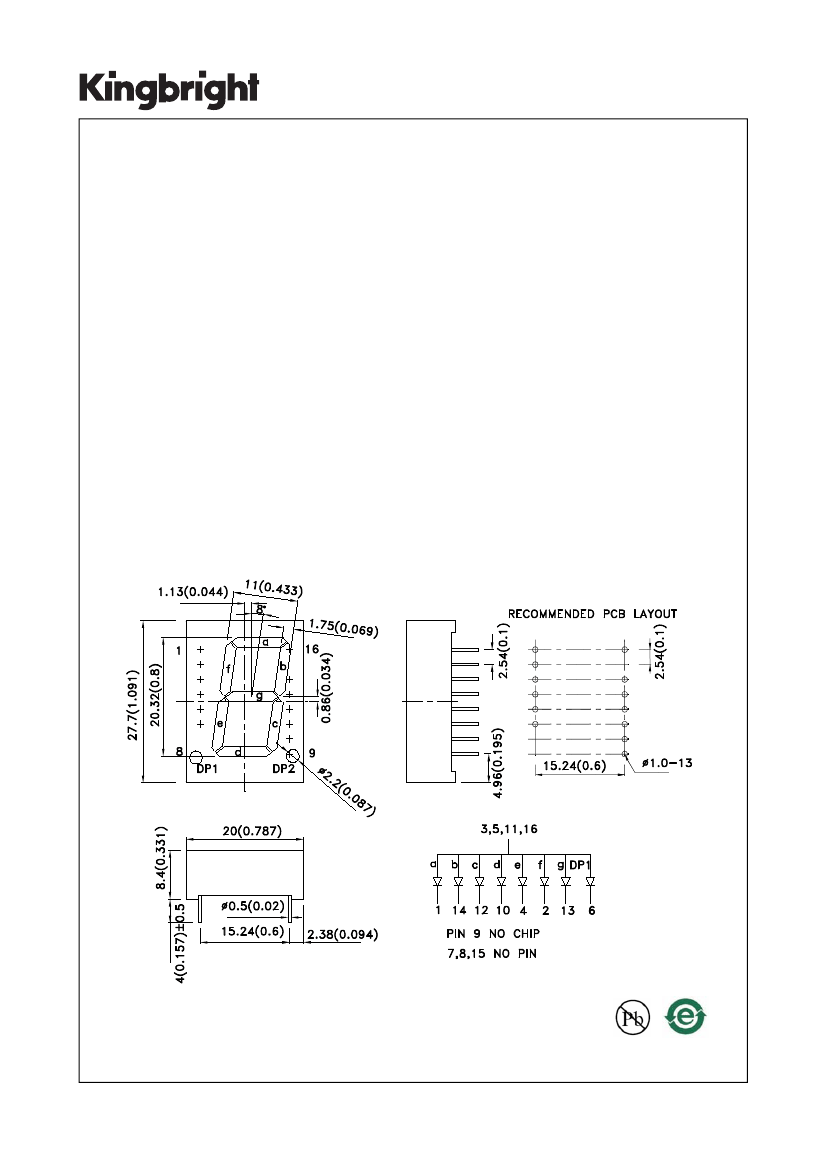

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAD2288

APPROVED: WYNEC

REV NO: V.9

CHECKED: Joe Lee

DATE: MAR/29/2011

DRAWN: J.Yu

PAGE: 1 OF 6

ERP: 1301000120
