CS20-10000MABJ-UT datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> CS20-10000MABJ-UT

Preview

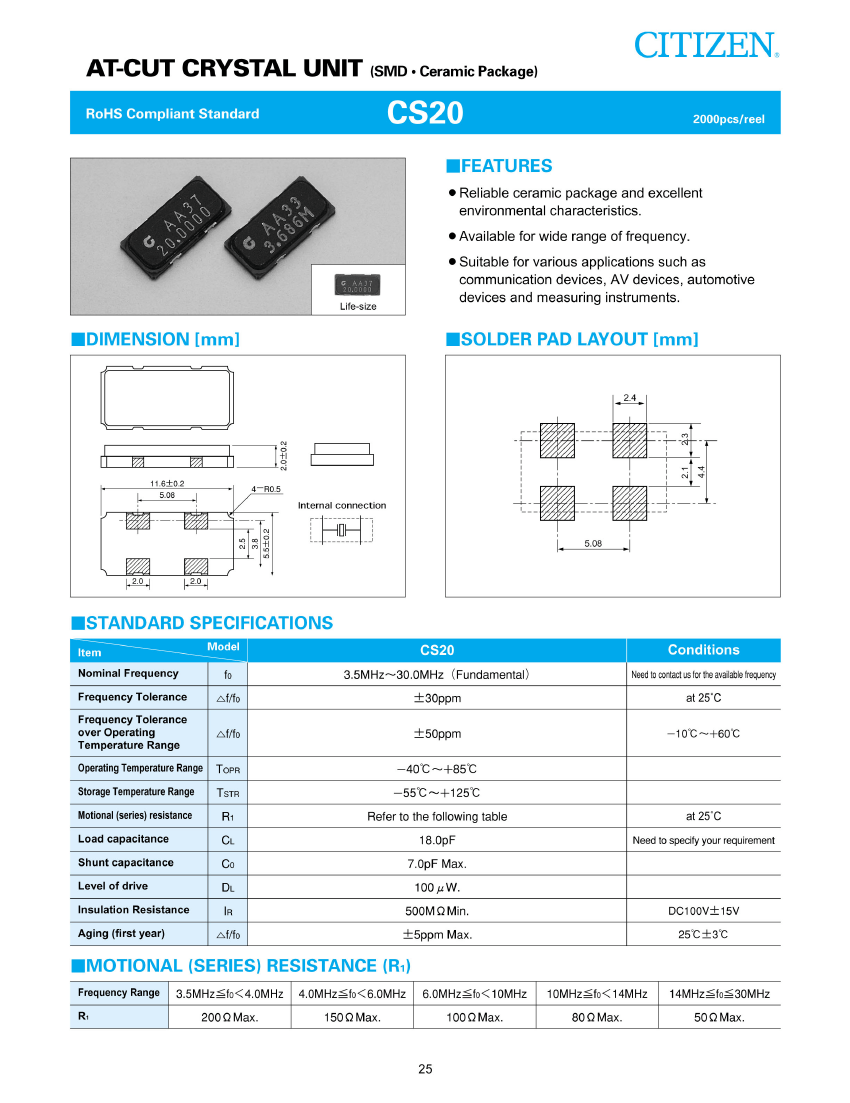

CS20-10000MABJ-UT: DescriptionCrystals 10MHz 18pF CERAMIC SMD; CategoryPassive components; File Size5MB，1 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html

Download Datasheet Parametric Compare View All

CS20-10000MABJ-UT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CS20-10000MABJ-UT	-	-	View	Buy Now

CS20-10000MABJ-UT Overview

Crystals 10MHz 18pF CERAMIC SMD

CS20-10000MABJ-UT Parametric

Parameter Name	Attribute value
Product Category	Crystals
Manufacturer	CITIZEN
RoHS	Details
Termination Style	SMD/SMT
Package / Case	11.6 mm x 5.5 mm
Load Capacitance	18 pF
Frequency	10 MHz
Tolerance	30 PPM
Frequency Stability	50 PPM
Drive Level	100 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	11.6 mm
Width	5.5 mm
Height	2 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
ESR	80 Ohms
Mounting Style	SMD/SMT
Factory Pack Quantity	2000
Type	AT-Cut Crystal

Preview

Download Datasheet

View All

Discontinued
