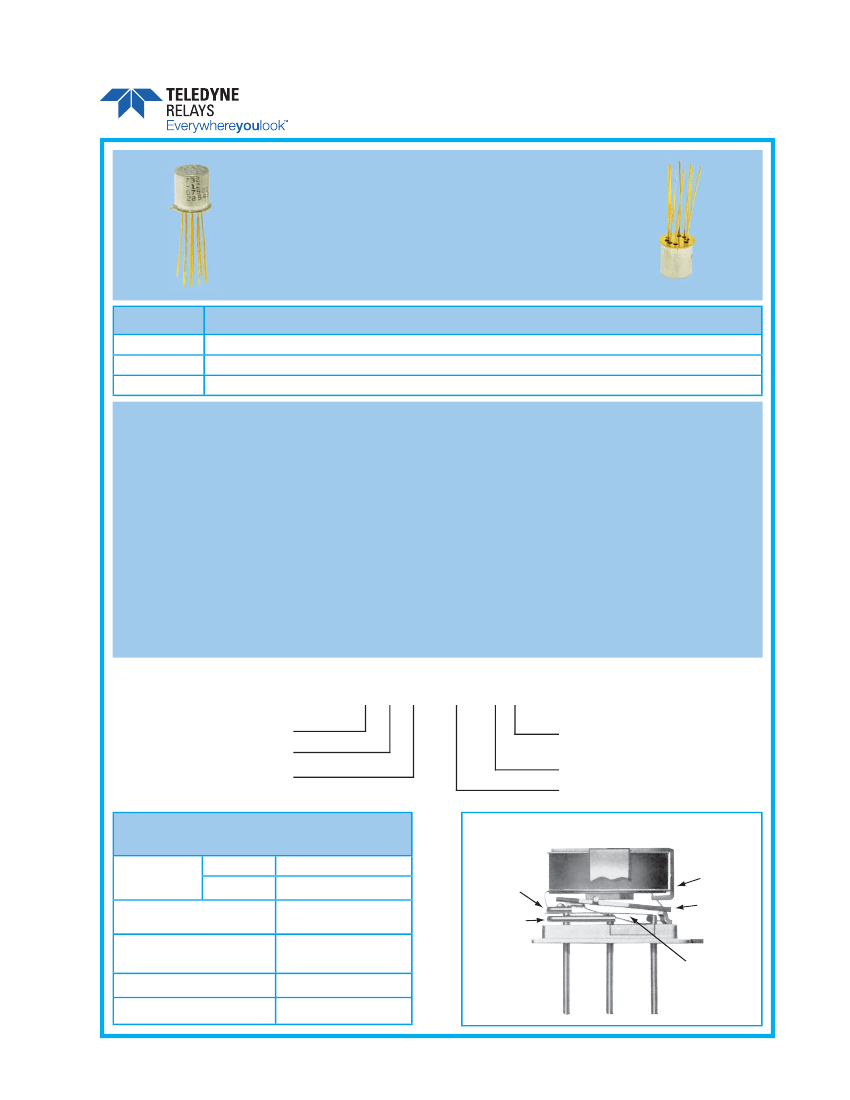

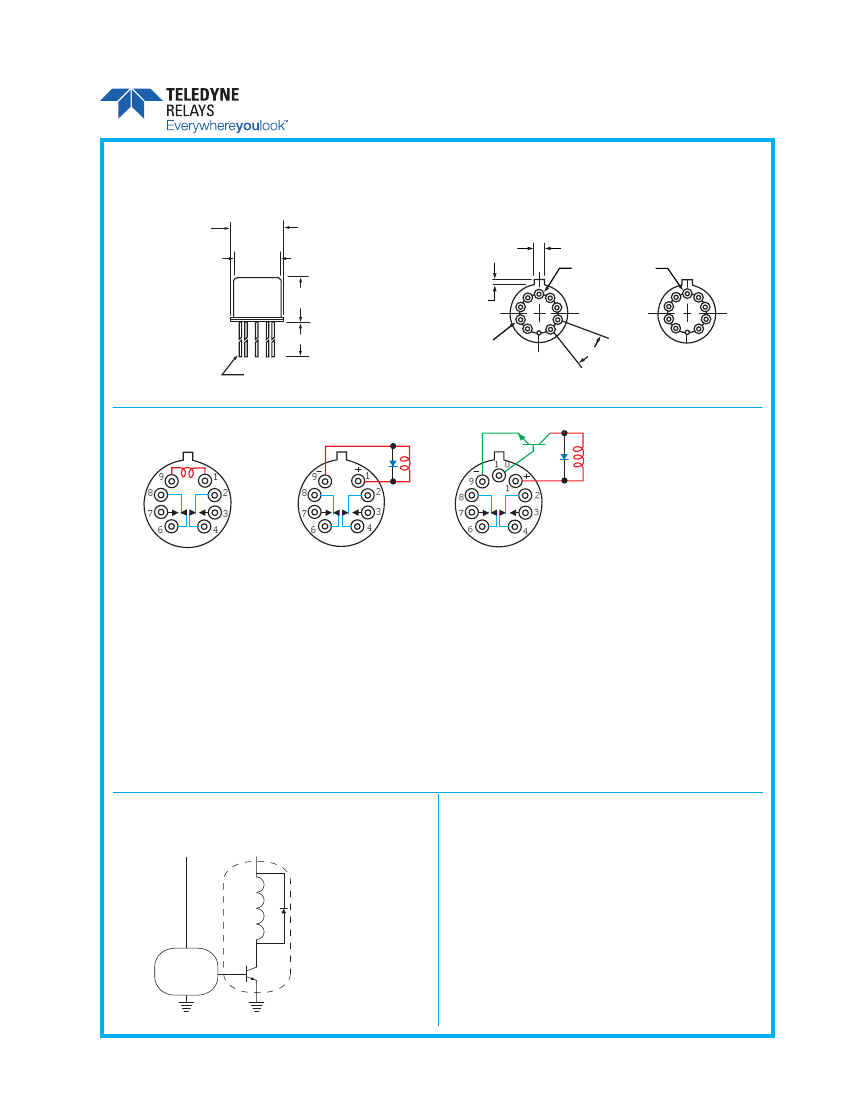

DPDT Non-Latching
Commercial Electromechanical Relay
Series 732
COMMERCIAL
SENSITIVE TO-5 RELAYS
DPDT
SERIES
RELAY TYPE
732
732D
732TN
DESCRIPTION
DPDT basic relay
DPDT relay with internal diode for coil transient suppression
DPDT relay with internal transistor driver and coil transient suppression diode
• Advanced cleaning techniques provide maximum assurance of internal
cleanliness.
• Precious metal alloy contact material with gold plating assures excellent
high current and dry circuit switching capabilities.
The Series 732D relay has an internal discrete silicon diode for coil
transient suppression. The hybrid Series 732TN relay has an internal
silicon diode and transistor driver. The integrated packaging of the relay
with its associated semiconductor devices greatly reduces PC board floor
space requirements as well as component installation costs.
By virtue of its inherently low intercontact capacitance and contact circuit
losses, the 732 has proven to be excellent ultraminiature RF switch for
frequency ranges well into the UHF spectrum. A typical RF application for
the TO-5 relay is in handheld radio transceivers, wherein the combined
features of good RF performance, small size, low coil power dissipation
and high reliability make it a preferred method of Transmit-Receive
switching
The TO-5 relay, originally conceived and developed by Teledyne, has
become one of the industry standards for low-level switching from dry circuit
to 1 ampere. Designed for high-density PC board mounting, the Series
732 relays are some of the most versatile ultraminiature relays available
because of their small size and low coil power dissipation.
The following unique construction features and manufacturing techniques
provide excellent resistance to environmental extremes and overall high
reliability:
The 732 feature:
•All welded construction.
• Unique uni-frame design providing high magnetic efficiency and
mechanical rigidity.
• High force/mass ratios for resistance to shock and vibration.
Part Numbering System
732
Relay Series
Ground Pin Option
(See Appendix)
Pad Option
(See Appendix)
Y
M4
-
26
/
S
Q
Q = Solder-Coated Leads
1
G = Gold-Plated Leads (RoHS Compliant)
R = RoHS Compliant Solder
2
S = 0.187” Leads
No Suffix = 0.75” Leads
Nominal Coil Voltage
(26 = 26.5 V, See Page 2 for more Voltages)
ENVIRONMENTAL AND
PHYSICAL SPECIFICATIONS
Temperature
(Ambient)
Storage
Operating
–65°C to +125°C
–55°C to +85°C
10 g’s to 500 Hz
30 g’s,
6ms half sine
Hermetically sealed
0.09 oz. (2.55g) max.
INTERNAL CONSTRUCTION
UPPER
STATIONARY
CONTACT
UNI-FRAME
ARMATURE
LOWER
STATIONARY
CONTACT
MOVING
CONTACT
Vibration
(General Note I)
Shock
(General Note I)
Enclosure
Weight
© 2015 TELEDYNE RELAYS
(800) 284-7007 • www.teledynerelays.com
732 Page 1
732\122015\Q4
DPDT Non-Latching
Commercial Electromechanical Relay
SERIES 732
GENERAL ELECTRICAL SPECIFICATIONS (@25°C)
Contact Arrangement
Rated Duty
Contact Resistance
Contact Load Rating (DC)
2 Form C (DPDT)
Continuous
0.15
Ω
max.;
Resistive:
Inductive:
Lamp:
Low level:
0.25
Ω
max. afterlife at A / 28 Vdc
1 A/ 28 Vdc
200 mA/ 28 Vdc (320mH)
100 mA / 28 Vdc (320mH)
10 to 50
μA
@ 10 to 50 mV
Series 732
Contact Load Rating (AC)
Contact Life Ratings
Contact Overload Rating
Coil Operating Power
Contact Carry Rating
Operate Time
Release Time
Intercontact Capacitance
Insulation Resistance
Dielectric Strength
Negative Coil Transient (Vdc)
Diode P.I.V. (Vdc)
732TN Transistor
Characteristics
Resistive: 250 mA / 115Vac, 60 and 400 Hz (Case not grounded)
100 mA / 115 Vac, 60 and 400 Hz (Case grounded)
10,000,000 cycles (typical) at low level
1,000,000 cycles (typical) at 0.5 A / 28 Vdc resistive
100,000 cycles min. at all other loads specified above
2 A / 28 Vdc Resistive (100 cycles min.)
200 mW typical at nominal rated voltage
Contact Factory
6.0 msec max. at nominal rated coil voltage
732: 3.0 ms max.
0.4 pf typical
1,000 MΩ min. between mutually isolated terminals
350 Vrms (60 Hz) @ atmospheric pressure
2.0 Vdc Max.
60 Vdc Min.
Base Voltage to Turn Off (Vdc)
Emitter-Base breakdown Voltage (BV
EBO
) (Vdc)
Collector-Base breakdown Voltage (BV
CBO
) (Vdc)
0.3 min
6.0 min
60 min
732D, 732TN: 7.5 ms max.
DETAILED ELECTRICAL SPECIFICATIONS (@25°C)
BASE PART NUMBERS (732, 732D, 732TN)
Coil Voltage
Coil Resistance (Ohms ±20%)
Pick-up Voltage (Vdc, Max.) Pulse Operation
732TN Base Current to Turn On (mAdc, min.)
PERFORMANCE CURVES (Note 2)
TYPICAL RF PERFORMANCE
TYPICAL DC CONTACT RATING (RESISTIVE)
732-5
732D-5
732TN-5
732-6
732D-6
732TN-6
732-9
732D-9
732TN-9
732-12
732D-12
732TN-12
732-18
732D-18
732TN-18
732-26
732D-26
732TN-26
Nom.
Max.
5.0
7.5
100
3.5
1.5
6.0
10.0
200
4.5
1.00
9.0
15.0
400
6.8
0.75
12.0
20.0
850
9.0
0.47
18.0
30.0
1600
13.5
0.38
26.5
40.0
3300
18.0
0.24
LOAD VOLTAGE (VDC)
0
.1
.2
.3
.4
10
20
30
40
50
60
70
.01
dB
INSE
RTIO
N
LOSS
300
250
200
150
100
50
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.92
1.22
TU
RE
TS
1.07
TAC
CON
OSS
ACR
ES
1.02
N
L
ATIO
SS P O
1.01
ISOL
ACRO
TION
ISOLA
1.00
1.00
0.5
.1
.5
1.0
SS (V
RN LO
SWR)
FREQUENCY (GHz)
VSWR
GENERAL NOTES
1. Relay contacts will exhibit no chatter in
excess of 10 μsec or transfer in excess
of 1 μsec.
2. “Typical” characteristics are based on
available data and are best estimates.
No on-going verification tests are
performed.
3. Unless otherwise specified, parameters
are initial values.
4. Relays can be supplied with a spacer
pad. See appendix.
LOAD CURRENT (AMPS DC)
FIGURE 1
FIGURE 2
732 Page 2
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2015 TELEDYNE RELAYS
732\122015\Q4
DPDT Non-Latching
Commercial Electromechanical Relay
SERIES 732
OUTLINE DIMENSIONS
CASE DETAIL
.370
(9.40)
DIA. MAX.
.335
(8.51)
DIA. MAX.
Series 732
TERMINAL LOCATIONS AND PIN NUMBERING (REF. ONLY)
(Viewed from Terminals)
.385 (9.76) MAX.
WIRE LEAD: .75 (19.05) MIN.
(.05)
.017 (.43) +.002 (.03) DIA.
–.001
(Viewed From Terminals)
SCHEMATIC DIAGRAMS
0 1
732
732D
732TN
NOTES:
1. RELAY CONTACTS WILL EXHIBIT NO CHATTER IN EXCESS OF 10
ΜSEC
OR TRANSFER IN EXCESS OF 1
ΜSEC.
2. “TYPICAL” CHARACTERISTICS ARE BASED ON AVAILABLE DATA AND ARE BEST ESTIMATES. NO ON-GOING VERIFICATION
TESTS ARE PERFORMED.
3. UNLESS OTHERWISE SPECIFIED, PARAMETERS ARE INTIAL VALUES.
4. FOR REFERENCE ONLY. COIL RESISTANCE NOT DIRECTLY MEASURABLE ON 732TN RELAYS.
5. CIRCUIT IS TYPICAL FOR ALL SERIES 732TN. VALUES SHOWN ARE FOR 732TN-5 RELAY AND APPLY FOR FULL
TEMPERATURE RANGE.LIMIT BASE-EMITTER CURRENT TO 15 MADC.
6. UNLESS OTHERWISE SPECIFIED, RELAYS WILL BE SUPPLIED WITH EITHER GOLD-PLATED OR SOLDER-COATED LEADS.
7. THE SLASH AND CHARACTERS APPEARING AFTER THE SLASH ARE NOT MARKED ON THE RELAY.
TYPICAL LOGIC INTERFACE
(See Note
5)
Vr
Vcc
Pin 1
Notes:
Logic 1 activates the relay.
Logic 0 de-activates the relay.
Vcc = logic bias power.
Vr = coil energization voltage.
Logic element
1 = 0.50 to 3.00mA
0 = 0.3Vdc min.
Pin 10
Pin 9
© 2015 TELEDYNE RELAYS
(800) 284-7007 • www.teledynerelays.com
2
3
4
732 Page 3
732\122015\Q4
1
9
6
7
8
2
3
4
1
9
6
8
7
2
3
1
4
9
6
8
7
