3429-5005 datasheet, PDF - EEWORLD Datasheet

3429-5005: Description26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, WIRE WRAP; CategoryThe connector The connector; File Size248KB，4 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

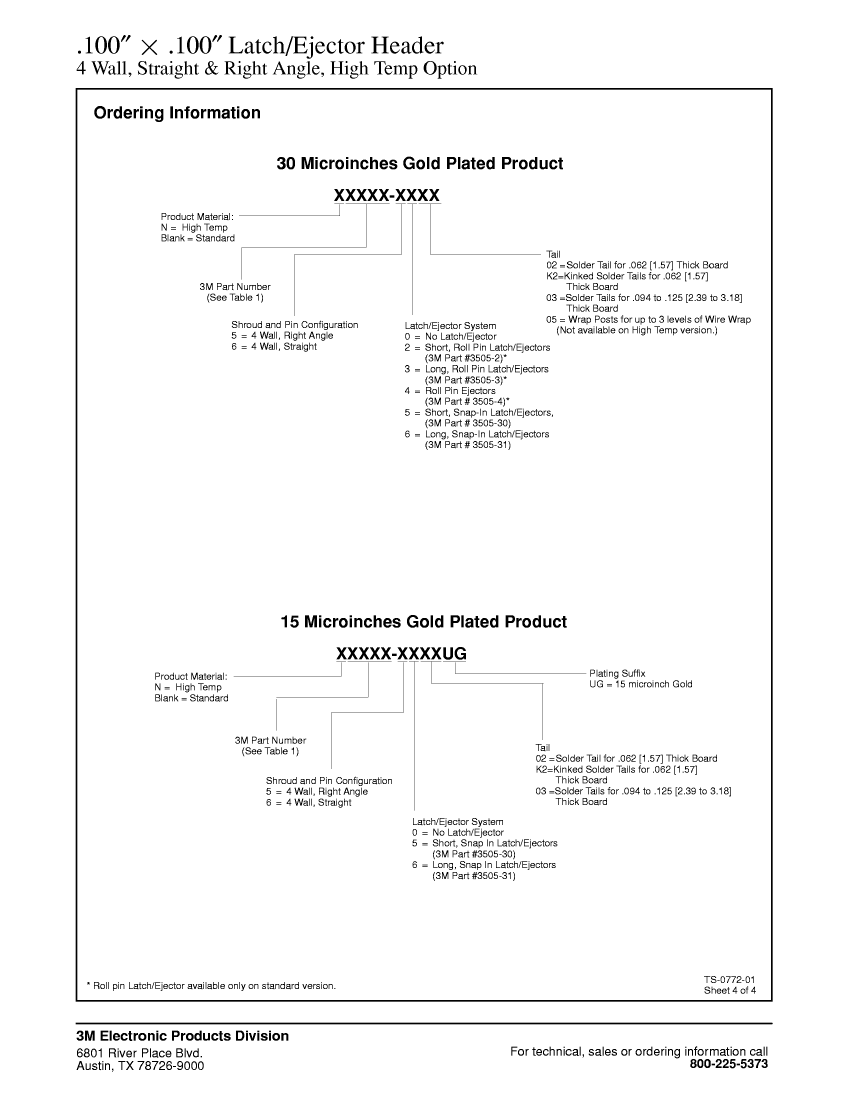

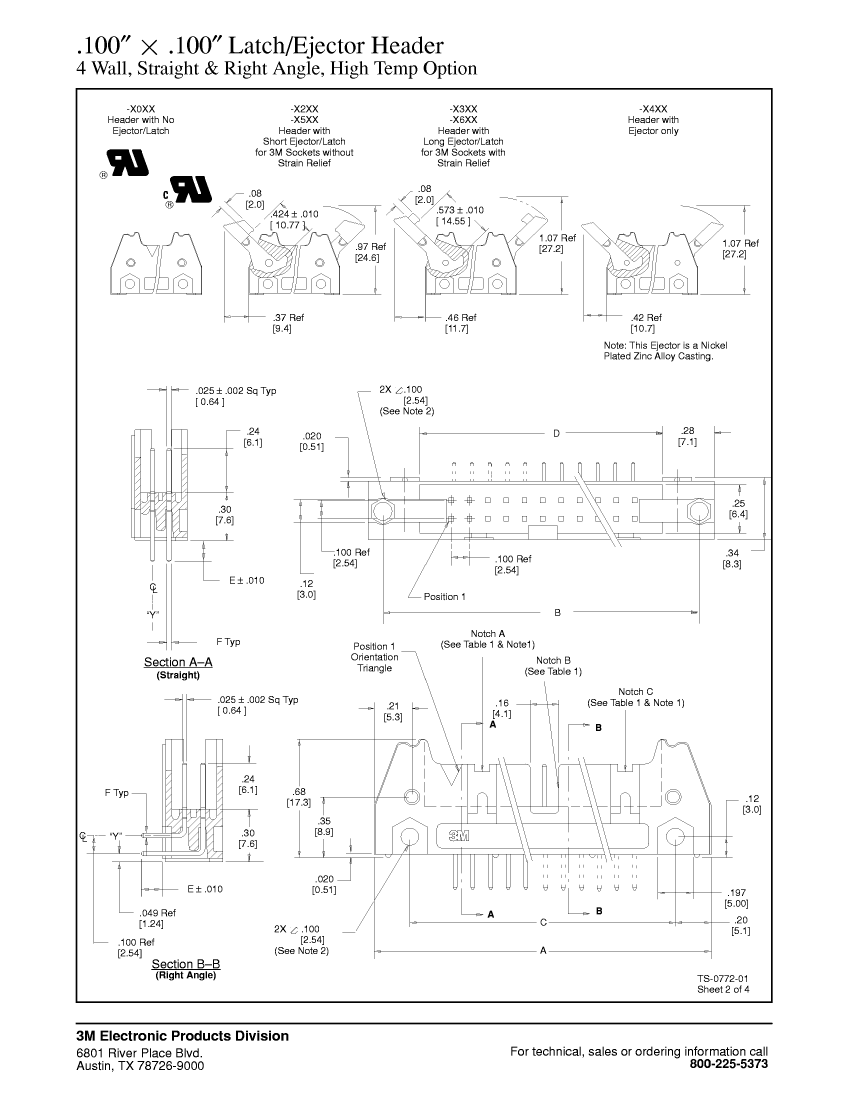

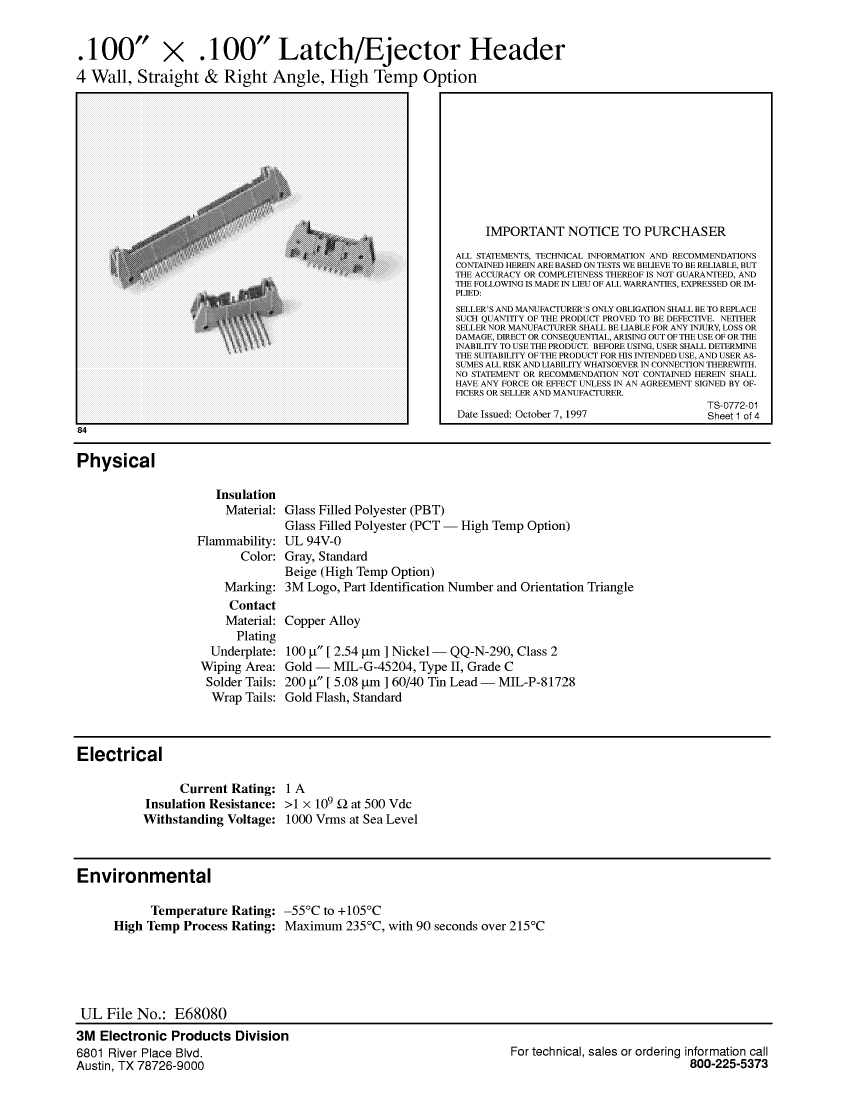

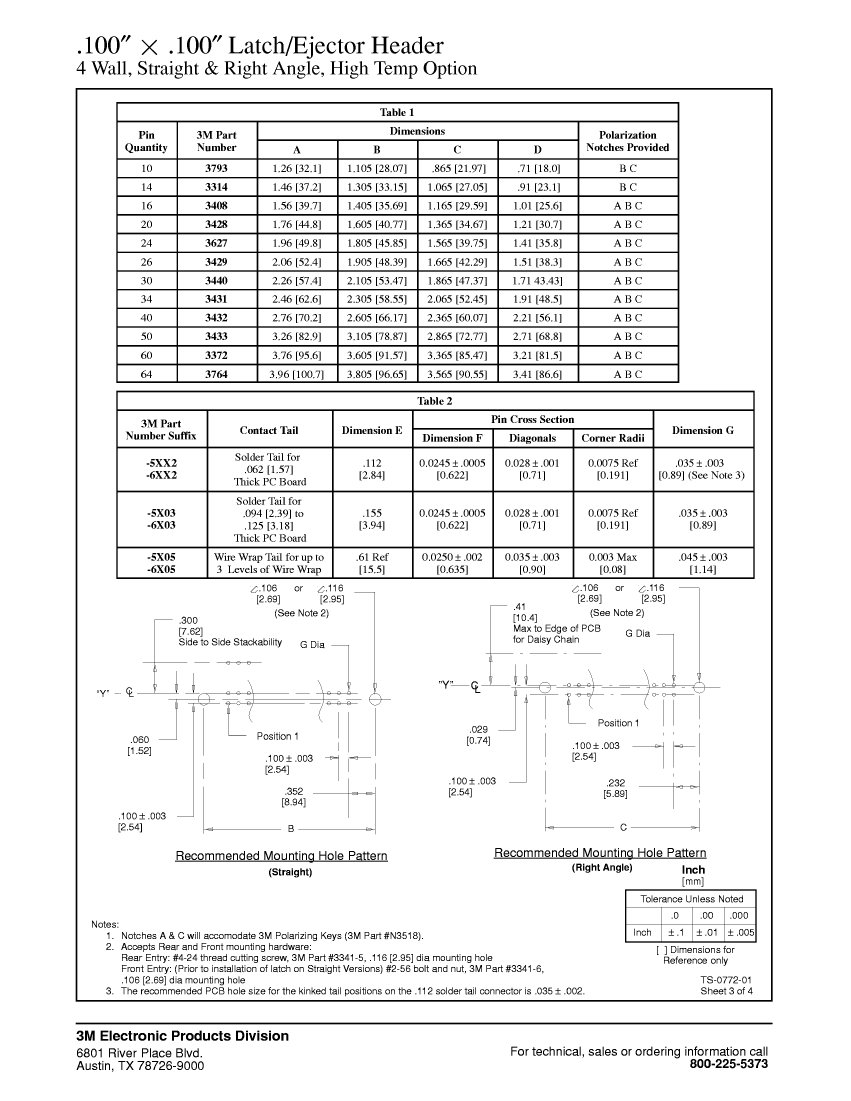

3429-5005 Overview

26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, WIRE WRAP

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Board mount options	HOLE .099-.111
body width	0.339 inch
subject depth	0.681 inch
body length	2.059 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	GOLD FLASH OVER NICKEL (100)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	3429
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	CTR W/GUIDE SLOTS
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1
