18 GHz N, TNC, SMA
Connectors for IW Microwave Cable
Product Description
Working with IW Microwave, Winchester
Electronics developed a family of KINGS
®
precision stainless steel N, TNC, and SMA
connectors designed for IW Microwave’s
1801, 2301, and 2801 series microwave
cables.
These cables are all double shielded and
feature IW Microwave’s proprietary method
to apply even and concentric layers of PTFE
lamination onto the center conductor,
resulting in a cable that is lighter in weight,
smaller in diameter, and has low attenuation.

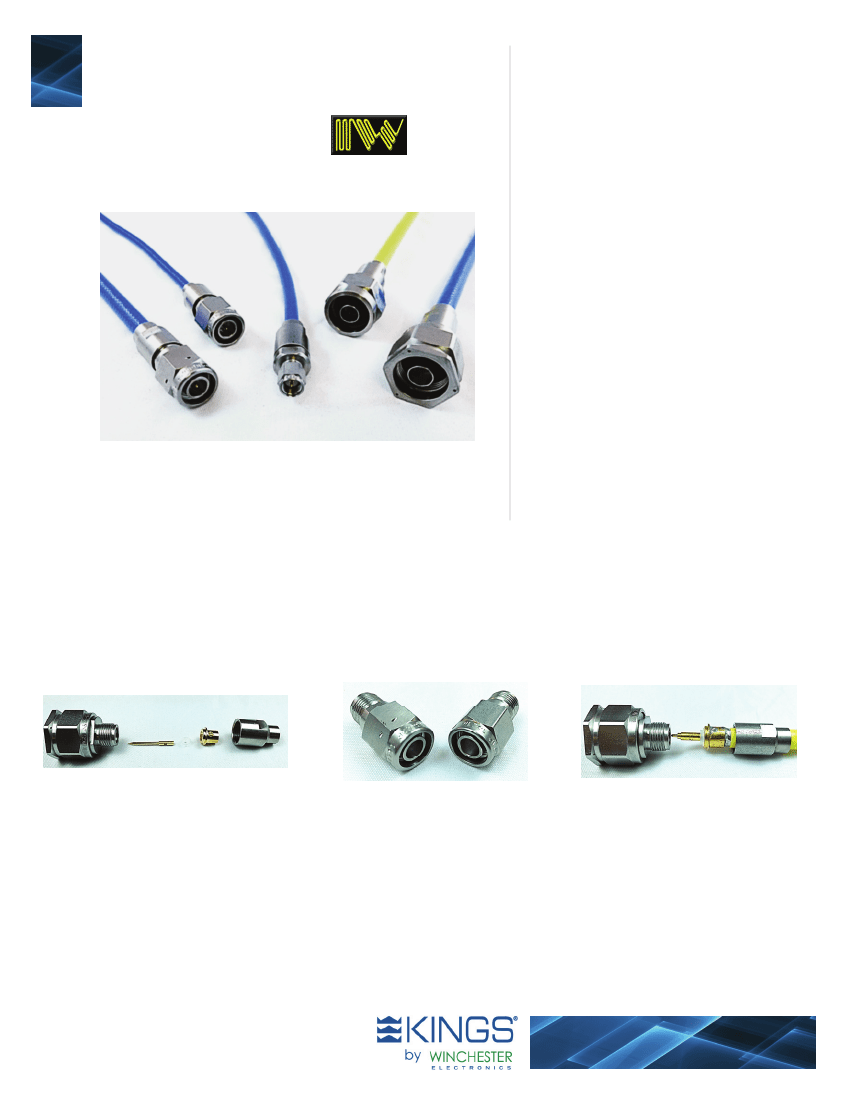

Our 339 Series N, 338 Series TNC, and 087
Series SMA connectors were designed for
these cables and perform to 18 GHz with a
low VSWR of <1.17:1.
All connectors are easy to terminate and
feature a solder center contact, solder sleeve
to terminate the silver-plated copper foil and
braid, and threaded front and rear bodies that
are tightened together using a standard
wrench.
• Our connector designs contain
up to 50% fewer components and
are faster to terminate compared
to other connector options.
• Coupling nuts are available with
and without lock wire holes for
added reliability in high-vibration
applications.
• The solder / clamp termination
method ensures optimal electrical
performance, achieving an overall
cable assembly VSWR of <1.3:1.
