FSA3000 — Two-Port, High-Speed, MHL Switch
January 2016
FSA3000 — Two-Port, High-Speed, MHL™ Switch
Features
Low On Capacitance: 2.7 pF/4.1 pF MHL/USB
(Typical)
Low Power Consumption: 30 μA Maximum
MHL Data Rate: 4.92 Gbps (f
3dB
= 2.46 GHz)
Packaged in 10-Lead MicroPak™
Over-Voltage Tolerance (OVT) on all USB and MHL
Ports; Up to 5.25 V without External Components
Description
The FSA3000 is a bi-directional, low-power, two-port,
high-speed, USB2.0 and video data switch that supports
the Mobile High-Definition Link (MHL) Specification Rev.
2.0. Configured as a double-pole, double-throw (DPDT)
switch for data, FSA3000 is optimized for USB2.0 and
MHL data sources.
The FSA3000 contains circuitry on the switch I/O pins
that allows the device to withstand an over-voltage
condition in applications where the V
CC
supply is powered
off (V
CC
=0). The FSA3000 minimizes current
consumption even when the voltage applied to the control
pins is lower than the supply voltage (V
CC
). This feature is
especially valuable in mobile applications, such as cell
phones; allowing direct interface with the general-purpose
I/Os of the baseband processor. Other applications
include switching and connector sharing in portable cell
phones, digital cameras, and notebook computers.
Applications
Cell Phones and Digital Cameras
Ordering Information
Part Number
FSA3000L10X
FSA3000L10X_F131
Top Mark
LK
LK
Operating
Temperature Range
-40 to +85°C
Package
10-Lead, MicroPak
TM
1.6 x 2.1 mm JEDEC MO255B
10-Lead, MicroPak
TM
1.6 x 2.1 mm JEDEC MO255B,
Package Rotated 90° in Tape and Reel
USB+
MH L+
USB-
MH L-
S el
C o n tro l
D+
D-
/O E

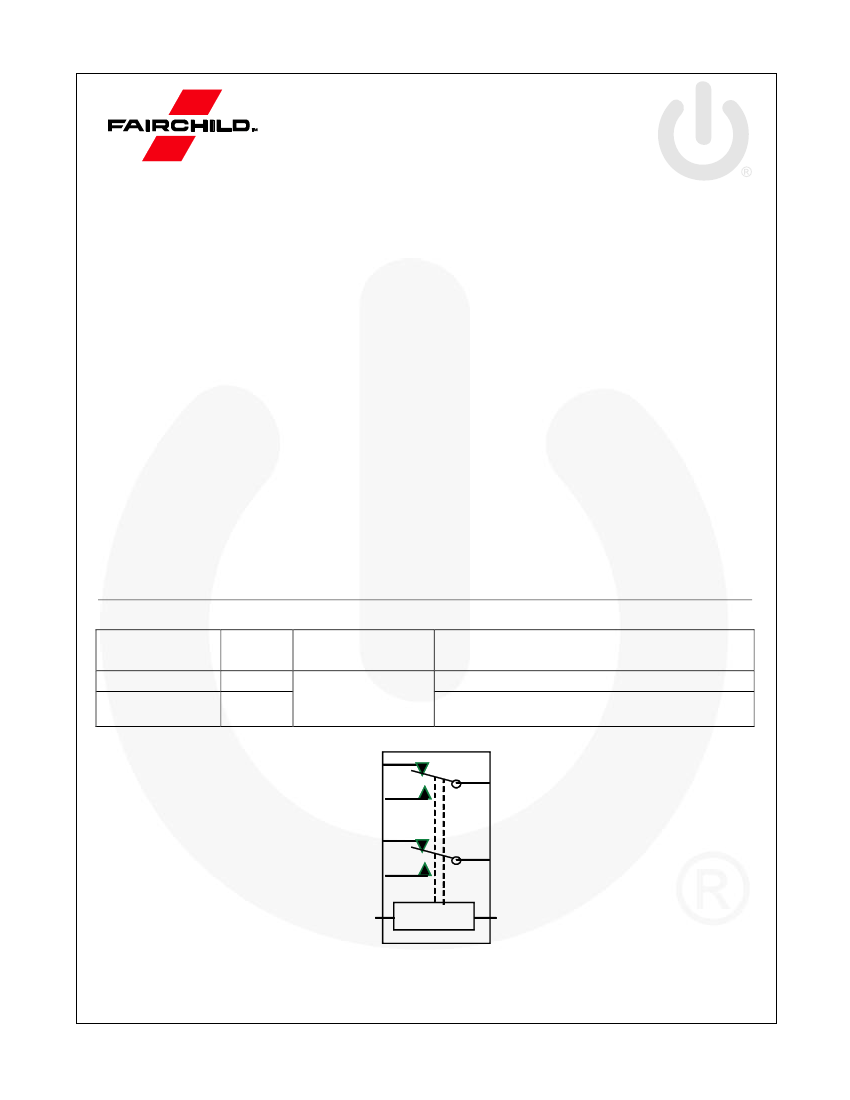

Figure 1. Analog Symbol
