39027-1504: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39027-1504 Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

39027-1504 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	QF 50, EJECT LEVER, POLARIZED, SHROUDED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5576
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

Ribbon Cable

Connectors

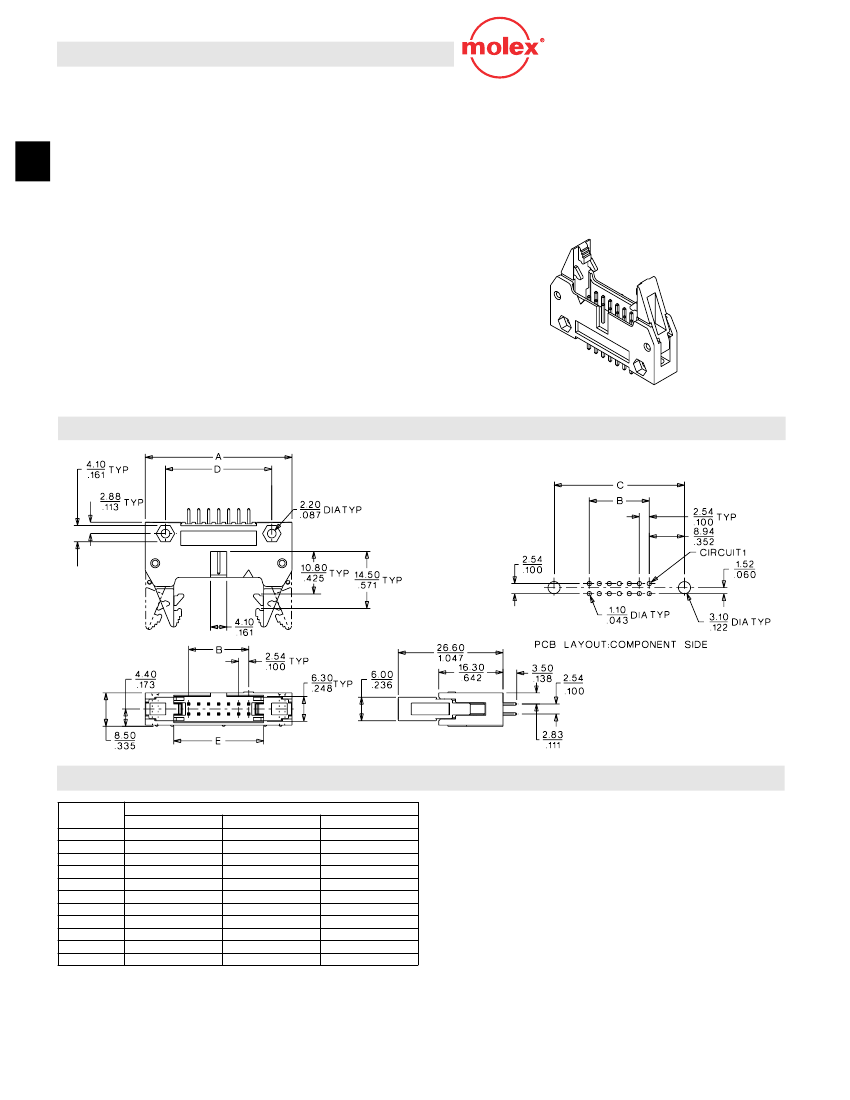

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

10 to 64 circuits

s

Tin plated on solder tail

s

Complies with industry standard DIN 41654

s

Polarized

s

Selective Gold plating options for contacts

s

Eject levers allow end-to-end stacking with or without

strain relief with no loss of board space

Reference Information

Packaging: Tray

Designed In: Millimeters

Mates With: 5320

Electrical

Voltage: 250V

Current: 1.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 500V

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: Glass-filled polyester

Contact: Brass

Temperature: -40 to +105˚C

2.54mm (.100) Pitch

QF 50

™

Shrouded Header

5576

Vertical

With Eject Levers

B

ORDERING INFORMATION AND DIMENSIONS

Circuits

10

14

16

20

26

30

34

40

50

60

64

Plating NBGS1

39-27-1103

39-27-1143

39-27-1163

39-27-1203

39-27-1263

39-27-1303

39-27-1343

39-27-1403

39-27-1503

39-27-1603

39-27-1643

Order No.

Plating NBGS2

39-27-1104

39-27-1144

39-27-1164

39-27-1204

39-27-1264

39-27-1304

39-27-1344

39-27-1404

39027-1504

39-27-1604

39-27-1644

Plating NBT2

39-28-5105

39-25-5145

39-28-5165

39-28-5205

39-28-5265

39-28-5305

39-28-5345

39-28-5405

39-28-5505

Plating NBGS1: 39

µ

" (1

µ

m) min. Nickel underplate. Contact area: 0.1

µ

m min. Gold.

Solder area: 3

µ

m min. Tin/Lead.

Plating NBGS2: 39

µ

" (1

µ

m) min. Nickel underplate. Contact area: 0.76

µ

m min. Gold.

Solder area: 3

µ

m min. Tin/Lead.

Plating NBT2: 20

µ

" (0.5

µ

m) min. Nickel underplate. Contact and solder area: 39

µ

" (1

µ

m) min. Tin.

B-20

990

39027-1504 Related Products

	39027-1504	39-25-5145
Description	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal
Reach Compliance Code	unknown	unknown
Other features	QF 50, EJECT LEVER, POLARIZED, SHROUDED	QF 50, EJECT LEVER, POLARIZED, SHROUDED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	5576	5576
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	50	14
