856-10-020-40-001000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 856-10-020-40-001000

Preview

856-10-020-40-001000: DescriptionHeaders u0026 Wire Housings .050" Z-Bend Target Conn; CategoryThe connector The connector; File Size569KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

856-10-020-40-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	856-10-020-40-001000	-	-	View	Buy Now

856-10-020-40-001000 Overview

Headers u0026 Wire Housings .050" Z-Bend Target Conn

856-10-020-40-001000 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	compliant
body width	0.087 inch
subject depth	0.268 inch
body length	1.015 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Manufacturer's serial number	856
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

SPRING-LOADED

CONNECTORS

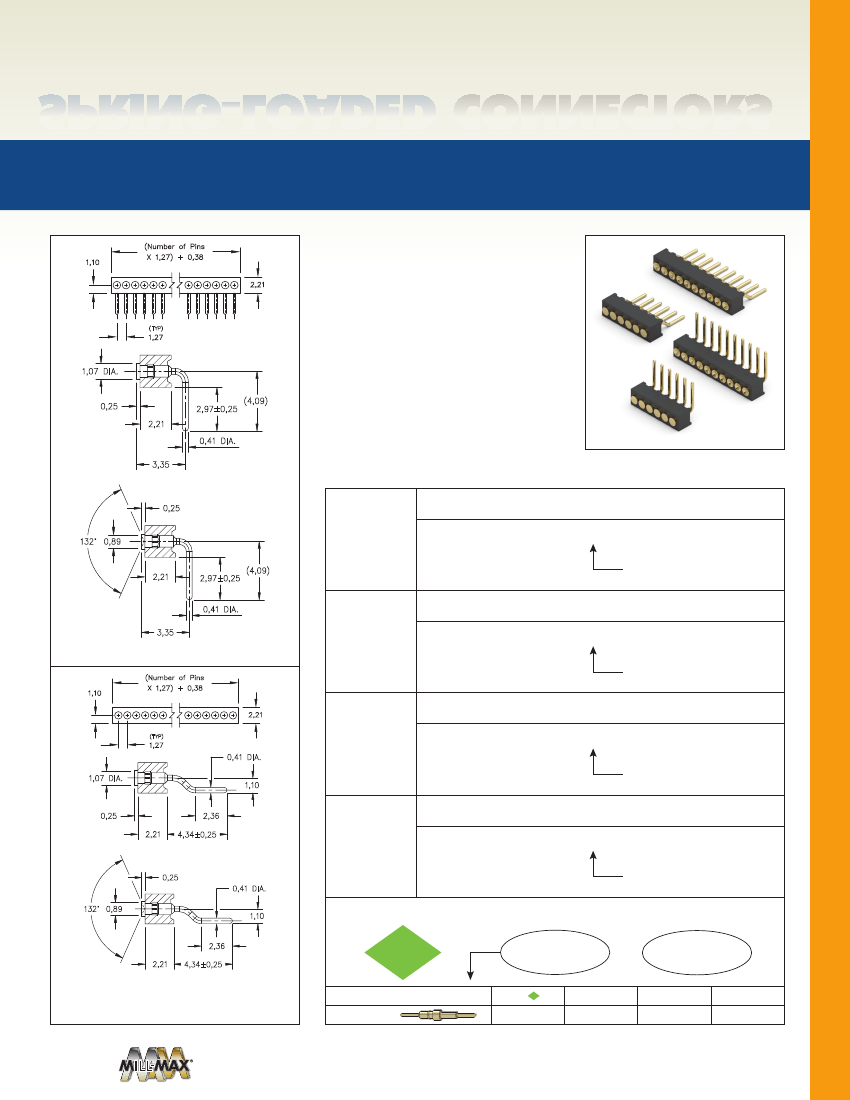

SERIES 856 • 1,27 GRID FLAT & CONCAVE FACE TARGET CONNECTORS

FOR SPRING

-

LOADED ASSEMBLIES • SINGLE ROW STRIPS

• Series 856 Spring Target Connectors, supplied

in single row strips

• Spring Target Connectors are offered with a

flat or concave surface for making contact

with our standard 0,48 dia. spring pin plungers.

The target connectors provide an excellent

gold-plated conductive path back to the

board-mounted spring pin connector

• Target connectors use MM #1831-1 and #1931-1

pins. See page 223.2 for details

• Insulators are high temperature thermoplastic

FIG. 1

ORDERING INFORMATION

Series 856...20-001

Flat face / Right Angle

FIG. 1

856-10-0_ _-20-001000

Specify number of pins

01-20

Series 856...20-002

Concave face / Right Angle

FIG. 2

856-10-0_ _-20-002000

Specify number of pins

01-20

Series 856...40-001

Flat face / Surface Mount

Specify number of pins

01-20

Series 856...40-002

Concave face / Surface Mount

FIG. 3

FIG. 4

856-10-0_ _-40-002000

Specify number of pins

01-20

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

10

0,25μm Au

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Coplanarity 0,13. For Pin counts >20 positions, consult

Technical Support.

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 21.3 | SPRING-LOADED CONNECTORS

FIG. 3

856-10-0_ _-40-001000
