FT812Q-R Overview

Video IC Development Tools FT812 Module 5.0 TFT LCD 8Ohm 1W

FT812Q-R Parametric

Parameter Name	Attribute value
Product Category	Video ICs
Manufacturer	FTDI [Future Technology Devices International Ltd.]
RoHS	Details
Packaging	Reel
Moisture Sensitive	Yes
Factory Pack Quantity	3000

Preview

Download Datasheet

View All

FT81X Embedded Video Engine Datasheet

Version 1.4

Document No.: BRT_000002

Clearance No.: BRT#004

Bridgetek Pte Ltd

FT81x

(Advanced Embedded Video Engine)

The FT81x is a series of easy to use graphic

controllers targeted at embedded applications to

generate high-quality Human Machine Interfaces

(HMIs). It has the following features:



Advanced Embedded Video Engine(EVE) with

high resolution graphics and video playback

FT81x functionality includes graphic control,

audio control, and touch control interface.

Pinout backward compatible

(FT810) and FT801 (FT811).

with

FT800



Support for LCD display with resolution up to

SVGA (800x600) and formats with data enable

(DE) mode or VSYNC/HSYNC mode

Support landscape and portrait orientations

Display enable control output to LCD panel

Integrated 1MByte graphics RAM, no frame

buffer RAM required

Support playback of motion-JPEG encoded AVI

videos

Mono audio channel output with PWM output

Built-in sound synthesizer

Audio wave playback for mono 8-bit linear PCM,

4-bit ADPCM and µ-Law coding format at

sampling frequencies from 8 kHz to 48 kHz.

Built-in digital filter reduces the system design

complexity of external filtering

PWM output for display backlight dimming

control

Advanced object oriented architecture enables

low cost MPU/MCU as system host using SPI

interfaces

Support SPI data lines in single, dual or quad

mode; SPI clock up to 30MHz

Power mode control allows the chip to be put in

power down, sleep and standby states

Supports I/O voltage from 1.8V to 3.3V

Internal voltage regulator supplies 1.2V to the

digital core

Build-in Power-on-reset circuit

-40°C to 85°C extended operating temperature

range

Available in a compact Pb-free, VQFN-48 and

VQFN-56 package, RoHS compliant



Support multiple widgets for simplified design

implementation

Built-in graphics operations allow users with

little expertise to create high-quality displays

Support

4-wire

(FT810/FT812)

resistive

touch

screen

Support capacitive touch screen with up to 5

touches detection (FT811/FT813)

Hardware engine can recognize touch tags and

track touch movement. Provides notification for

up to 255 touch tags.

Enhanced sketch processing

Programmable interrupt

interrupts to host MCU

controller

provides



Built-in 12MHz crystal oscillator with PLL

providing programmable system clock up to

60MHz

Clock switch command for internal or external

clock source. External 12MHz crystal or clock

input can be used for higher accuracy.

Video RGB parallel output; configurable to

support PCLK up to 60MHz and R/G/B output of

1 to 8 bits

Programmable timing to adjust HSYNC and

VSYNC timing, enabling interface to numerous

displays



Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted or

reproduced in any material or electronic form without the prior written consent of the copyright holder. This product and its

documentation are supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or

implied. Bridgetek Pte Ltd will not accept any claim for damages howsoever arising as a result of use or failure of this product.

Your statutory rights are not affected. This product or any variant of it is not intended for use in any medical appliance, device or

system in which the failure of the product might reasonably be expected to result in personal injury. This document provides

preliminary information that may be subject to change without notice. No freedom to use patents or other intellectual property

rights is implied by the publication of this document. Bridgetek Pte Ltd, 178 Paya Lebar Road, #07-03, Singapore 409030.

Singapore Registered Company Number: 201542387H

FT81X Embedded Video Engine Datasheet

Version 1.4

Document No.: BRT_000002

Clearance No.: BRT#004

Table of Contents

1.1

Typical Applications....................................................... 2

Part Numbers ............................................................................. 2

3.1

3.2

3.3

3.4

3.5

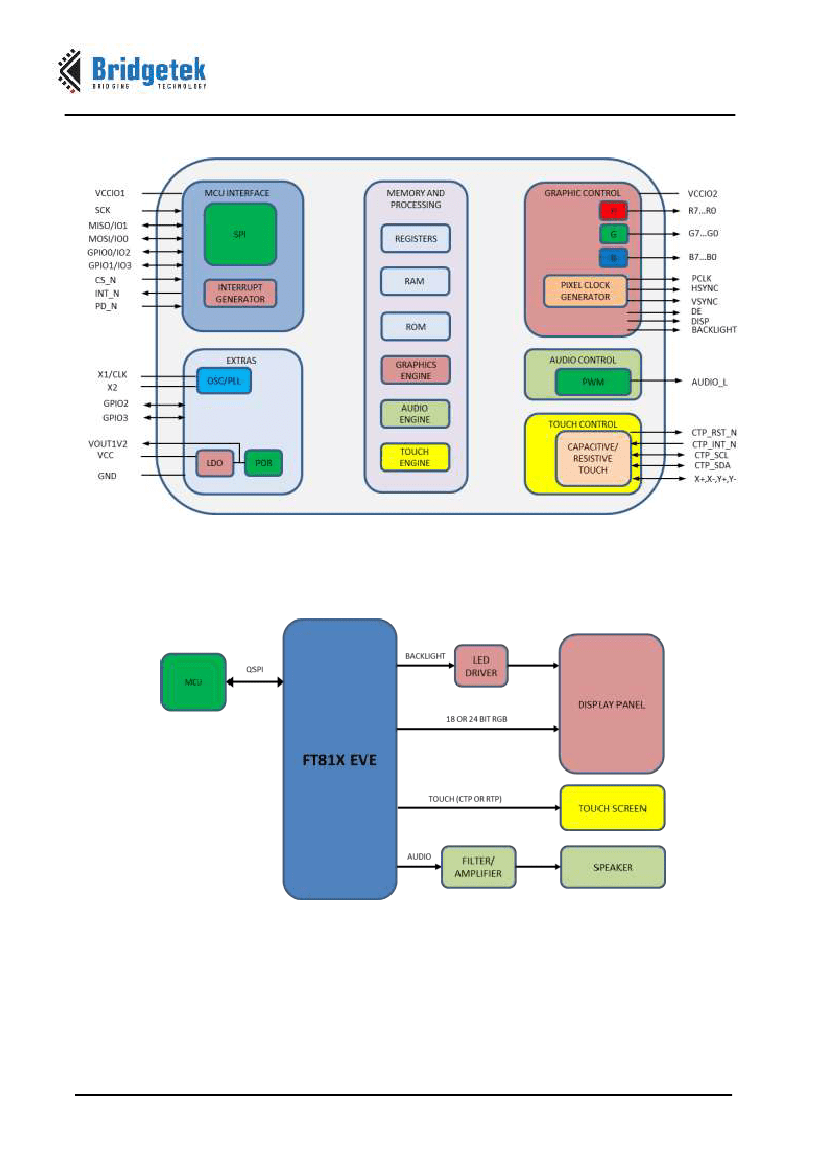

Block Diagram ............................................................... 3

Device Pin Out and Signal Description ........................... 7

FT810 VQFN-48 Package Pin Out ............................................... 7

FT811 VQFN-48 Package Pin Out ............................................... 7

FT812 VQFN-56 Package Pin Out ............................................... 8

FT813 VQFN-56 Package Pin Out ............................................... 8

Pin Description .......................................................................... 9

4.1

Function Description ................................................... 13

Quad SPI Host Interface .......................................................... 13

QSPI Interface .......................................................................................... 13

Serial Data Protocol ................................................................................... 15

Host Memory Read .................................................................................... 15

Host Memory Write.................................................................................... 16

Host Command ......................................................................................... 16

Interrupts ................................................................................................ 20

4.1.1

4.1.2

4.1.3

4.1.4

4.1.5

4.1.6

4.2

System Clock ........................................................................... 20

Clock Source ............................................................................................ 20

Phase Locked Loop .................................................................................... 21

Clock Enable ............................................................................................. 21

Clock Frequency ........................................................................................ 22

4.2.1

4.2.2

4.2.3

4.2.4

4.3

Graphics Engine ....................................................................... 22

Introduction ............................................................................................. 22

ROM and RAM Fonts .................................................................................. 23

4.3.1

4.3.2

4.4

4.5

Parallel RGB Interface ............................................................. 26

Miscellaneous Control .............................................................. 29

Backlight Control Pin ................................................................................. 29

DISP Control Pin ....................................................................................... 29

General Purpose IO pins ............................................................................ 29

Pins Drive Current Control .......................................................................... 30

4.5.1

4.5.2

4.5.3

4.5.4

4.6

Audio Engine ............................................................................ 30

Sound Synthesizer .................................................................................... 30

Audio Playback ......................................................................................... 32

4.6.1

4.6.2

FT81X Embedded Video Engine Datasheet

Version 1.4

Document No.: BRT_000002

Clearance No.: BRT#004

4.7

Touch-Screen Engine ............................................................... 33

Resistive Touch Control .............................................................................. 33

Capacitive Touch Control ............................................................................ 34

Compatibility mode ................................................................................... 35

Extended mode ......................................................................................... 35

Short-circuit protection .............................................................................. 35

Capacitive touch configuration .................................................................... 35

Touch detection in none-ACTIVE state ......................................................... 36

4.7.1

4.7.2

4.7.3

4.7.4

4.7.5

4.7.6

4.7.7

4.8

Power Management ................................................................. 36

Power supply ............................................................................................ 36

Internal Regulator and POR ........................................................................ 36

Power Modes ............................................................................................ 37

Reset and boot-up sequence....................................................................... 39

Pin Status at Different Power States ............................................................ 39

4.8.1

4.8.2

4.8.3

4.8.4

4.8.5

5.1

5.2

Memory Map ................................................................ 41

Registers.................................................................................. 41

Chip ID..................................................................................... 46

6.1

6.2

6.3

6.4

Devices Characteristics and Ratings ............................ 47

Absolute Maximum Ratings ...................................................... 47

ESD and Latch-up Specifications .............................................. 47

DC Characteristics .................................................................... 47

AC Characteristics .................................................................... 50

System clock and reset .............................................................................. 50

SPI interface timing ................................................................................... 50

RGB Interface Timing ................................................................................ 51

6.4.1

6.4.2

6.4.3

8.1

Application Examples .................................................. 53

Package Parameters .................................................... 55

Part Markings .......................................................................... 55

8.1.1 Top side ........................................................................................................ 55

8.1.3 Bottom Side .................................................................................................. 55

8.2

8.3

8.4

VQFN-48 Package Dimensions ................................................. 56

VQFN-56 Package Dimensions ................................................. 56

Solder Reflow Profile ............................................................... 56

Contact Information .................................................... 58

Appendix A – References ................................................... 59
