MC75172BDWR2G

Description
RS-485 Interface IC Quad EIA-485 Line Driver w/3 State Out
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size119KB,13 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric View All

MC75172BDWR2G Online Shopping

Suppliers Part Number Price MOQ In stock
MC75172BDWR2G - - View Buy Now

MC75172BDWR2G Overview

RS-485 Interface IC Quad EIA-485 Line Driver w/3 State Out

MC75172BDWR2G Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeSOIC
package instructionSOP, SOP20,.4
Contacts20
Manufacturer packaging code751D-05
Reach Compliance Codeunknown
ECCN codeEAR99
Factory Lead Time1 week
Differential outputYES
Number of drives4
High level input current maximum value0.00002 A
Input propertiesSTANDARD
Interface integrated circuit typeLINE DRIVER
Interface standardsV.11; X.27; EIA-422-A; EIA-485
JESD-30 codeR-PDSO-G20
JESD-609 codee3
length12.8 mm
Humidity sensitivity level3
Number of functions4
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Minimum output swing1.5 V
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP20,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
power supply5 V
Certification statusNot Qualified
Maximum receive delay
Maximum seat height2.65 mm
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountYES
technologyBIPOLAR
Temperature levelINDUSTRIAL
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature40
maximum transmission delay25 ns
width7.5 mm
Base Number Matches1

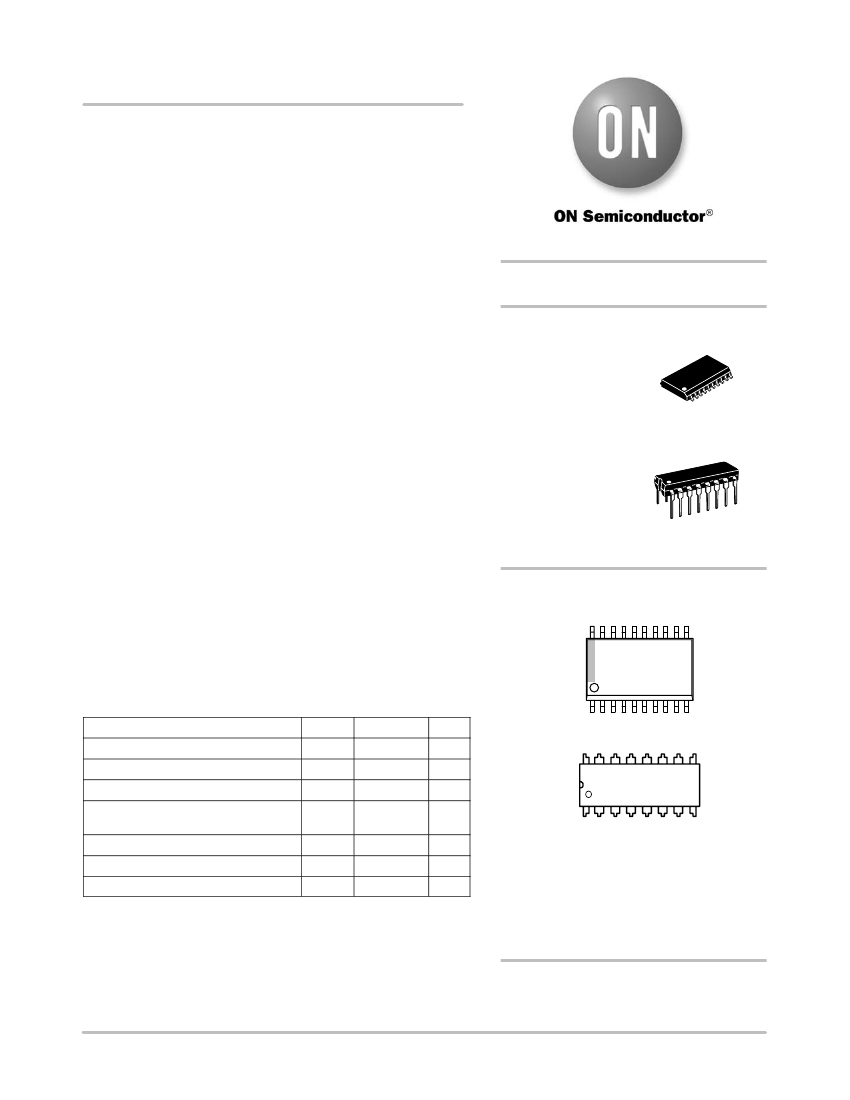

MC75172B, MC75174B
Quad EIA−485 Line Drivers
with Three−State Outputs
The ON Semiconductor MC75172B/174B Quad Line drivers are
differential high speed drivers designed to comply with the EIA−485
Standard. Features include three−state outputs, thermal shutdown, and
output current limiting in both directions. These devices also comply
with EIA−422−A, and CCITT Recommendations V.11 and X.27.
The MC75172B/174B are optimized for balanced multipoint bus
transmission at rates in excess of 10 MBPS. The outputs feature wide
common mode voltage range, making them suitable for party line
applications in noisy environments. The current limit and thermal
shutdown features protect the devices from line fault conditions.
These devices offer optimum performance when used with the
MC75173 and MC75175 line receivers.
Both devices are available in 16−pin plastic PDIP and 20−pin wide
body surface mount packages.
Features
http://onsemi.com
QUAD EIA−485 LINE DRIVERS
SOIC−20 WB
DW SUFFIX
CASE 751D
1
Meets EIA−485 Standard for Party Line Operation
Meets EIA−422−A and CCITT Recommendations V.11 and X.27
Operating Ambient Temperature: −40°C to +85°C
High Impedance Outputs
Common Mode Output Voltage Range: −7.0 to 12 V
Positive and Negative Current Limiting
Transmission Rates in Excess of 10 MBPS
Thermal Shutdown at 150°C Junction Temperature, (±20°C)
Single 5.0 V Supply
Pin Compatible with TI SN75172/4 and NS
mA96172/4
Interchangeable with MC3487 and AM26LS31 for EIA−422−A
Applications
Pb−Free Packages are Available*
MAXIMUM RATING
Rating
Power Supply Voltage
Input Voltage (Data, Enable)
Input Current (Data, Enable)
Applied Output Voltage, when in 3−State
Condition (V
CC
= 5.0 V)
Applied Output Voltage, when V
CC
= 0 V
Output Current
Storage Temperature
Symbol
V
CC
V
in
I
in
V
za
V
zb
I
O
T
stg
Value
−0.5, +7.0
+7.0
−24
−10, +14
±14
Self−Limiting
−65, +150
Unit
Vdc
Vdc
mA
Vdc
Vdc
°C
PDIP−16
P SUFFIX
CASE 648
1
MARKING DIAGRAMS
20
MC17517xBDW
AWLYYWWG
1
16
MC75174BP
AWLYYWWG
1
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Devices should not be operated at these limits. The “Recommended Operating
Conditions” table provides for actual device operation.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques Reference
Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2006
x
A
WL
YY
WW
G
= 2 or 4
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 11 of this data sheet.
1
July, 2006 − Rev. 4
Publication Order Number:
MC75172B/D
