54F374/B2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F374/B2A

54F374/B2A: DescriptionBus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC20,; Categorylogic logic; File Size265KB，7 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54F374/B2A Overview

Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC20,

54F374/B2A Parametric

Parameter Name	Attribute value
Maker	YAGEO
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	86 mA
propagation delay (tpd)	11.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

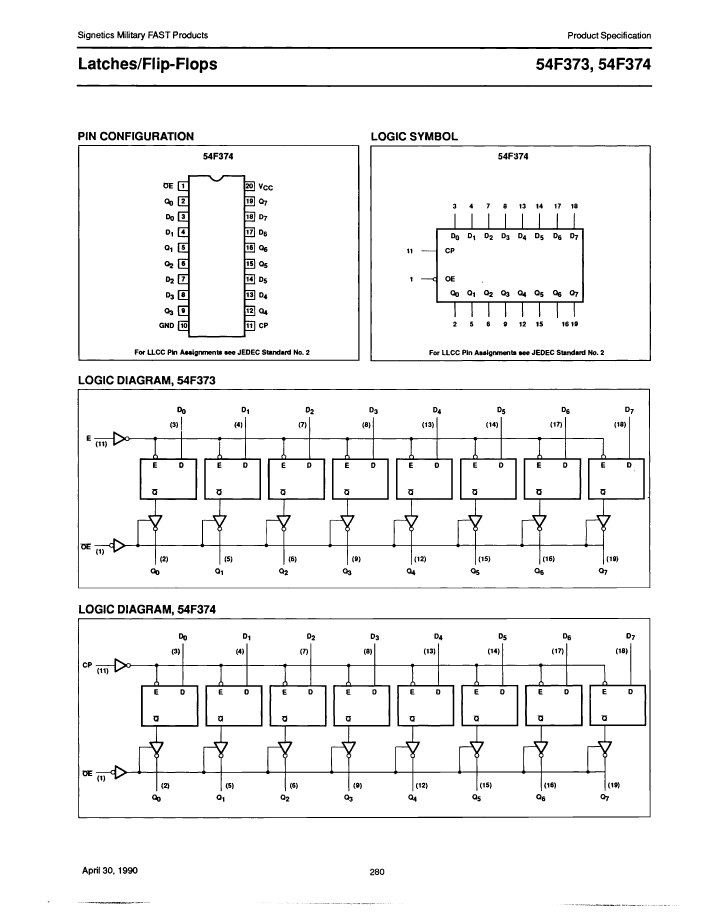

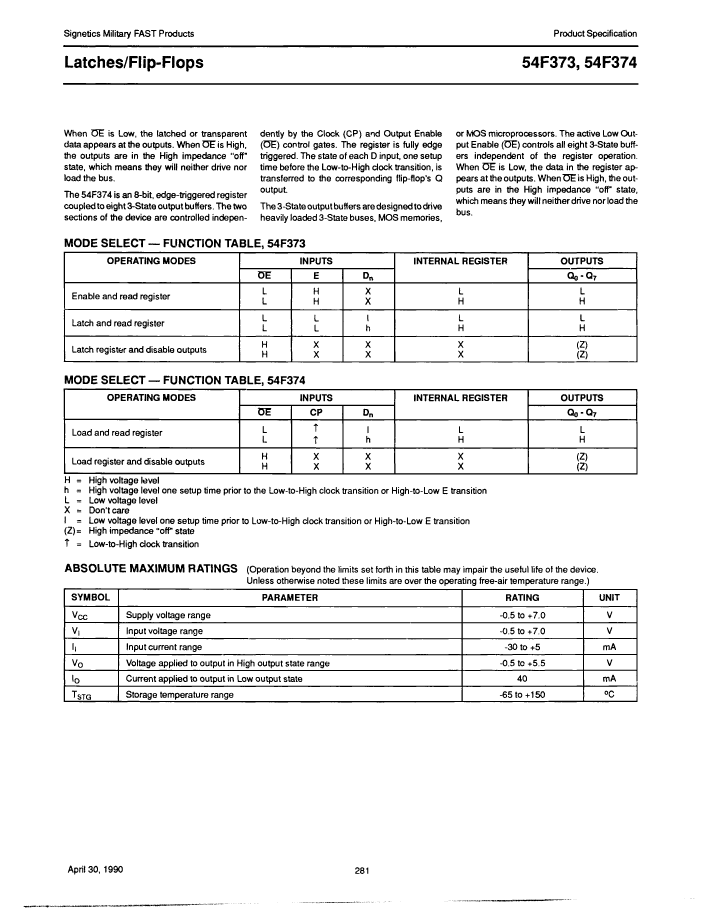

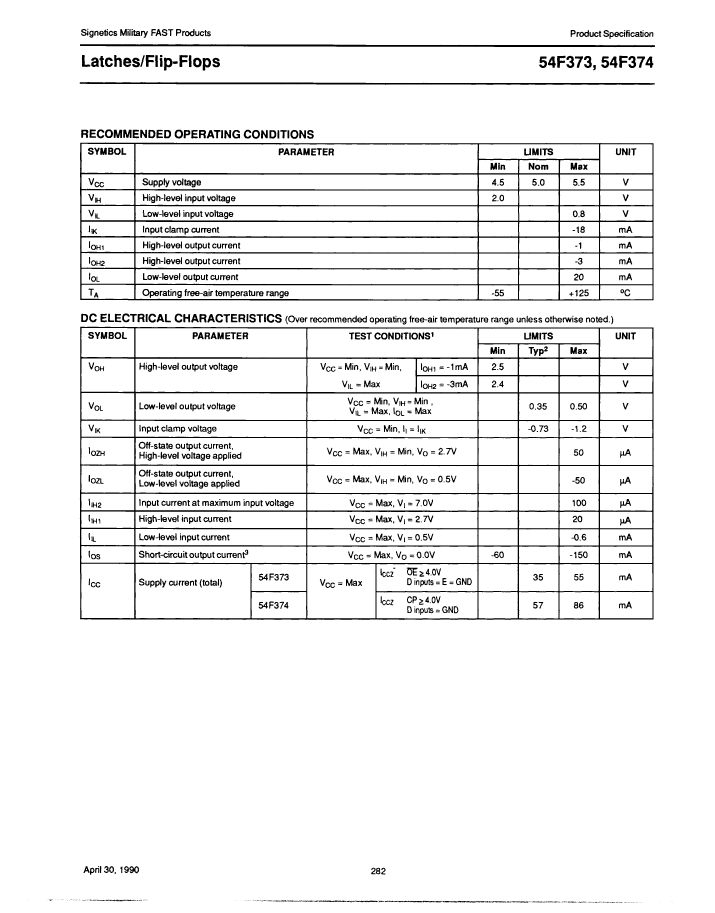

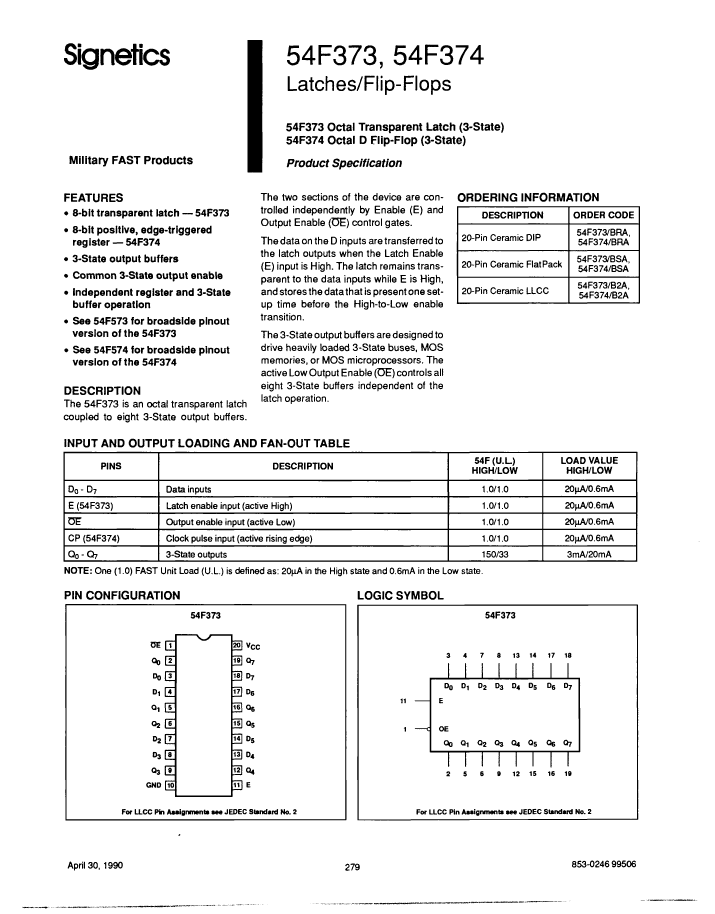

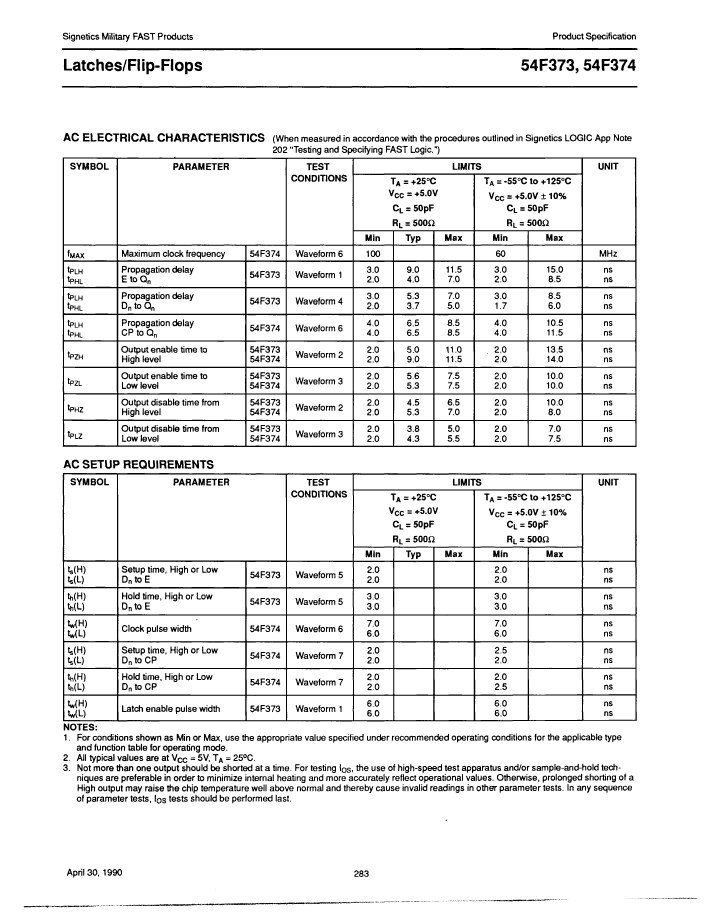

Preview

Download Datasheet

View All

54F374/B2A Related Products

	54F374/B2A	54F373/BRA	54F373/B2A	54F373/BSA	54F374/BSA	54F374/BRA
Description	Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC20,	Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP20,	Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC20,	Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDFP20,	Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDFP20,	Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP20,
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown
Base Number Matches	1	1	1	1	1	1
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	-
JESD-30 code	S-CQCC-N20	R-CDIP-T20	S-CQCC-N20	R-CDFP-F20	R-CDFP-F20	-
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	-
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	-
Number of digits	8	8	8	8	8	-
Number of functions	1	1	1	1	1	-
Number of ports	2	2	2	2	2	-
Number of terminals	20	20	20	20	20	-
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	-
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	-
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	-
Maximum supply current (ICC)	86 mA	55 mA	55 mA	55 mA	86 mA	-
propagation delay (tpd)	11.5 ns	8.5 ns	8.5 ns	8.5 ns	11.5 ns	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	-
surface mount	YES	NO	YES	YES	YES	-
technology	TTL	TTL	TTL	TTL	TTL	-
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	FLAT	FLAT	-
Terminal location	QUAD	DUAL	QUAD	DUAL	DUAL	-
