AXL F BK PB
Axioline F bus coupler for PROFIBUS DP
Data sheet
8419_en_02
1
Description
© PHOENIX CONTACT 2015-10-12

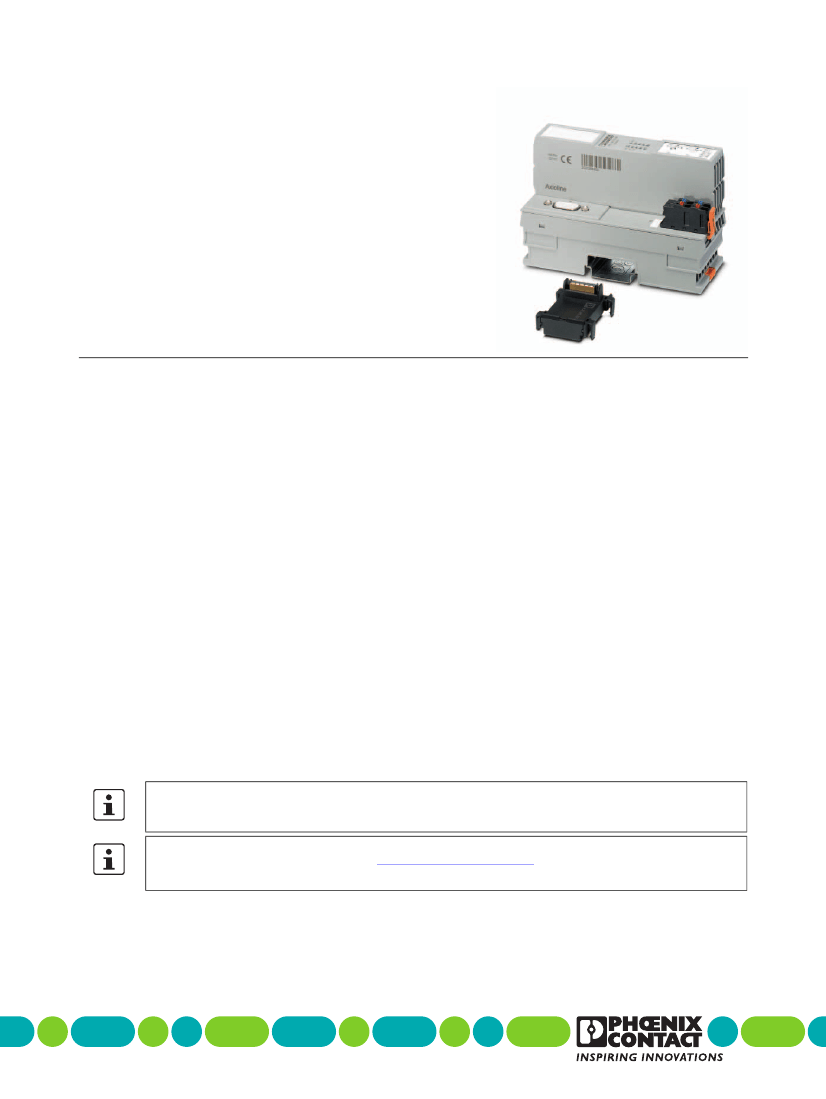

The bus coupler represents the link between a PROFIBUS
network and the Axioline F system.
You can connect up to 63 Axioline F devices to an existing
PROFIBUS system with the help of the bus coupler.
PROFIBUS features
Features of Axioline F
–
–
–
Up to 63 additional Axioline F devices can be connect-
ed
Typical cycle time of the Axioline F local bus is around
10 μs
Diagnostic and status indicators
–
–
–
–
–
–
–
–
–
–
PROFIBUS connection via 9-pos. D-SUB female con-
nector
Interface physics RS-485 for PROFIBUS
Electrical isolation between PROFIBUS interface and
logic
DP/V1 for Class 1 and Class 2 masters
Data transmission speed of 9.6 kbps up to 12 Mbps
(automatic detection)
Rotary encoding switches for setting the PROFIBUS
address
Dynamic configuration is supported
Supported PROFIBUS addresses 0 to 126
Device description using GSD file
I & M functions
This data sheet is only valid in association with the UM EN AXL F SYS INST user manual.
Make sure you always use the latest documentation.
It can be downloaded from the product at
phoenixcontact.net/products.
Here you will also find the current GSD file.
AXL F BK PB
2
1
2
3
4
5
6
Table of contents
Description .............................................................................................................................. 1
Table of contents ..................................................................................................................... 2
Ordering data .......................................................................................................................... 3
Technical data ......................................................................................................................... 4
Internal circuit diagram ............................................................................................................ 6
Connection of PROFIBUS and power supply .......................................................................... 7
6.1
Connecting PROFIBUS
......................................................................................................... 7
6.2
Mains termination resistors
.................................................................................................... 7
6.3
Connecting the supply voltage - terminal point assignment
............................................................. 7
Connection example................................................................................................................ 7
Configuration via rotary encoding switch ................................................................................. 8
Parameter data ........................................................................................................................ 8
Local status and diagnostic indicators ..................................................................................... 9
Reset button .......................................................................................................................... 11
Service interface.................................................................................................................... 11
Substitute value behavior ...................................................................................................... 11
Firmware functions ................................................................................................................ 11
7
8
9
10
11
12
13
14
8419_en_02
PHOENIX CONTACT
2
AXL F BK PB
3
Ordering data
Type
AXL F BK PB
Description
Axioline F bus coupler for PROFIBUS DP (including bus base module and
connector)
Order No.
2688530
Pcs./Pkt.
1
Accessories
Axioline
F
bus base module for housing type BK (Replacement item)
Axioline F short power connector (for e.g., AXL F BK ...) (Replacement
item)
Type
AXL BS BK
AXL CN S/UL
Order No.
2701422
2701421
0829579
Pcs./Pkt.
5
5
25
Zack marker strip for Axioline F (device labeling), in 2 x 20.3 mm pitch, un- ZB 20,3 AXL UNPRINTED
printed, 25-section, for individual labeling with B-STIFT 0.8, X-PEN, or
CMS-P1-PLOTTER (Marking)
Zack marker strip, flat, in 10 mm pitch, unprinted, 10-section, for individual
labeling with M-PEN 0,8, X-PEN, or CMS-P1-PLOTTER (Marking)
Insert label, Roll, white, unlabeled, can be labeled with: THERMOMARK
ROLL, THERMOMARK ROLL X1, THERMOMARK X, THERMOMARK
S1.1, Mounting type: snapped into marker carrier, Lettering field: 35 x 18.7
mm (Marking)
D-SUB plug, 9-pos., pin, assignment: 3, 5, 6, 8; two M12 cable glands (B-
coded) under 35°. Bus system: PROFIBUS DP up to 12 Mbps. Termination
resistor via separate M12 terminator. (Connector/Adapter)
D-SUB connector, 9-pos., male connector, cable entry < 35°, bus system:
PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via
slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks
(Connector/Adapter)
D-SUB connector, 9-pos., male connector, cable entry < 90°, bus system:
PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via
slide switch, pin assignment: 3, 5, 6, 8; IDC terminal block connection
(Connector/Adapter)
D-SUB connector, 9-pos., male connector, cable entry < 90°, bus system:
PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via
slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks
(Connector/Adapter)
ZBF 10/5,8 AXL UNPRINTED
EMT (35X18,7)R
0829580
0801831
50
1
SUBCON-PLUS-PROFIB/35/M12
2902320
1
SUBCON-PLUS-PROFIB/SC2
2708232
1
SUBCON-PLUS-PROFIB/90/IDC
2313672
1
SUBCON-PLUS-PROFIB/90/SC
2313698
1
D-SUB connector, 9-pos., male connector, axial version with two cable en- SUBCON-PLUS-PROFIB/AX/SC
tries, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can
be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw connec-
tion terminal blocks (Connector/Adapter)
Connecting cable, for connecting the controller to a PC for PC Worx and
LOGIC+, USB A to micro USB B, 2 m in length. (Cable/conductor)
CAB-USB A/MICRO USB B/2,0M
2744380
1
2701626
1
Documentation
User manual, English,
Diagnostic and firmware functions of the AXL F BK PB bus coupler
User manual, English, Axioline F: System and installation
Type
UM EN AXL F BK PB
UM EN AXL F SYS INST
Order No.
-
-
-
Pcs./Pkt.
-
-
-
User manual, English, Axioline F: Diagnostic registers, and error messages UM EN AXL F SYS DIAG
8419_en_02
PHOENIX CONTACT
3
AXL F BK PB
4
Technical data
Dimensions (nominal sizes in mm)
45
74
122,4
Width
Height
Depth
Note on dimensions
General data
Color
Weight
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
Protection class
Mounting position
traffic grey A RAL 7042
175 g (with connector and bus base module)
-25 °C ... 60 °C (Mounting position: wall mounting on horizontal DIN rail)
-25 °C ... 55 °C (Mounting position: any)
-40 °C ... 85 °C
5 % ... 95 % (non-condensing)
5 % ... 95 % (non-condensing)
70 kPa ... 106 kPa (up to 3000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP20
III, IEC 61140, EN 61140, VDE 0140-1
Any (observe temperature derating)
Connection data
Designation
Connection method
Conductor cross section solid / stranded
Conductor cross section [AWG]
Stripping length
Axioline F connector
Push-in connection
0.2 mm² ... 1.5 mm² / 0.2 mm² ... 1.5 mm²
24 ... 16
8 mm
Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual.
Interface PROFIBUS DP
Number
Connection method
Number of positions
Transmission speed
1
9-pos. D-SUB (socket)
9
9,6 kBit/s ... 12 MBit/s
8419_en_02
89
S2
8
10
S1
0
2
12
0
2
4
6
125,9
4
6
45 mm
125.9 mm
74 mm
The depth is valid when a TH 35-7.5 DIN rail is used (according to EN 60715).
PHOENIX CONTACT
4
AXL F BK PB
Interface Axioline F local bus
Connection method
Transmission speed
Bus base module
100 MBit/s
Interface Service
Number
Connection method
1
Micro USB type B
System limits of the bus coupler
Amount of process data
max. 488 Byte (per station)
max. 244 Byte (Input)
max. 244 Byte (Output)
max. 244 Byte
max. 244 Byte
488 Byte
244 Byte
244 Byte
max. 63 (per station)
Number of parameter data
Number of configuration data
IN and OUT process data for I/O modules that can be aligned
IN process data for I/O modules that can be aligned
OUT process data for I/O modules that can be aligned
Number of supported devices
NOTE: Electronics may be damaged when overloaded
Observe the logic current consumption of each device when configuring an Axioline F station. It is specified in every module-specific data
sheet. The current consumption can differ depending on the individual module. The permissible number of devices that can be connected
therefore depends on the specific station structure.
Supply of the bus coupler
Supply of communications power U
L
Maximum permissible voltage range
Current supply at U
Bus
Current consumption from U
L
Power consumption at U
L
NOTE: Electronics may be damaged when overloaded
Provide external fuses for the 24 V U
L
area. The power supply unit must be able to supply four times the nominal current of the external fuse
to ensure that it blows in the event of an error.
24 V DC
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
2A
typ. 101 mA (without I/Os and U
L
= 24 V)
max. 567 mA (with 2 A at U
Bus
for the I/Os and U
L
= 24 V)
typ. 2.5 W (without I/Os)
max. 13.7 W (with 2 A load at U
Bus
for the I/Os)
Error messages to the higher level control or computer system
Diagnostic alarms
Mechanical tests
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Shock in acc. with EN 60068-2-27/IEC 60068-2-27
Continuous shock according to EN 60068-2-27/IEC 60068-2-27
5g
30g, 11 ms period, half-sine shock pulse
10g
Conformance with EMC Directive 2004/108/EC
Noise immunity test in accordance with EN 61000-6-2
Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2
Electromagnetic fields EN 61000-4-3/IEC 61000-4-3
Fast transients (burst) EN 61000-4-4/IEC 61000-4-4
Transient surge voltage (surge) EN 61000-4-5/IEC 61000-4-5
Conducted interference EN 61000-4-6/IEC 61000-4-6
Noise emission test according to EN 61000-6-3
Radio interference properties EN 55022
Class B
Criterion B; 6 kV contact discharge, 8 kV air discharge
Criterion A; Field intensity: 10 V/m
Criterion B, 2 kV
Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); field-
bus cable shield: ±1 kV
Criterion A; Test voltage 10 V
8419_en_02
PHOENIX CONTACT
5
RF/Wirelessly
