300SP2J3WHTVS4RE datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 300SP2J3WHTVS4RE

300SP2J3WHTVS4RE: CategoryMechanical and electronic products switch; File Size4MB，16 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

300SP2J3WHTVS4RE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	300SP2J3WHTVS4RE	-	-	View	Buy Now

300SP2J3WHTVS4RE Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	25 deg
Actuator color	WHITE
Actuator length	0.46 inch
Actuator type	ROCKER
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact function	ON-(ON)
Contact resistance	0.01 mΩ
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	7
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal surface	GOLD/NICKEL
Terminal length	0.185 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

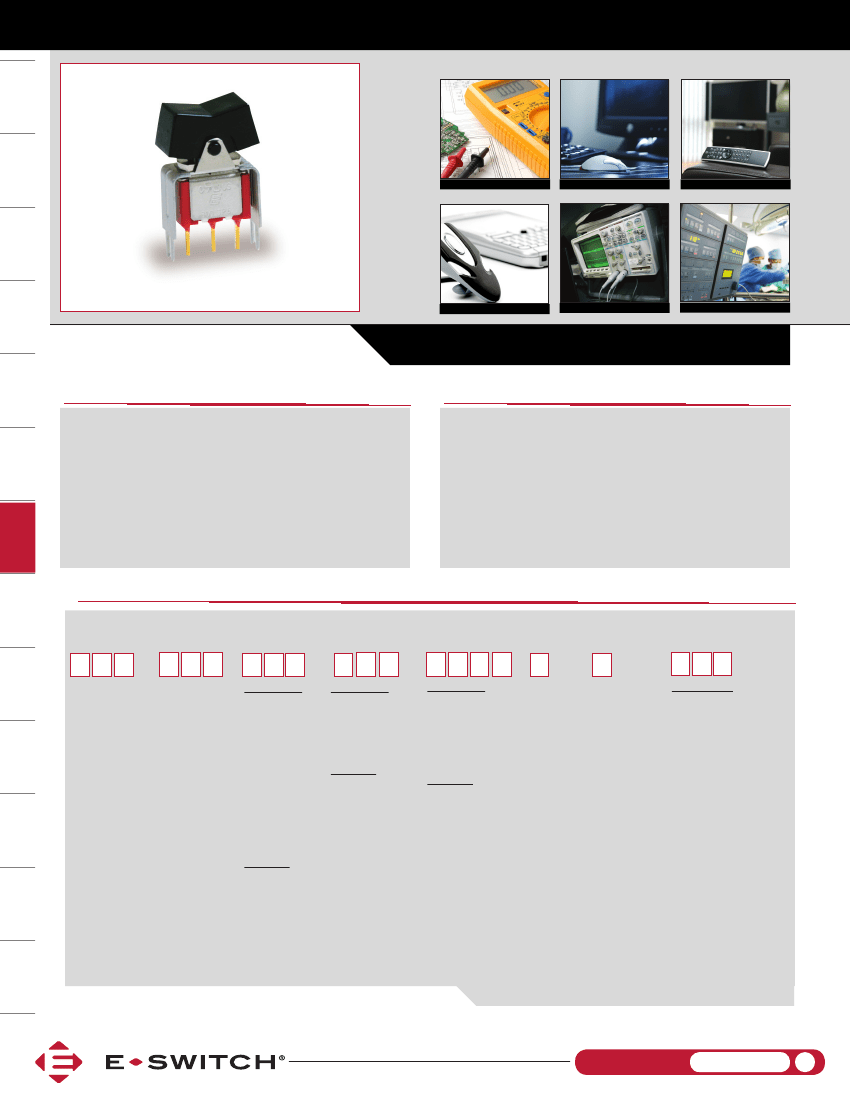

300 s

eries

ocker

witch

ANTI-VANDAL

SWITCHES

pplicAtions

/ M

Arkets

DETECTOR

SWITCHES

Testing Equipment

Computer Peripherals

Consumer Electronics

KEYLOCK

SWITCHES

DIP

SWITCHES

Telecommunication

Instrumentation

Medical Equipment

NAVIGATION

SWITCHES

RoHS

peciFicAtions

Contact Rating:

Silver: 5A @ 120VAC or 28 VDC

2A @ 250VAC

Gold: 0.4VA @ 20V Max (AC or DC)

Life Expectancy:

40,000 make or break cycles at full load

Contact Resistance:

10mΩ max. initial @ 2-4VDC,

100mA for both silver and gold plated contacts

Insulation Resistance:

1,000MΩ min.

Dielectric Strength:

1,000 V RMS @ sea level

Operating Temperature:

-30°C to 85°C

eAtures

& B

eneFits

•

Multiple rocker & paddle options

Up to 4 poles

Multiple termination options

Snap-in panel mount option available

ROCKER

SWITCHES

PUSHBUTTON

SWITCHES

ROTARY

SWITCHES

Art

uMBer

onFigurAtor

Series

Model No.

Acuator

Actuator

Color**

Termination

Contact

Material

Seal

Frame Color

SLIDE

SWITCHES

300

CAP

OPTIONS

SP1

SP2

SP3

SP4

SP5

DP1

DP2

DP3

DP4

DP5

DP6

DP7

DP8

3P1

3P2

3P3

3P4

3P5

4P1

4P2

4P3

4P4

4P5

4P6

TACTILE

SWITCHES

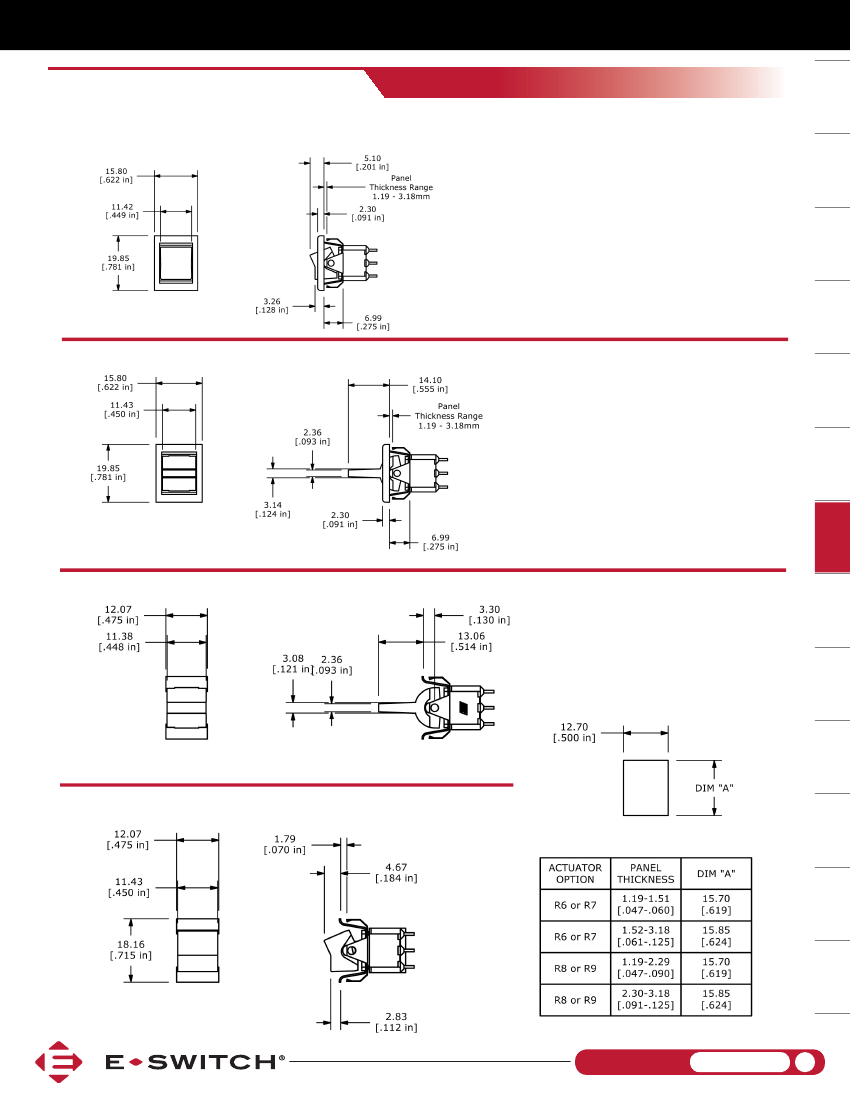

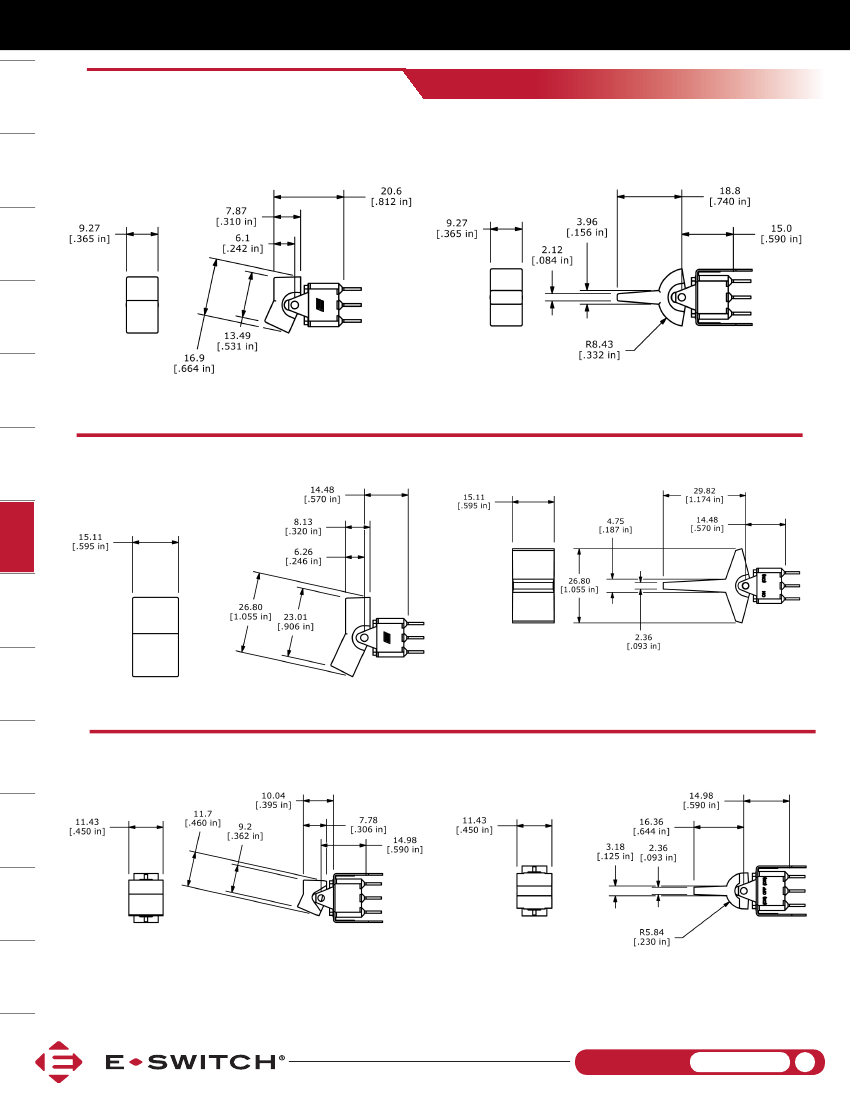

Panel Mount

R6*

R7*

R8*

R9*

R11

R16

*Snap-in

Panel Mount

PC Mount

SNAP ACTION

SWITCHES

Panel Mount

BLK -

Black

WHT -

White

RED -

Red

YEL -

Yellow

GRY -

Gray

PC Mount

BLK -

Black

WHT -

White

RED -

Red

YEL -

Yellow

GRY -

Gray

Panel Mount

M51

M52

M53

M54

PC Mount

VS2

VS3

VS4

VS5

M61

VS21

- Silver

- Gold

- Epoxy

sealed at base

of terminal

(R6, R7 Only)

BLK -

Black

WHT -

White

RED -

Red

YEL -

Yellow

GRY -

Gray

TOGGLE

SWITCHES

Specifications subject to change without notice

www.e-switch.com

800.867.2717
