Datasheet> All Categories > Discrete semiconductor> diode> DSB5821

Preview

DSB5821: Description3 A, 30 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size34KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

DSB5821 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DSB5821	-	-	View	Buy Now

DSB5821 Overview

3 A, 30 V, SILICON, RECTIFIER DIODE

DSB5821 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	O-LALF-W2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	METALLURGICALLY BONDED
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	3 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
surface mount	NO
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

• 1N5822 AVAILABLE IN

JAN, JANTX, JANTXV AND JANS

PER MIL-PRF-19500/620

• 3 AMP SCHOTTKY BARRIER RECTIFIERS

• HERMETICALLY SEALED

• METALLURGICALLY BONDED

1N5822

and

DSB5820 thru DSB5822

and

DSB3A20 thru DSB3A40

MAXIMUM RATINGS

0.115/0.145

Operating Temperature: -65°C to +125°C

Storage Temperature: -65°C to +150°C

Average Rectified Forward Current: 3.0 AMP @ TL = +55°C, L = 3/8”

Derating: 43 mA / °C above TL = +55°C, L = 3/8”

2.92/3.68

0.130/0.195

3.30/4.95

0.900

22.86

0.036/0.042

0.91/1.07

ELECTRICAL CHARACTERISTICS

@ 25°C, unless otherwise specified.

CDI

TYPE

NUMBER

WORKING PEAK

REVERSE

VOLTAGE

VRWM

VOLTS

MAXIMUM FORWARD VOLTAGE

VF @ 1.0 A

VOLTS

0.40

VF @ 3.0 A

VOLTS

0.50

VF @ 9.4A

VOLTS

0.70

MAXIMUM REVERSE

LEAKAGE CURRENT

AT RATED VOLTAGE

IR @ +25°C

mA

0.10

IR @ +100°C

mA

12.5

FIGURE 1

DESIGN DATA

CASE:

Hermetically sealed, “B” Body

per MIL-PRF-19500/620. D-5B

LEAD MATERIAL:

Copper clad steel

LEAD FINISH:

Tin / Lead

THERMAL RESISTANCE: (R

OJEC): 30

°

C/W maximum at L = .375 inch

THERMAL IMPEDANCE: (Z

OJX): 3

°

C/W maximum

POLARITY:

Cathode end is banded.

MOUNTING POSITION:

Any

DSB5820

DSB5821

DSB5822

J,JX,JV & JS

5822

DSB3A20

DSB3A30

DSB3A40

20

30

40

20

30

40

6 LAKE STREET, LAWRENCE, MASSACHUSETTS 01841

PHONE (978) 620-2600

FAX (978) 689-0803

WEBSITE: http://www.microsemi.com

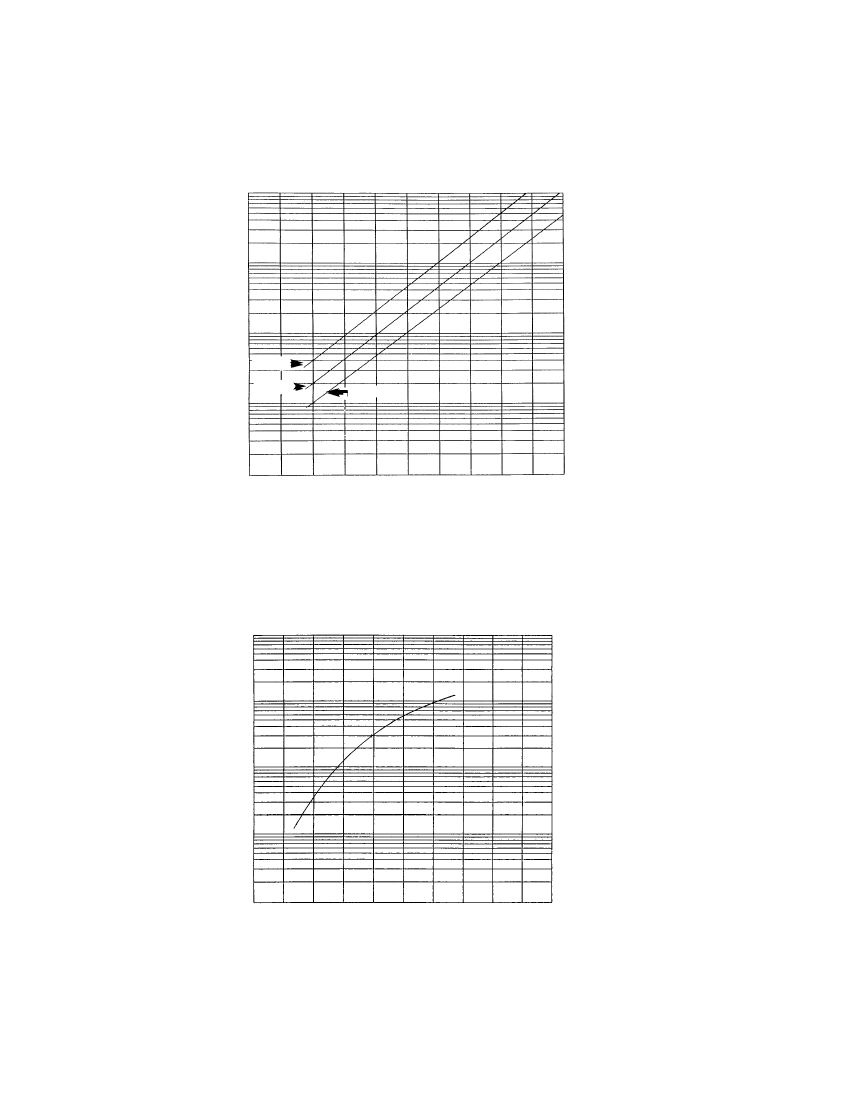

67
