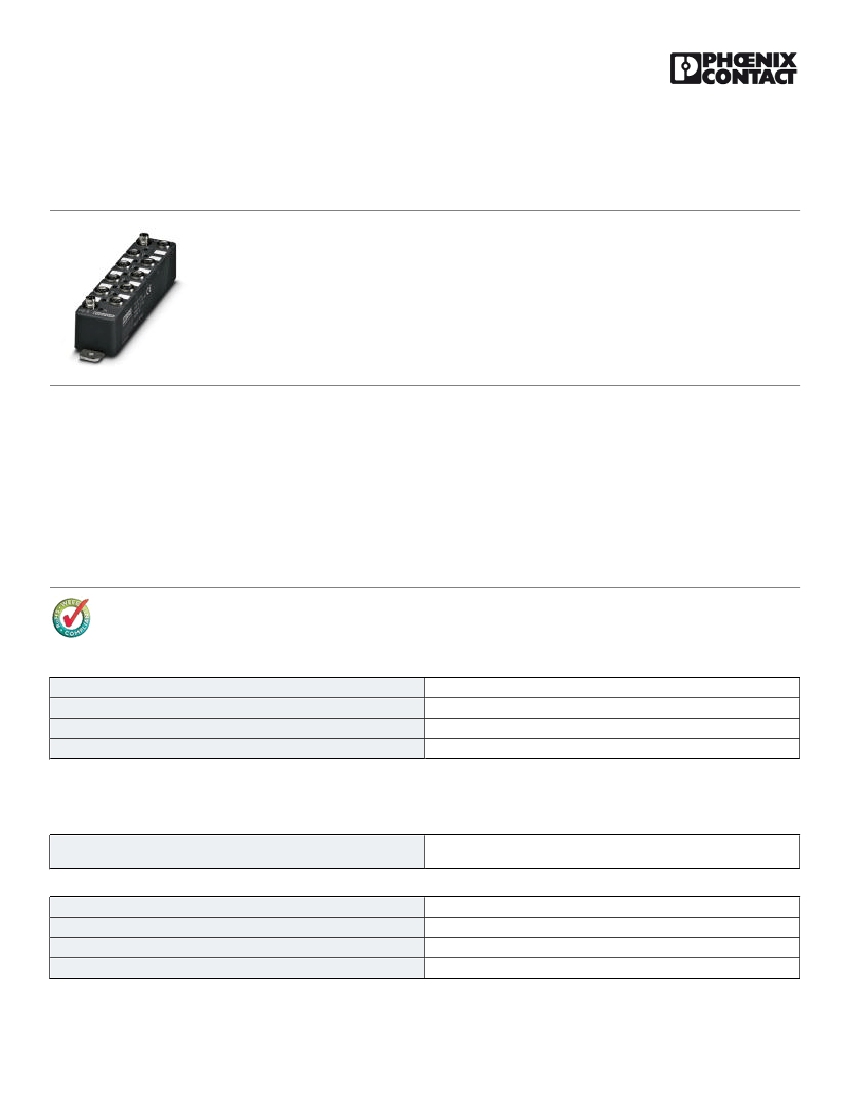

Distributed I/O device - FLM DO 8 M8 - 2736893
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
The space-saving local bus device is particularly suitable for use in close proximity to the process. Functions:
8 digital outputs each with a load capacity of 500 mA, channel-specific diagnostics, short-circuit and overload
protection, M8 connection method.
Product Description
The device is designed for use in the Fieldline Modular M8 local bus, which is opened by a Fieldline or Inline bus coupler. It is used to acquire and output
digital signals.
Product Features
■
■
■
■
■
Can also be connected to an Inline station
Optimized for 30 mm mounting profile
Short-circuit and overload protection
Diagnostic and status indicators
Consistent connection via M8 connectors
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
168.7 g
85389091
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
Note on dimensions
29.8 mm
143 mm
26.5 mm
Length details incl. fixing clips
04/24/2016 Page 1 / 11
https://www.phoenixcontact.com/us/products/2736893
Distributed I/O device - FLM DO 8 M8 - 2736893
Technical data
Dimensions
Drill hole spacing
133 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
-25 °C ... 60 °C
-25 °C ... 85 °C
5 % ... 95 %
10 % ... 95 %
80 kPa ... 106 kPa (up to 2000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP65/IP67
General
Mounting type
Net weight
Wall mounting
137 g
Interfaces
Designation
Connection method
Designation connection point
Transmission speed
Number of positions
Fieldline local bus
M8 connector
Copper cable
500 kBit/s
4
Power supply for module electronics
Connection method
Designation
Number of positions
Supply voltage
Supply voltage range
Supply current
M8 connector
U
L
4
24 V DC
18 V DC ... 30 V DC (including ripple)
3A
Fieldline potentials
Voltage supply U
L
24 V DC
Digital outputs
Output name
Connection method
Number of outputs
Protective circuit
Output voltage
Maximum output current per channel
Digital outputs
M8 connector
2, 3-wire
8
Short-circuit protection
24 V DC
500 mA
04/24/2016 Page 2 / 11
https://www.phoenixcontact.com/us/products/2736893
Distributed I/O device - FLM DO 8 M8 - 2736893
Technical data
Standards and Regulations
Test section
Protection class
To I/O 500 V AC
III, IEC 61140, EN 61140, VDE 0140-1
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27250302
27250302
27250302
27242604
27242604
27242604
27242604
27242604
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001430
EC001599
EC001599
EC001599
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201404
43201404
Accessories
Accessories
Adapter
Adapter - FLM ADAP M12/M8 - 2736961
Adapter for connecting Fieldline Modular M8 devices to a Fieldline Modular M12 local bus
04/24/2016 Page 3 / 11
https://www.phoenixcontact.com/us/products/2736893
Distributed I/O device - FLM DO 8 M8 - 2736893
Accessories

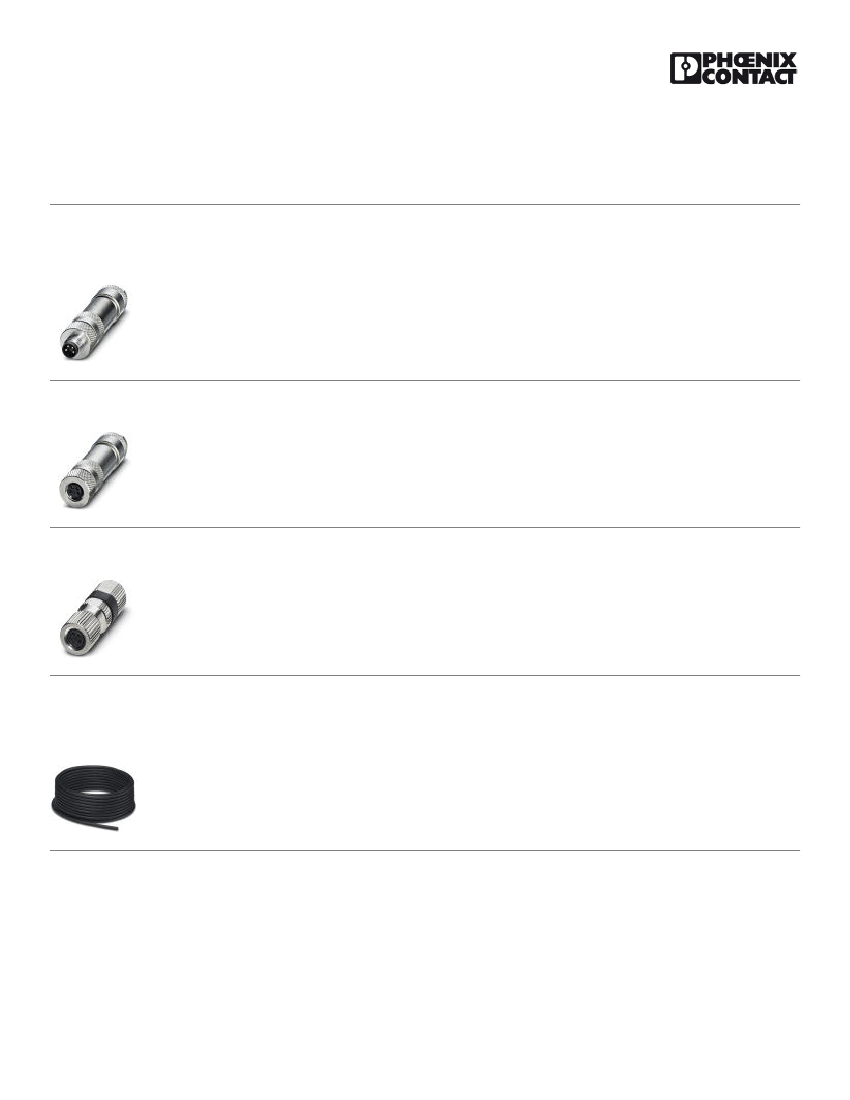

Circular connector (cable-side)
Connector - SACC-M 8MS-4CON-M-0,34-SH - 1542897
Connector, 4-position, shielded, Plug straight M8, A-coded, Screw connection, Knurl material: Nickel-plated brass,
External cable diameter 3.5 mm ... 5.5 mm
Connector - SACC-M 8FS-4CON-M-0,34-SH - 1542910
Connector, 4-position, shielded, Socket straight M8, A-coded, Screw connection, Knurl material: Nickel-plated brass,
External cable diameter 3.5 mm ... 5.5 mm
Connector - SACC-M 8FS-4PCON - 1506781
Sensor/actuator connector, female, straight, 4-pos., M8, Piercecon , metal knurl, cable diameter max. 5 mm
®
Data cable by the meter
Bus system cable - SAC-4P-950/... - 1543401
Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded, free cable end, on free cable
end, Cable length: Free entry (0.5 ... 400.0 m)
Data cable preassembled
04/24/2016 Page 4 / 11
https://www.phoenixcontact.com/us/products/2736893
Distributed I/O device - FLM DO 8 M8 - 2736893
Accessories
Bus system cable - SAC-4P-M 8MS/ 2,0-950 - 1543249
Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded, Plug straight M8, on free cable
end, Cable length: 2 m
Bus system cable - SAC-4P-M 8MS/ 5,0-950 - 1543252
Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded, Plug straight M8, on free cable
end, Cable length: 5 m
Bus system cable - SAC-4P-M 8MS/10,0-950 - 1543265
Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded, Plug straight M8, on free cable
end, Cable length: 10 m
Bus system cable - SAC-4P-M 8MS/15,0-950 - 1543278
Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded, Plug straight M8, on free cable
end, Cable length: 15 m
Bus system cable - SAC-4P-M 8MS/20,0-950 - 1543281
Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded, Plug straight M8, on free cable
end, Cable length: 20 m
04/24/2016 Page 5 / 11
