Interfaces, Relay Modules and Carriers
Bussed DPDT, 35 or 32 DIN Rail
RC2 / RM2 (Double Pole Double Throw)
TS35x7.5 71 mm (2.80 in.)
TS32x15 76 mm (2.50 in.)

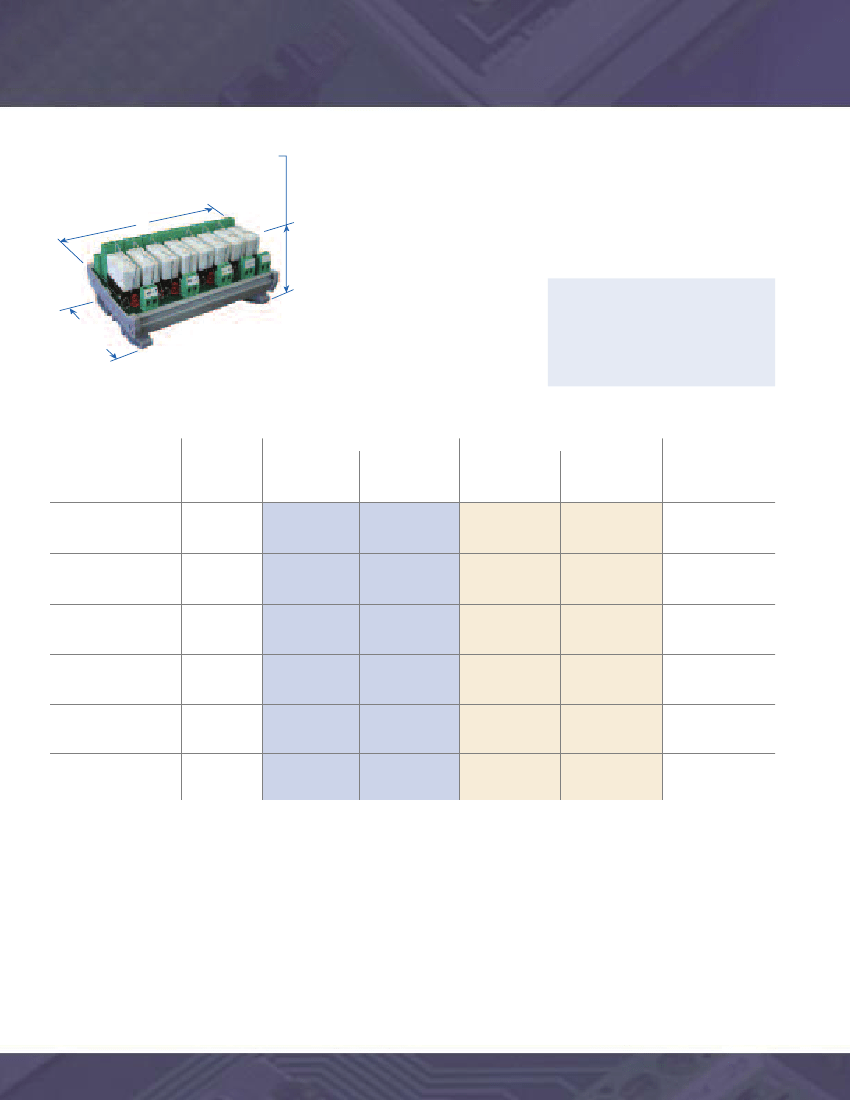

Altech Bussed Relay Modules provide high density packaging of miniature general purpose relays with
minimal hook-up wiring. Select from bussed DC Positive (DC Negative switching), bussed DC Negative (DC
Positive switching), or bussed AC neutral.
Ideal for traditional mechanical relay input/output array between a single logic system and peripheral
devices, or between logic systems in a network as well as their peripheral and field devices.
Load your own relays in our RCB Relay Carrier, or order the RMB Relay Module complete with 8 or 16 relays.
Call us with your custom module requirements!
• Screw-Cage Clamp Connections
• Spring Clamp Terminals
• LED Coil Voltage Indicator
• Reverse DC Polarity LED Protection
• Surge Suppression With DC Coil
• DIN Rail Mount, Panel Mount Available
L
Technical Information
Current ..................8 A
Voltage (max) ........250V AC / 24V DC
Wire Range ...........0.5-4 mm
2
/ 30-14 AWG
Torque ...................0.5-4 Nm / 4 lbs-in.
Stripping Length ...8 mm
DPDT
Number of Channels
8 Channel, Bussed DC+
Coil Voltage
12V DC ( E)
24V DC (G)
8 Channel, Bussed DC-
12V DC ( E)
24V DC (G)
8 Channel, Bussed AC (N)
110V AC (U)
220V AC (X)
16 Channel, Bussed DC+
12V DC ( E)
24V DC (G)
16 Channel, Bussed DC-
12V DC ( E)
24V DC (G)
16 Channel, Bussed AC(N)
110V AC (U)
220V AC (X)
m
m in.)
87 43
.
(3
22
Screw terminal
Carrier Only
Part Number
8923.5
8924.5
8923.6
8924.6
8925.5
8925.6
8926.5
8926.6
8927.5
8927.6
8928.5
8928.6
Module
with Relays
Part Number
8923.2
8924.2
8923.3
8924.4
8925.2
8925.3
8926.2
8926.3
8927.2
8927.3
8928.2
8928.3
Spring terminal
Carrier Only
Module
with Relays
Part Number
Part Number
8923.5/S
8924.5/S
8923.6/S
8924.6/S
8925.5/S
8925.6/S
8926.5/S
8926.6/S
8927.5/S
8927.6/S
8928.5/S
8928.6/S
8923.2/S
8924.2/S
8923.3/S
8924.4/S
8925.2/S
8925.3/S
8926.2/S
8926.3/S
8927.2/S
8927.3/S
8928.2/S
8928.3/S
Module Length (L)
in mm (in)
125 (4.92)
125 (4.92)
125 (4.92)
125 (4.92)
125 (4.92)
125 (4.92)
248 (9.76)
248 (9.76)
248 (9.76)
248 (9.76)
248 (9.76)
248 (9.76)
