GPS USB Reference Design Using the MAX2769

GPS USB Reference Design with the MAX2769

Overview

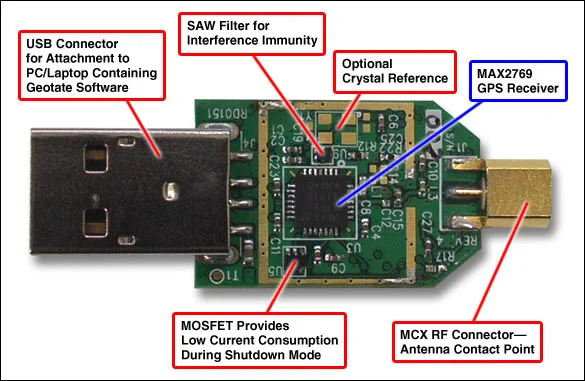

Figure 1. Top view of the GPS reference design that features the MAX2769 universal GPS receiver.

Figure 2. Bottom view of the design board.

Important Design Features

Complete USB Solution When Paired with Geotate Software
MAX2769 Offers 1.4dB Cascaded Noise Figure, and 115dB Gain with 60dB AGC Range
Receiver/Software Combination Provides -139dBm Acquisition Sensitivity and -152dBm Tracking Sensitivity
Choice of Two LNAs for Use with Active or Passive Antenna
Choice of Single or Dual Frequency References
Fractional-N Synthesizer and Wide Range of IF Filters for Maximum Flexibility
SAW Filter for Noise Immunity
