WiBro reference design built with the MAX2837

Overview

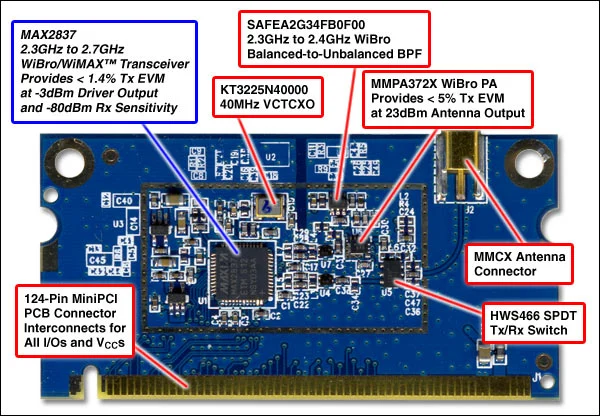

Figure 1. WiBro reference design built using the MAX2837 direct-conversion transceiver .

key design features

Complete RF to baseband WiBro solution
When the transmit power is +23dBm, the EVM is 5%, which meets the spectrum mask requirements.
When receiving sensitivity is -79dBm, EVM is 10%
60dB transmit gain control range
94dB receive gain control range
Optimized for low current mode

Figure 2. MAX2837 reference design block diagram
Detailed Circuit (PDF, 324kB)
Figure 2. MAX2837 reference design block diagram.

Documentation

Application Note
