VL53L1 complete evaluation kit

P-NUCLEUS-53L1A2

Overview

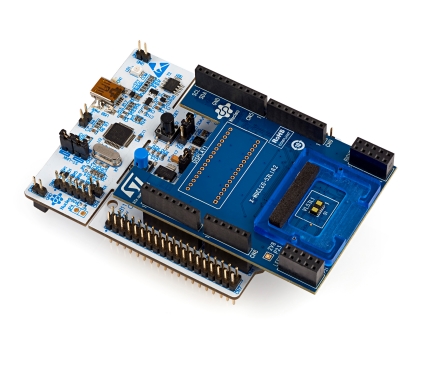

The P-NUCLEO-53L1A2 is a complete evaluation kit which allows anyone to learn, evaluate, and develop their application using the VL53L1 ToF, ranging sensor with multi object detection and FoV programming.

The VL53L1 is a state-of-the-art, ToF, laser-ranging, miniature sensor enhancing STMicroelectronic's FlightSense product family. Housed in a miniature and reflowable package, it integrates a SPAD (single photon avalanche diode) array, physical infrared filters, and optics to achieve the best ranging performance in various ambient lighting conditions, with a wide range of cover windows.
The STM32 nucleo board and NUCLEO-F401RE provide an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller, choosing from the various combinations of performance, power consumption, and features.

Main features

X-NUCLEO-53L1A2 expansion board including the VL53L1 ToF (Time-of-Flight) ranging sensor with multi object detection and FoV (field of view) programming
STM32F401RE core board
Two VL53L1 breakout boards
0.25, 0.5 and 1 mm spacers to simulate air gaps between ToF sensor and cover window
Two different cover windows
Equipped with an Arduino UNO R3 connector
RoHS compliant
The two VL53L1 breakout boards can be connected onto the X-NUCLEO-53L1A2 expansion board to integrate the VL53L1 into the customer’s application
Full system SW (software) is supplied, including code examples and graphical user interface. All this can be downloaded on the product page on st.com.
