IBU universal interface motor control and IPS universal interface

STEVAL-PCC009V2

Overview

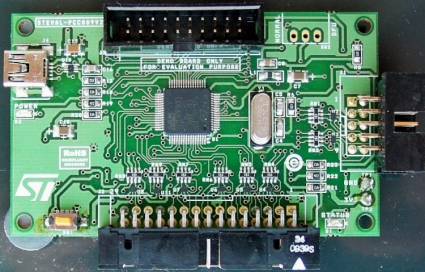

The STEVAL-PCC009V2 board implements an IBU universal interface (IBUUI), which is an STM32x-based USB-to-serial interface bridge consisting of a configurable 10-pin interface and a 30-pin interface.

The STM32x microcontroller is used as an interface between the PC and another end system. Various communication peripherals are multiplexed with GPIOs, ADC and PWM channels in both the 10-pin and 30-pin interfaces.
With these interfaces, there is a provision to connect a device which can communicate using I²C, SPI and UART. Thus, the IBUUI tool allows users to connect a serial communication-based device to a PC. At the same time, it allows user control of some GPIOs available in 10-pin and 30-pin interfaces, and sets them to input/output mode as per application requirements.

Main features

Supports two modes:
- application mode: the PC GUI allows SPI, I²C and UART interfacing and control of the communication parameters
- DFU mode: allows the user to change the firmware if required to suit specific applications
Board power supplied through a USB Mini B-type connector
DLL files provided to allow users to create a customized PC GUI
RoHS compliant
