STA350BW Sound Terminal™ 2.1-channel high-efficiency digital audio system board

STEVAL-CCA030V1

Overview

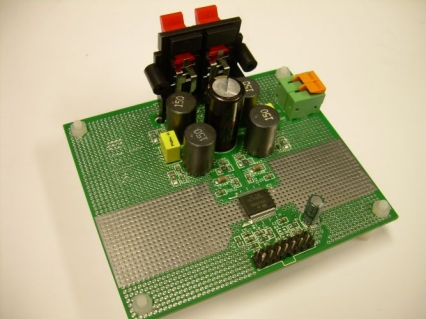

The STEVAL-CCA030V1 demonstration board is based on the STA350BW Sound Terminal digital amplifier and is an integrated solution for digital audio processing, digital amplifier control and FFX®-power output stage.

The STEVAL-CCA030V1 is made up of two boards: STA350BW to evaluate the device and APWLink (STEVAL- CCA035V1) used as I²S and I²C interface. To use this board it is mandatory to use the APWorkbench software tool.

Main features

2 channels of ternary PWM 2x50 W @ 6 Ω, 25 V
5 V to 26 V operating supply voltage range
FFX^®100 dB SNR and dynamic range
Selectable 32 to 192 kHz input sample rates
I²C control with selectable device address
Digital gain/attenuation +42 dB to -80 dB with 0.125 dB/step resolution
Individual channel and master gain/attenuation

Audio presets:
- 15 preset crossover filters
- 5 preset anti-clipping modes
- Preset night-time listening mode
I²S input data interface
Up to 8 user-programmable biquads per channel
3 coefficient banks for EQ preset storing with fast recall via I²C interface
Selectable high-pass filter for DC blocking
RoHS compliant
