TS4990IQT based amplifier

STEVAL-CCA037V1

Overview

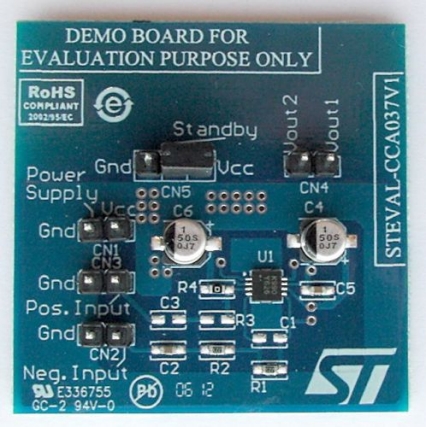

The STEVAL-CCA037V1 demonstration board is designed to evaluate the TS4990IQT low power audio amplifier. The micro package DFN8 (dual flat non-leaded 8 pins) allows space saving and good thermal dissipation.

The BTL gain is set at 2 V/V and can be adapted if necessary with a modification of two (R1 or R2) resistor values.
It is possible to modify the input configuration from single ended to differential of the STEVAL-CCA037V1 demonstration board.
More information regarding component calculations is available in the TS4990 datasheet.

Main features

Operating from VCC = 2.2 V to 5.5 V
Active low standby mode
1.2 W output power @ VCC = 5 V, THD = 1%, F = 1 kHz, with 8 Ω load
Ultra low power consumption in standby mode (10 nA)
62dB PSRR @ 217 Hz in grounded mode (Av = 2 V/V)
Near zero pop and click
Ultra low distortion (0.1%)
Module gain set at 2 V/V
Thermal and short-circuit protection
RoHS compliant
