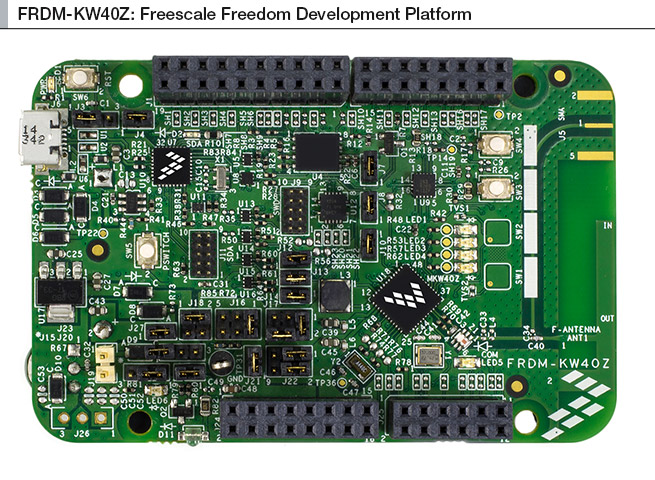

FRDM-KW40Z: Freedom Development Platform for Kinetis ^® KW40Z/30Z/20Z MCUs

Overview

FRDM-KW40Z is a low-cost development platform using Kinetis ^{® W series KW40Z/30Z/20Z (KW40Z) based on Arm}^® Cortex ^® -M0+ processor , with integrated 2.4 GHz transceiver and support for Bluetooth ^® Smart/Bluetooth ^® Low Energy v4.1 and/or IEEE ^® 802.15.4-2011 standards.

The FRDM-KW40Z kit contains two circuit boards that support point-to-point connectivity out of the box. Each board can be configured as a Freedom development board or a Freedom Shield expansion board. The hardware specifications of FRDM-KW40Z are compatible with the Arduino ^® Rev3 pin layout, providing a wealth of expansion board options.

FRDM-KW40Z features high sensitivity, optimized 2.4 GHz radio with PCB F-antenna (which can be bypassed to connect to test equipment via SMA connection), multiple power options, push-pull and capacitive touch buttons, switches, LEDs and integrated sensor.

MoreCollapse

Design Files

Documentation
