STM32F413ZH MCU Discovery Kit

32F413HDISCOVERY

Overview

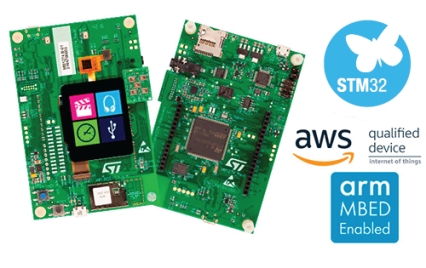

The 32F413HDISCOVERY Discovery kit allows users to develop applications with the STM32F4 Series microcontrollers based on ARM^® Cortex^®-M4 core.

The 32F413HDISCOVERY Discovery kit enables a wide diversity of applications, taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.
The Arduino^™ Uno V3 connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Main features

STM32F413ZHT6 microcontroller featuring 1.5 Mbytes of Flash memory and 320 Kbytes of SRAM, in LQFP144 package
On-board ST-LINK/V2-1 supporting USB re-enumeration capability
USB ST-LINK functions:
- Virtual COM port
- Mass storage
- Debug port
240x240-pixel LCD with parallel interface and touch-panel connector
8-Mbit PSRAM; 512K word x 16bits
128-Mbit Quad-SPI Flash memory
I²S audio codec
Jack connector for Audio line with microphone input and stereo output
Two on-board ST-MEMS microphones
Connector extension for up to 5-MEMS microphones.

USB OTG FS with Micro-AB connector
Connector for microSD^™ card
Integrated Wi-Fi^® module 802.11 b/g/n
Two push-buttons (user and reset)
Two user LEDs: one green and one red
Arduino^™ Uno V3 connectors
Four power supply options:
- ST LINK/V2-1
- USB FS connector
- 5 V from Arduino ^™ Uno V3
- USB charger
Comprehensive free software including a variety of examples, part of the STM32Cube package
Support of a wide choice of integrated development environments
