STM32F723IE MCU Discovery Kit

32F723EDISCOVERY

Overview

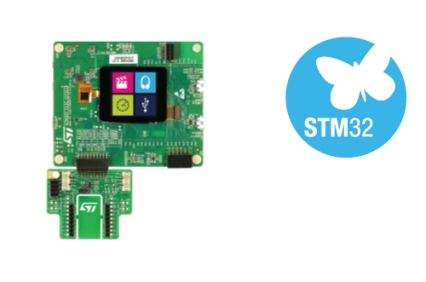

The 32F723EDISCOVERY Discovery kit allows users to develop applications with the microcontrollers of the STM32F7 Series, based on ARM^®Cortex^®-M7 core.

The 32F723EDISCOVERY Discovery kit enables a wide diversity of applications, taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.
The PMOD, STMod+ and Arduino^™Uno V3 connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Main features

STM32F723IEK6 microcontroller featuring 512 Kbytes of Flash memory and 176+16 Kbytes of RAM, in BGA176 package
On-board ST-LINK/V2-1 supporting USB re-enumeration capability
USB ST-LINK functions:
TFT LCD 240x240 pixels with touch panel
SAI audio codec
Stereo 3.5mm jack connector for audio line input
Stereo 3.5mm jack connector for headphone
Stereo speaker outputs
Four ST-MEMS microphones
Two push-buttons (user and reset)
512-Mbit Quad-SPI Flash memory
8-Mbit external PSRAM

USB OTG HS with Micro-AB connector
USB OTG FS with Micro-AB connector
Five power supply options:
Power supply output for external applications: 3.3V or 5V
ESP-01 Wi-Fi module connector
Arduino^™Uno V3 connectors
PMOD connector
STMod+ connector
Fanout board (included inside the board package) compatible with MikroElektronika Click boards, ESP-01 and Seeed Studio^™Grove modules. Provision for headers for direct breadboard plug-in.
Comprehensive free software including a variety of examples, part of the STM32Cube package
Support of a wide choice of integrated development environments
