STLM75 based temperature probe kit

STEVAL-MKI204V1K

Overview

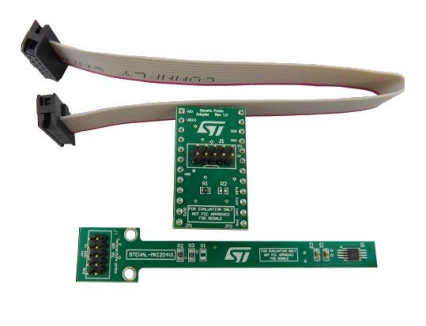

The STEVAL-MKI204V1K evaluation kit consists of a probe with the STLM75 temperature sensor connected via flat cable to the STEVAL-MKIGIBV1 adapter board, so it can interface with the STEVAL-MKI109V3 motherboard.

The device small package dimensions allow it to be mounted on top of a very thin probe, so it can take temperature readings not influenced by heat from other electronic components or boards.
The STEVAL-MKIGIBV1 can be plugged into a standard DIL24 socket.
The kit provides the complete STLM75 pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
The STEVAL-MKI109V3 motherboards feature a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC running the free Unico GUI graphical user interface or dedicated software routines for customized applications.

Main features

User friendly STLM75 board
Complete STLM75 pinout for a standard DIL 24 socket
Fully compatible with and STEVAL-MKI109V3 motherboards
RoHS compliant
WEEE compliant
