Discovery Kit for STM8L152C6 MCU

STM8L-DISCOVERY

Overview

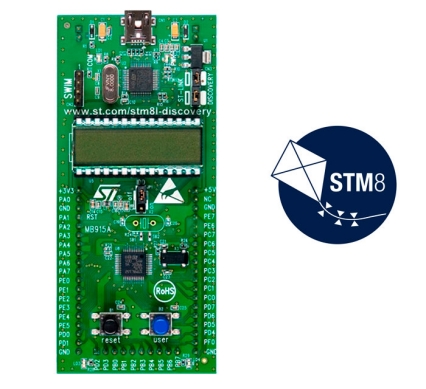

The STM8L-DISCOVERY helps you to discover the STM8L ultralow power features and to develop and share your applications. It is based on an STM8L152C6T6 and includes an ST-Link embedded debug tool interface, LCD (24 segments, 4 commons), LEDs and push buttons.

Main features

STM8L152C6T6 microcontroller, 32 KB Flash, 2 KB RAM, 1 KB EEPROM in 48-pin LQFP
On-board ST-Link with selection mode switch to use the kit as a stand-alone ST-Link (with SWIM connector for programming and debugging)
Two red LEDs; LD1 for USB communication, LD2 for 3.3 V power on
Designed to be powered by USB or an external supply of 5 V or 3.3 V
Can supply target application with 5 V and 3 V
Two user LEDs, LD3 and LD4 (green and blue)
Two push buttons (User and Reset)
I_DDcurrent measurement
LCD 28-pin DIP (24 segments, 4 commons)
Extension header for all QFP48 I/Os for quick connection to prototyping board for easy probing
