Evaluation board for STM8L152M8 MCU

STM8L1528-EVAL

Overview

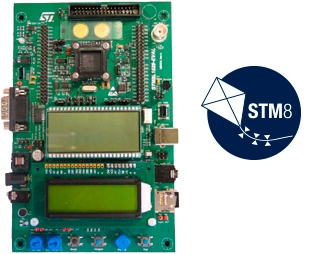

The STM8L1528-EVAL evaluation board is designed as a complete demonstration and development platform for the STM8 core based STM8L152M8T6 microcontroller with I2C, two SPI channels 3 USART channels, 12-bit ADC, two 12-bit DACs, LCD driver, internal 4 KByte SRAM, 2 Kbyte data EEPROM and 64 KByte Flash program memory as well as SWIM debugging support.

The full range of hardware features on the board is provided to help you evaluate all the MCU peripherals (motor control, USART, microphone, audio DAC, LCD, IR LED, IrDA, SPI Flash, MicroSD card, temperature sensor, EEPROM… etc.) and develop your own applications. Extension headers make it possible to easily connect a daughter board or wrapping board for your specific application.
An ST-LINK/V2 is integrated on the board as embedded in-circuit debugger and programmer for the STM8 MCU.

Main features

Three 5 V power supply options: Power jack, ST-LINK/V2 USB connector or daughter board
Audio speaker and microphone connected to DAC and ADC of STM8L152M8T6
1G Byte (or more) SPI interface MicroSD card
128 Mbit SPI serial Flash
I²C compatible serial interface 64 Kbit EEPROM and SMBus temperature sensor
RS232 communication
IrDA transceiver
Inductor Motor Control connector
SWIM debug support, embedded ST-LINK/V2
122x32 Dot matrix LCD connected to SPI interface of STM8L152M8T6

Joystick with 4-direction control and selector
Reset, Tamper and User button
Two touch-sensing buttons
4 color LEDs and one bi-color LED
MCU consumption measurement circuit
LCD glass (40seg x 8com) connected to the on-chip LCD driver of the MCU
Extension connector for daughter board or wrapping board
MCU voltage selectable to 3.3 V or adjustable from 1.65 V to 3.6 V
IR LED and receiver
