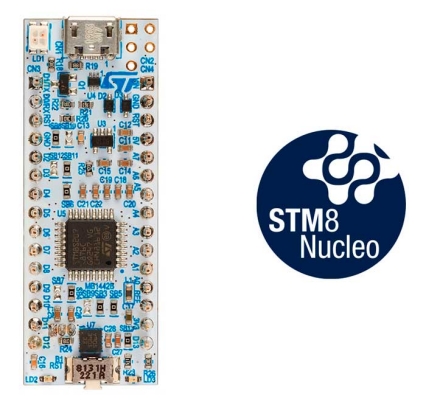

STM8 Nucleo-32 development board for STM8S207K8 MCU, supports Arduino Nano connection

NUCLEUS-8S207K8

Overview

The NUCLEO-8S207K8 STM8 Nucleo-32 board featuring the STM8S207K8T6C STM8 8-bit MCU provides an affordable and flexible way for users to try out new concepts and build prototypes with STM8S Series microcontrollers in LQFP32 package, choosing from the various combinations of performance, power consumption and features. The ARDUINO^® Nano connectivity support makes it easy to expand the functionality of the Nucleo-32 open development platform with a wide choice of specialized shields. The STM8 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer and comes with the STM8 standard peripheral library, together with various packaged software examples.

Main features

STM8 microcontroller in LQFP32 32-pin package
4 LEDs:
- USB communication (LD1)
- Power (LD2)
- User (LD3)
- Default (LD4)
1 reset push-button
Board connectors:
- ARDUINO^® Nano V3 expansion connector
- Micro-B USB connector for the ST-LINK
- SWIM interface
Flexible power-supply options: ST-LINK USB V_BUS or external sources (3.3 V, 5 V, 7 V – 12 V)
On-board ST-LINK/V2-1 debugger/programmer with SWIM connector and USB re-enumeration capability: mass storage, Virtual COM port and debug port
Comprehensive free software STM8 libraries including a variety of software examples
Support of a wide choice of Integrated Development Environments (IDEs) including STMicroelectronics free STVD-STM8 (using Cosmic toolchain), IAR™, Cosmic free IDEA
