Sub-1GHz transceiver development kit based on S2-LP

STEVAL-FKI915V1

Overview

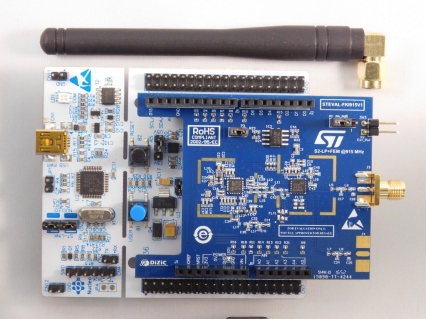

The STEVAL-FKI915V1 evaluation board is based on the S2-LP sub-1GHz ultra-low power low data-rate transceiver suitable for ISM bands and wireless M-Bus.

The NUCLEO-L152RE main board with an STM32L low power MCU controls the S2-LP and integrates the ST-LINK/V2-1 debugger and programmer for firmware updating.
The STEVAL-FKI915V1 includes an external power amplifier from SkyWorks^®, which allows the application to reach +27 dBm (500 mW) output power.

Main features

S2-LP narrow band ultra-low power Sub-1GHz transceiver in a standalone RF module tuned for 860-940 MHz frequency bands with external power amplifier
STM32 Nucleo-64 development board with STM32L152RE MCU
Suitable for wireless M-Bus systems
Suitable for SigFox applications
Associated S2-LP development kit including, documentation, firmware for STM32L and GUI
Programmable RF output power up to +27 dBm
Modulation schemes: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK, and ASK

Air data rate from 0.3 to 500 kbps
Excellent performance of receiver sensitivity (up to -130 dBm)
Low duty cycle RX/TX operation mode
Automatic acknowledgement, retransmission and timeout protocol engine
SPI interface for microcontroller
USB interface
RoHS compliant
