Development board based on MP34DT01-M digital MEMS microphone

STEVAL-MKI155V3

Overview

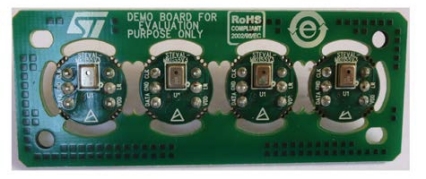

The STEVAL-MKI155V3 board is a daughterboard to be used with the STEVAL-MKI126Vx (Smart Voice) kit, containing 4 MP34DT01-M digital MEMS microphones.

The coupon concept allows easy performance testing of ST MEMS microphones. When connected to the Smart Voice board, it is possible to detach the single PCBs hosting each microphone.

Main features

4xMP34DT01-M top port digital MEMS microphones
Functions as a daughterboard for use with STEVAL-MKI126Vx kit
V supply from 1.64 to 3.6 V
120 dBSPL acoustic overload point
Omnidirectional sensitivity
PDM single-bit output
61 dB of SNR
Sensitivity -26 dBFS
RoHS compliant
