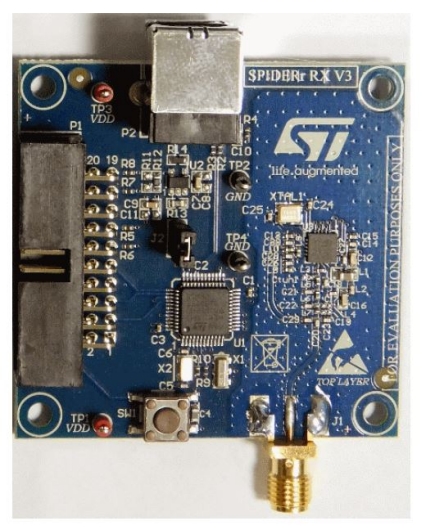

Wireless Receiver Board Kit for STDES-IDS003V1 and STDES-IDS002V1

STDES-ERH002V1

Overview

The STDES-ERH002V1 application example mounts a low power microcontroller and RF Sub-1 GHz receiver for wireless transmission.

The STDES-ERH002V1 is part of the STDES-IDS002V1 and STDES-IDS003V1 kits.
Together with the STDES-ERH001V1 or STDES-ERH003V1 companion board included in the STDES-IDS003V1 and STDES-IDS002V1 kits, respectively, they represent an example of autonomous wireless multi sensor nodes powered by TEG or PV panels, respectively.
Both kits include a second STDES-ERH001D companion board which allow the GUI to display the electrical characteristics of the harvesting (TEG or PV panel) module and battery, SPV1050 conversion efficiency and MPPT accuracy.
The dedicated STSW-IDS002V1 provides a user-friendly GUI able to show the data sensed by the STDES-ERH001V1 or STDES-ERH003V1 and received by the STDES-ERH002V1.

Main features

When used in conjunction with the STDES-ERH001V1 or STDES-ERH003V1 companion board, it forms an autonomous wireless sensor node based on the SPV1050 ULP energy harvester and battery charger
Compatible with the user-friendly STSW-IDS002V1 software for remote reading of sensors and monitoring of electrical parameters
All ST components are:
- CE Certified
- RoHS and China RoHS compliant
- WEEE compliant
