Evaluation platform based on BlueNRG-248

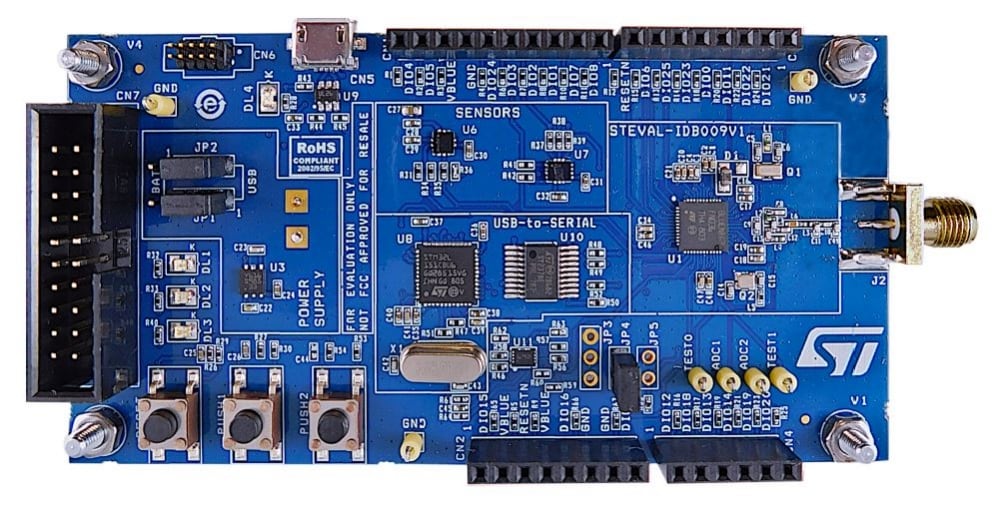

STEVAL-IDB009V1

Overview

The STEVAL-IDB009V1 evaluation platform is based on the BlueNRG-248 (QFN48), an on-chip Bluetooth® low energy ^system with 256 KB Flash and 24 KB RAM. The BlueNRG-2 chip is compatible with the Bluetooth® ^Low Energy Technology v5.0 specification and supports master, slave and simultaneous master-slave roles, as well as the Bluetooth Low Energy extended data length feature.

STEVAL-IDB009V1 also provides a set of hardware resources for implementing a wide range of application scenarios: sensor data (accelerometer, pressure and temperature sensors), remote control (buttons and LEDs) and debugging message management via USB Virtual COM. Three power options (USB only, battery only, and extended power plus USB) provide high flexibility for application development and testing.

Main features

Bluetooth® low energy technology board based on BlueNRG-248 (QFN48) ultra-low power system-on- ^chip
Related BlueNRG-2 Development Kit package includes firmware and documentation
Achievable up to +8 dBm output power (at antenna connector)
Excellent receiver sensitivity (-88 dBm)
Ultra-low power consumption: 7.7 mA RX and 8.2 mA TX at +0 dBm
Compatible with Bluetooth® ^Low Energy technology v5.0: supports master, slave and simultaneous master-slave roles, and Bluetooth Low Energy extended data length feature
SMA connector for antenna or measuring equipment

3 user LEDs
2 user buttons
3D digital accelerometer and 3D digital gyroscope
MEMS air pressure sensor
Passed WEEE certification
Passed RoHS certification
