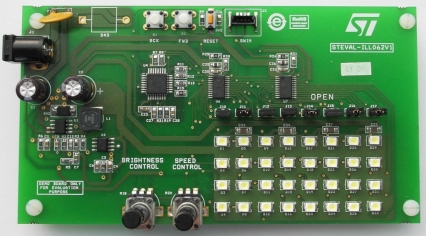

The STEVAL-ILL062V1 evaluation board is a high brightness LED array driver application based on the 16 channel, constant current LED sink driver STP16CPC26 from STMicroelectronics.
The LED driver is configured and controlled through an 8-bit STM8S microcontroller via SPI interface.
The industrial-grade L7981D DC-DC converter provides the voltages and power for the overall functioning of the board.
