75 W CNC Constant Current LED Driver Reference Design

STEVAL-LLL004V1

Overview

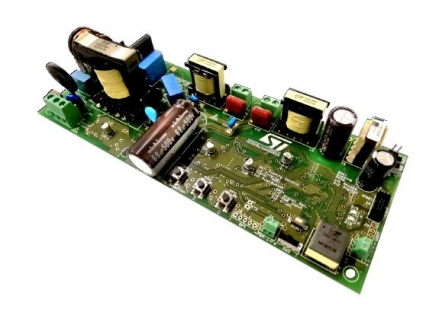

The STEVAL-LLL004V1 digitally controlled constant current LED driver reference design features a PFC stage and two DC-DC converters designed to work in transition mode (TM) for optimal efficiency.

The LED driver can deliver 75 W output power and implements both analog and digital techniques for flicker free dimming down to 0.5% of the maximum brightness level. The board features high efficiency, a very high power factor above 0.97, and a low THD across wide input voltage and load conditions, thanks to the high performance ST power products and the advanced algorithms running on the 32-bit STM32F0 microcontroller.

Main features

Wide input voltage range 85 – 265 V_AC
Transition Mode PFC
Two constant current outputs working in transition mode based on different topologies:
- Buck topology
- Inverse buck topology
Output current: 500 mA ±2.5%
- Number of LEDs connected at output: 16 – 24 white LEDs (3.3 V each)
PFC > 0.97 and THD AC
Peak Efficiency at maximum load ≅ 90%

Comprehensive safety protections:
- Open/no-load circuit protection
- Short-/overload circuit protection
Soft start implementation
LED dimming range: 0.5% to 100%
- Analog dimming
- Digital dimming
Dimming control options:
- Push button
- 0-10 V input
Meets EN55022 Class B
WEEE and RoHS compliant
