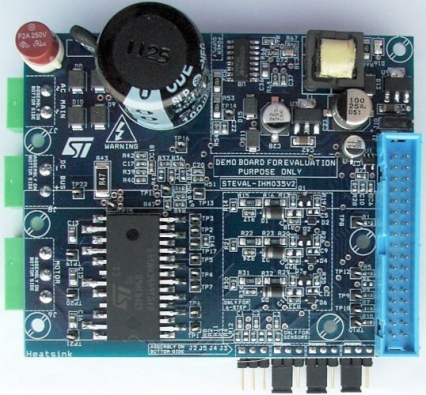

Three-phase high voltage inverter power board for FOC and scalar motor control based on STGIPN3H60 (SLLIMM™-nano)

STEVAL-IHM035V2

Overview

The STEVAL-IHM035V2 is designed to drive a high voltage/low power 3-phase brushless motor, either synchronous or asynchronous (PMSM and ACIM). It provides a compact solution in terms of size and efficient power dissipation, thanks to the ST IPM STGIPN3H60 (SLLIMM™-nano). With the on-board MC-connector, the demonstration board can also be interfaced with any ST MCU control board in order to implement a complete motor drive.

Main features

Nominal power: up to 100 W
Compatible with 3.3 V and 5 V control board
Single shunt resistor for current reading
On-board temperature sensor
Overcurrent protection with boost/disabling capability
For six-step drives:
- Current limitation/regulation network
- BEMF detection network
MC connector
Compatible with sinusoidal and trapezoidal control
RoHS compliant
