RDP2041BOARD: P2041 QorIQ Reference Design Board

Overview

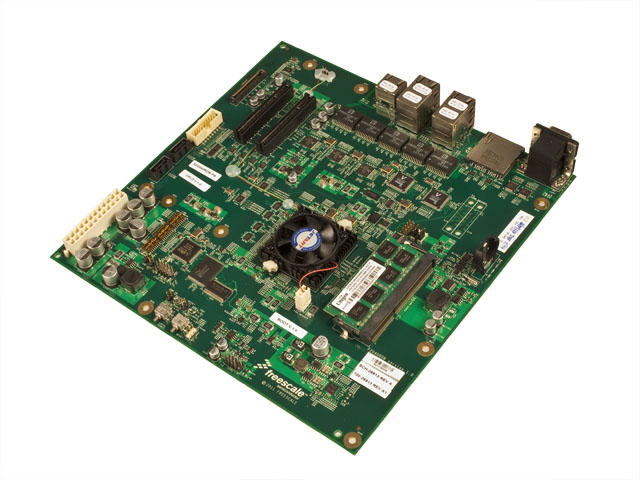

The NXP P2041RDB is a compact (micro-ATX), highly integrated reference design board based on the quad-core P2041 device.

With its 1.5 GHz P2041 and rich I/O portfolio, the board is primarily targeted for evaluation of the P2041 and P2040 in networking and Ethernet applications such as control plane and hybrid control plane/data plane in switches, routers, base station network interfaces cards, aerospace and defense, multifunction printers, and factory automation.

MoreCollapse

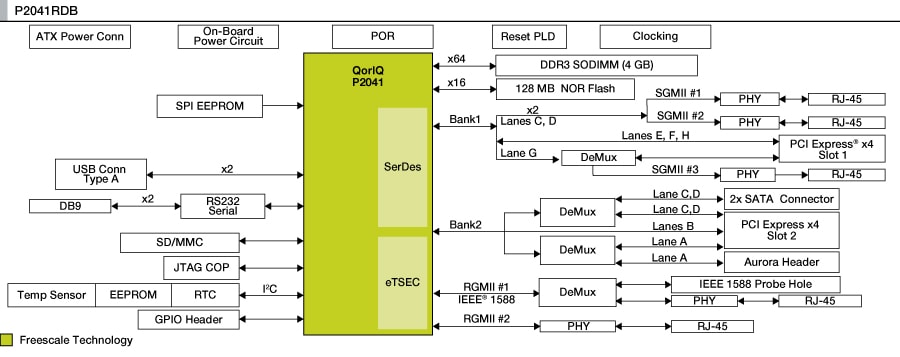

Blockdiagram

Design Files

Printed Circuit Board and Circuit Diagram: Design File for P2041RDB

Documentation

P2041 Reference Design Board
