Evaluation board for the IO-Link transceiver device L6362A

STEVAL-IFP017V3

Overview

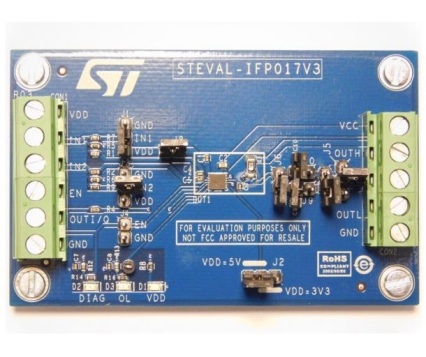

The STEVAL-IFP017V3 is an evaluation board designed to analyze the features of L6362A, including fast demagnetization, reverse polarity, overload, overtemperature, ground and supply open wire protections.

The highly robust design of the L6362A allows the STEVAL-IFP017V3 to meet IEC 61000-4-4 (burst), IEC 61000-4-2 (ESD) and EN60947-5-2/IEC 61000-4-5 (surge) without additional external components.
The STEVAL-IFP017V3 offers dedicated input and output screw connectors to facilitate easy and flexible connections for user requirements. The on-board red and green LEDs signal the IC status.
On the STEVAL-IFP017V3, the exposed pad of the L6362A is connected to an electrically floating copper area which acts as a heatsink.

Main features

Operating voltage from 7 to 36 V
Operating current up to 300 mA
Configurable in push-pull, high-side or low-side
Overcurrent protection with cutoff function
Overtemperature protection
Suitable to drive R, L and C loads
Delayed cutoff for quick charging of capacitive loads

Able to handle up to 500 mJ inductive loads
Full reverse polarity protection on V_CC, GND, OUTH, OUTL and I/Q pins
Green device status LED (ON or OFF)
Red diagnostic LEDs for:
- cutoff and overtemperature events
- overload
Supports COM1, COM2 and COM3
Meets IEC 61000-4-4 (burst), IEC 61000-4-2 (ESD) and EN60947-5-2/IEC 61000-4-5 (surge) requirements
RoHS compliant
